Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Remove the upper radiator support baffle. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT -- UPPER .
  3. Remove the bolts (2) from the hood release latch (1).

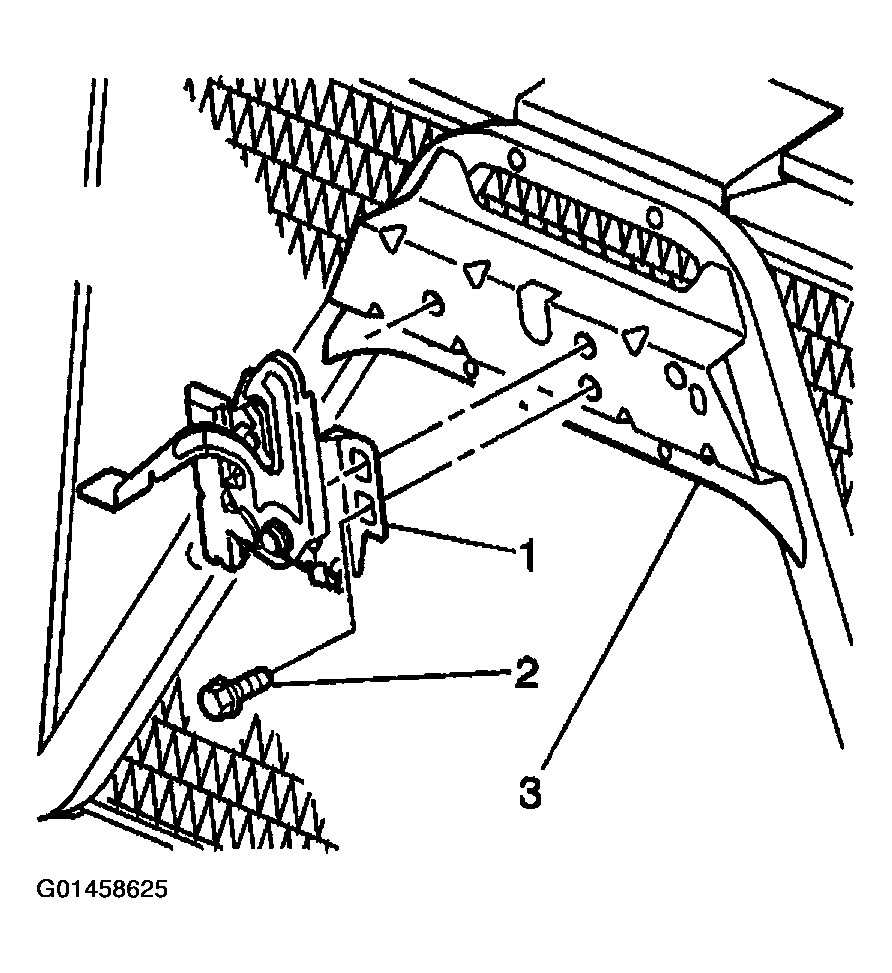

    Fig 1: Removing Procedure Hood Latch
    G01458625Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the hood release cable end from the latch.
  5. Remove the hood release latch from the vehicle.
    Fig 2: Removing Hood Release Cable
    G01458626Courtesy of GENERAL MOTORS CORP.
