Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the underhood lamp harness electrical connector from the lamp assembly.
  3. Remove the lamp harness fasteners from the underhood.
  4. Depress the tab in order to remove the underhood lamp assembly.
  5. Use the J 38778  in order to disengage the push-in retainers.

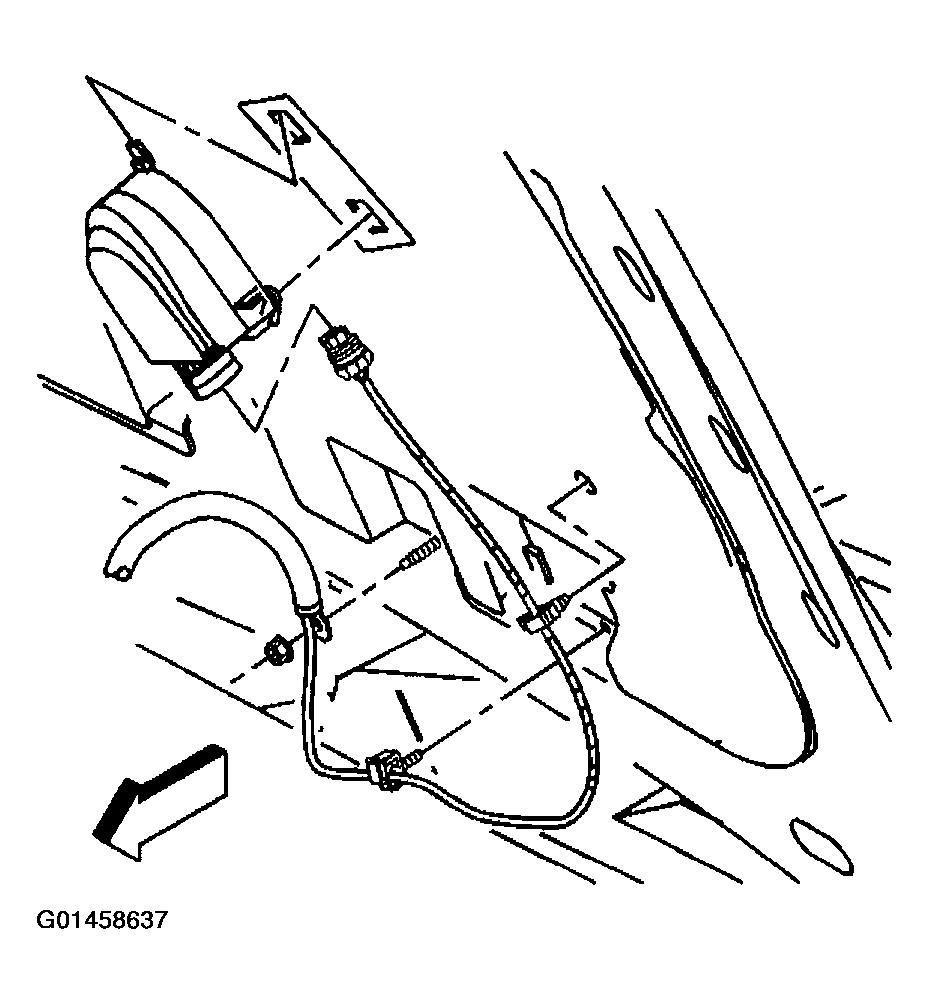

    Fig 1: Disconnecting Underhood Lamp Connector
    G01458637Courtesy of GENERAL MOTORS CORP.
  6. Gently pull on the hood insulator (1) in the center to slide out from behind the holding tabs (4). The insulator has a crease on the hood side to facilitate folding.

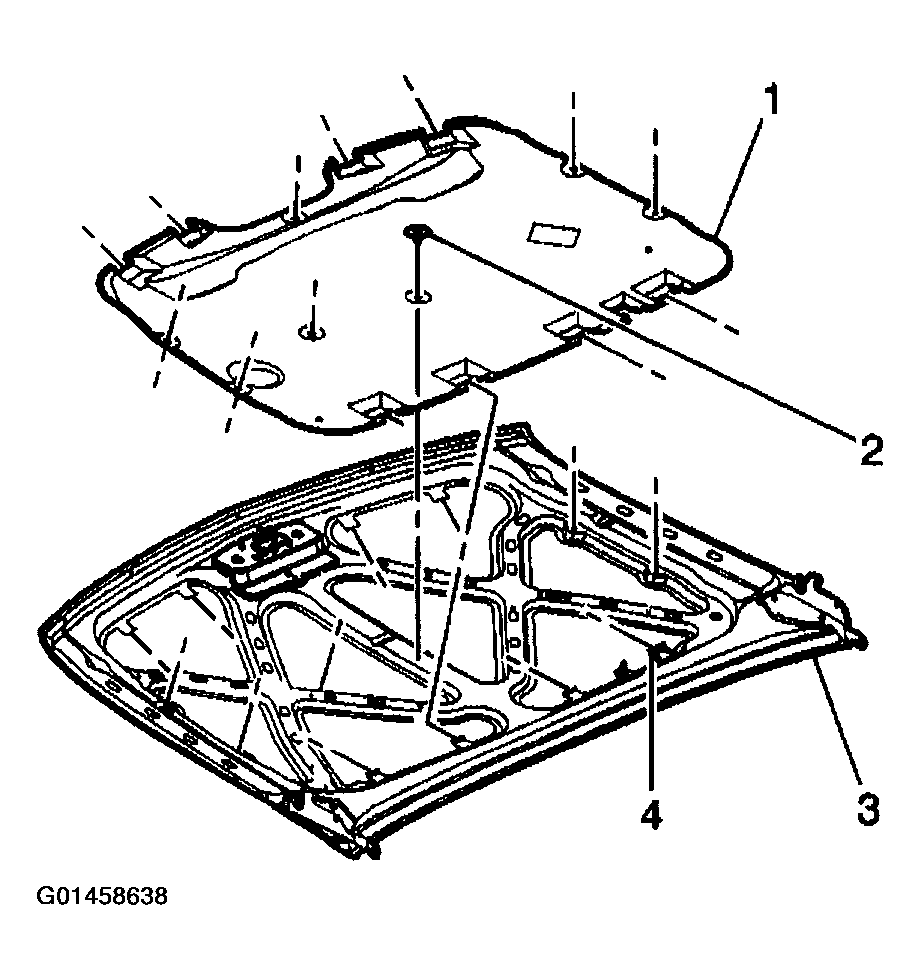

    Fig 2: Replacing Hood Insulator
    G01458638Courtesy of GENERAL MOTORS CORP.
