Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal Injury.
  1. Raise and support the hood.
  2. Remove the hinge to the hood bolts.
  3. Remove the hinge from the hood.

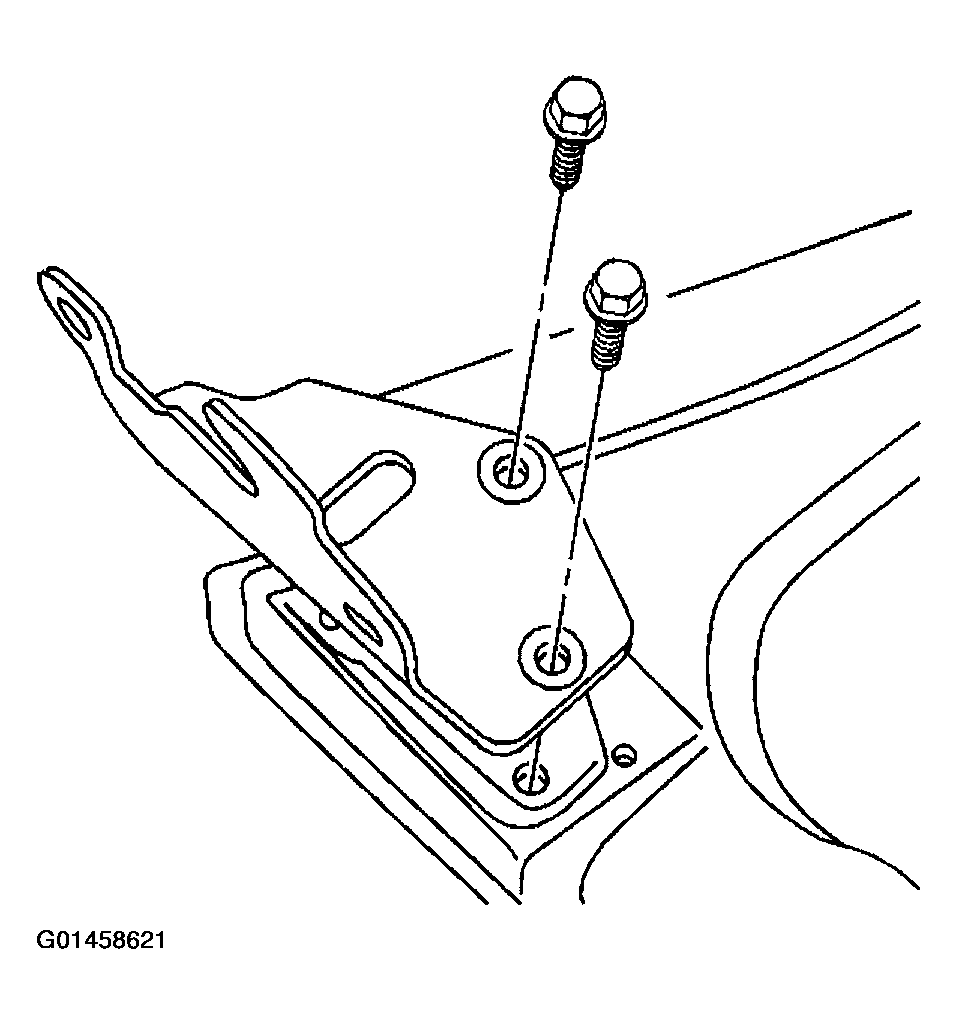

    Fig 1: Removing Procedure Hood Hinge
    G01458621Courtesy of GENERAL MOTORS CORP.
