Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front hood bumper by turning the front hood bumper (1) out counterclockwise.
  2. Remove the side hood bumper by sliding the side hood bumper (2) rearward and pulling up.

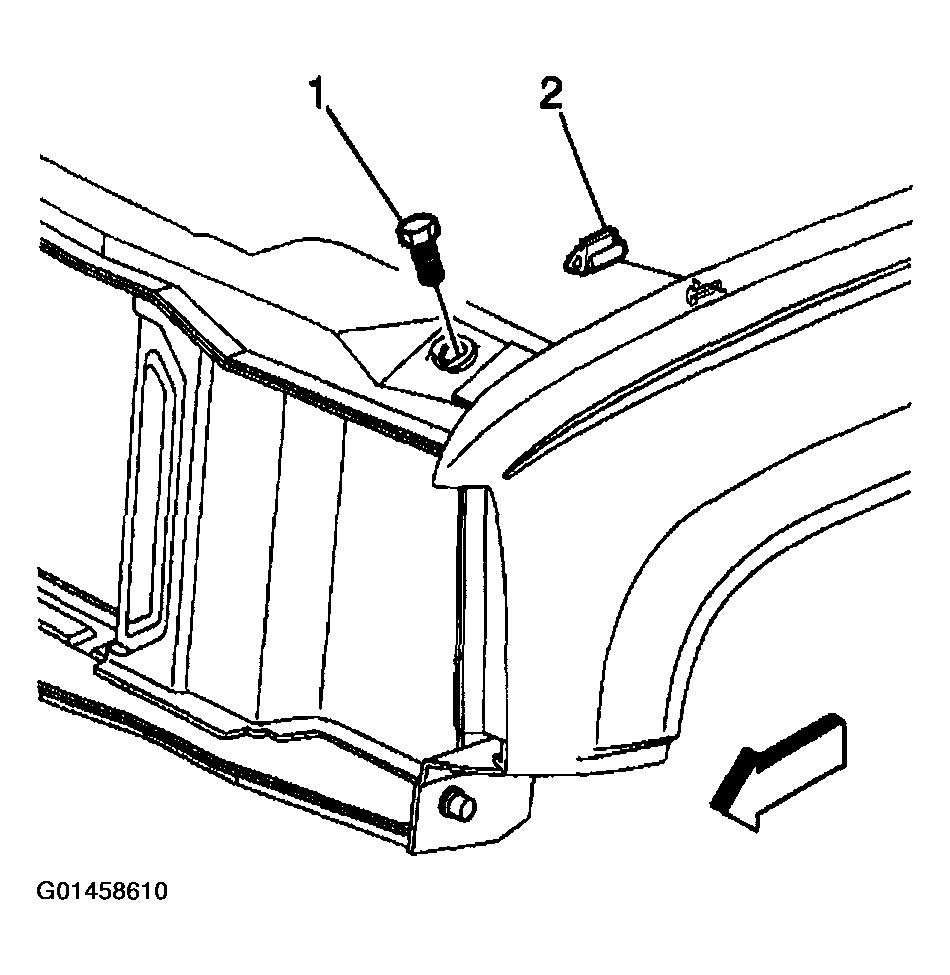

    Fig 1: Removing Procedure Hood Bumper
    G01458610Courtesy of GENERAL MOTORS CORP.
