Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side hood bumper by pushing down and sliding the side hood bumper (2) forward.
  2. Install the front hood bumper (1) by turning the front hood bumper in clockwise until the hood closes flush with the fender.

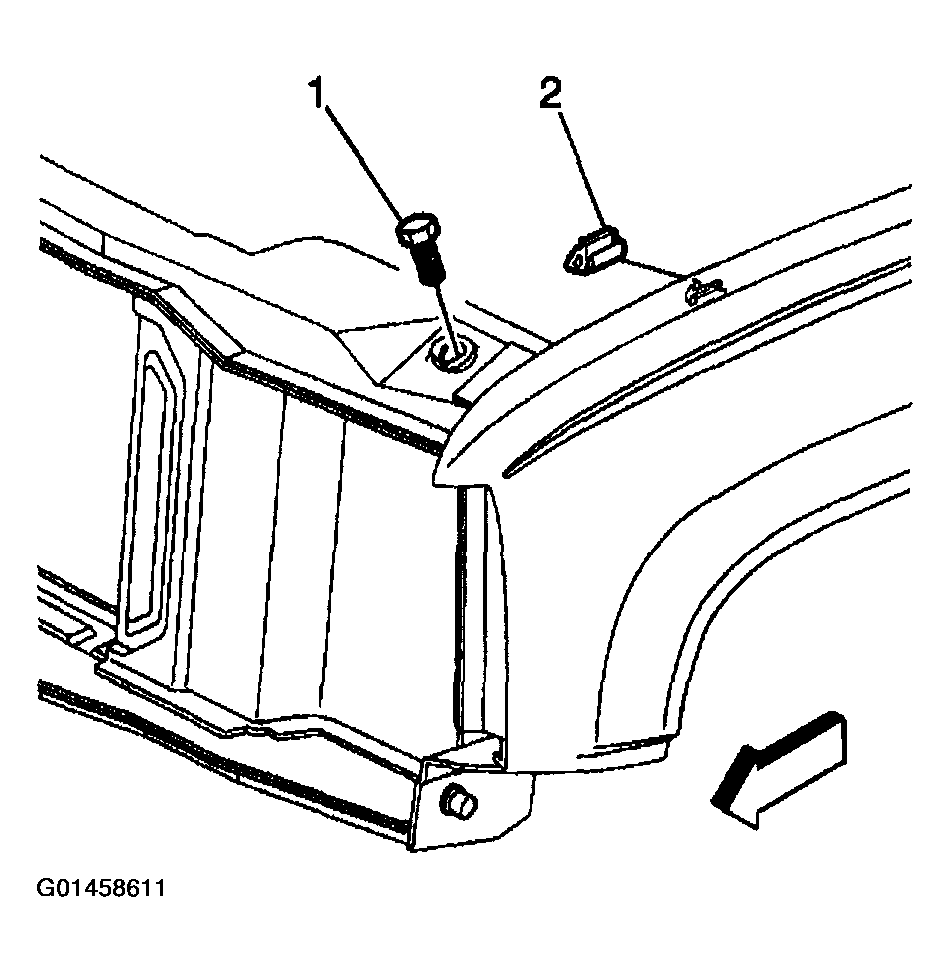

    Fig 1: Installing Procedure Hood Bumper
    G01458611Courtesy of GENERAL MOTORS CORP.
