Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  2. Pull up in order to release the outboard air inlet grille panel clips.

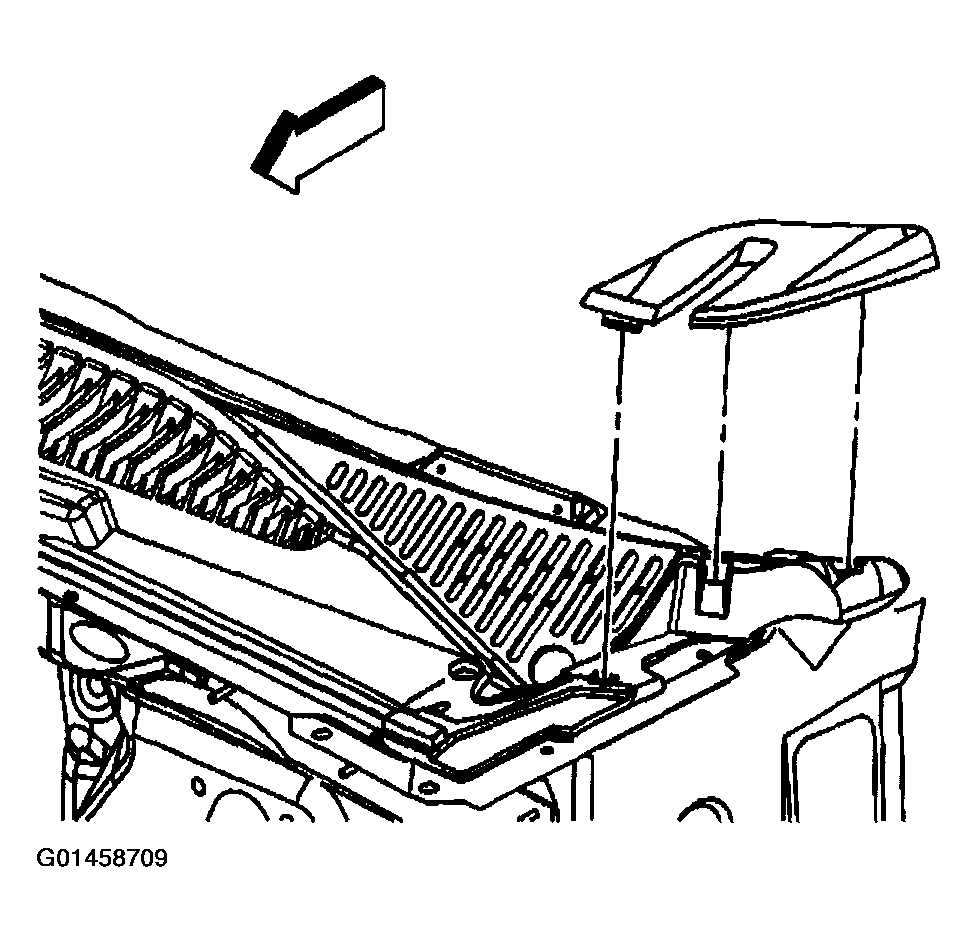

    Fig 1: Air Inlet Grille Panel Removing Procedure
    G01458709Courtesy of GENERAL MOTORS CORP.
  3. Remove the attaching clips running along the edges of the center air inlet grille panel.
  4. Remove the sheet metal screws on each end of the air inlet grille panel.
  5. Disconnect the windshield washer hose from the nozzle underneath the center air inlet grille panel.
  6. Remove the air inlet grille panel.

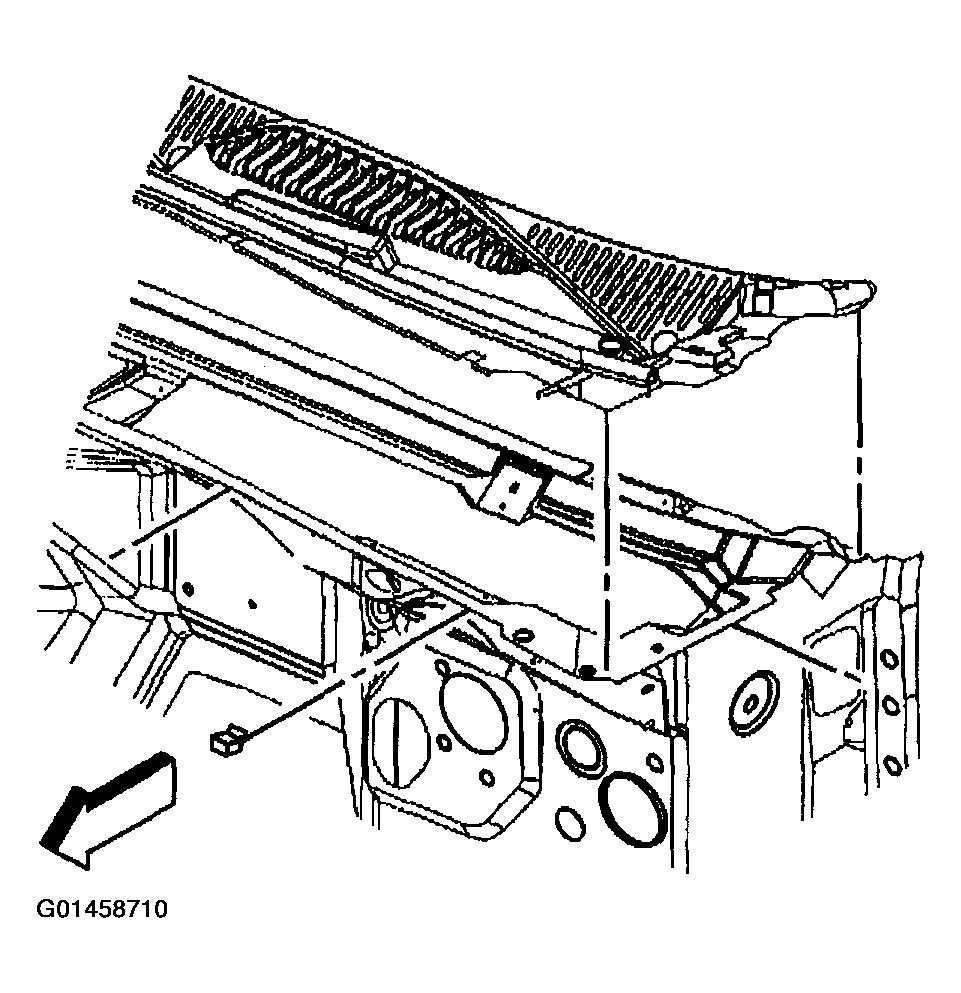

    Fig 2: Removing Air Inlet Grille Panel
    G01458710Courtesy of GENERAL MOTORS CORP.
