Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the windshield washer hose to the nozzle under the center air inlet grille panel.
  2. Position the air inlet grille panel to the vehicle and attach the clips to the edges of the center air inlet grille panel.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the sheet metal screws on each end of the air inlet grille panel.

    Tighten

    1. Tighten the sheet metal screws to 2 N.m (18 lb in).

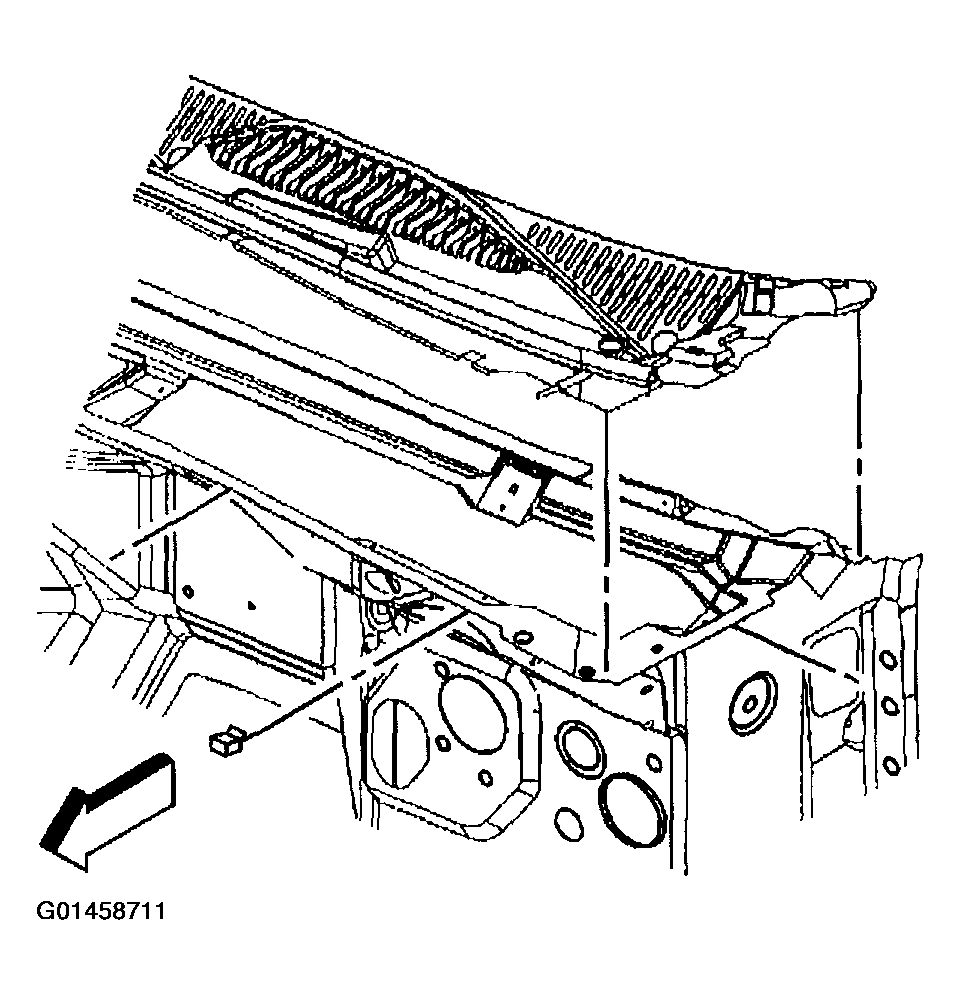

    Fig 1: Installing Air Inlet Grille Panel
    G01458711Courtesy of GENERAL MOTORS CORP.
  4. Align the outboard air inlet grille panel clips and press down in order to install.
  5. Install the wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.

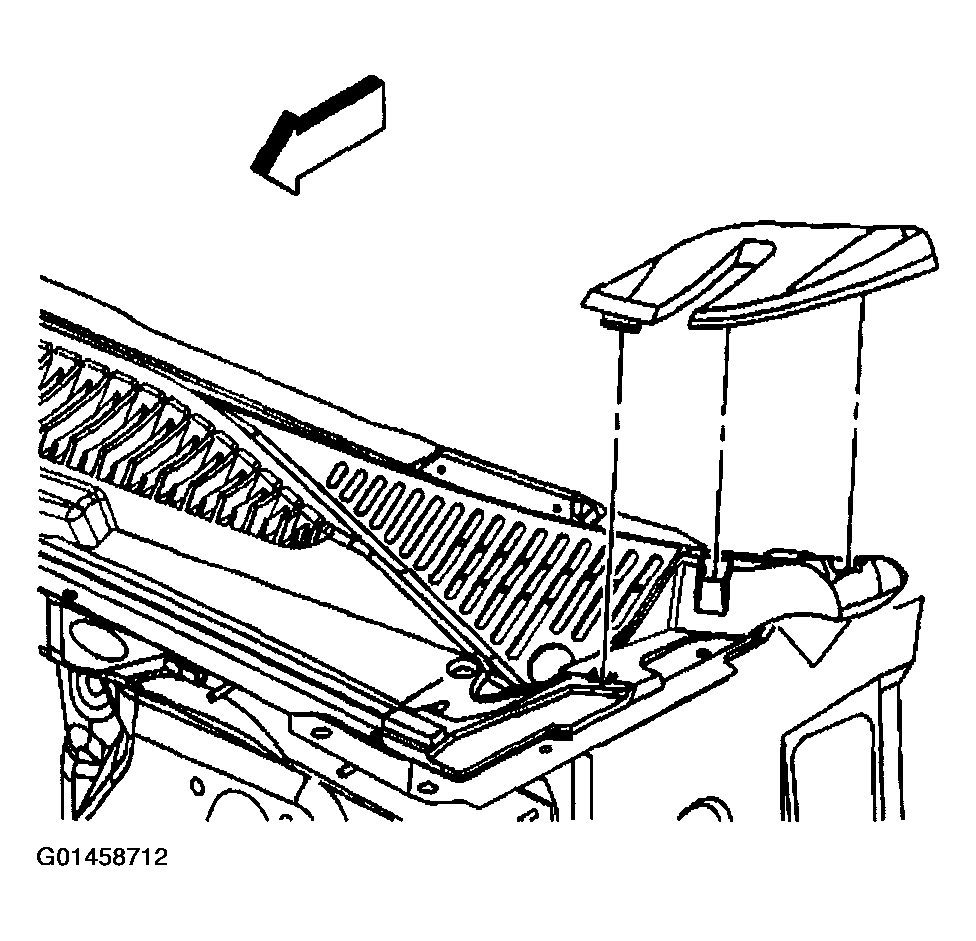

    Fig 2: Installing Wiper Arms
    G01458712Courtesy of GENERAL MOTORS CORP.
