Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bumper. Refer to BUMPER REPLACEMENT - REAR  .
  2. Remove the side molding push-pins.
  3. Release the step pad from the bumper by prying up on the step pad.
  4. Remove the step pad.

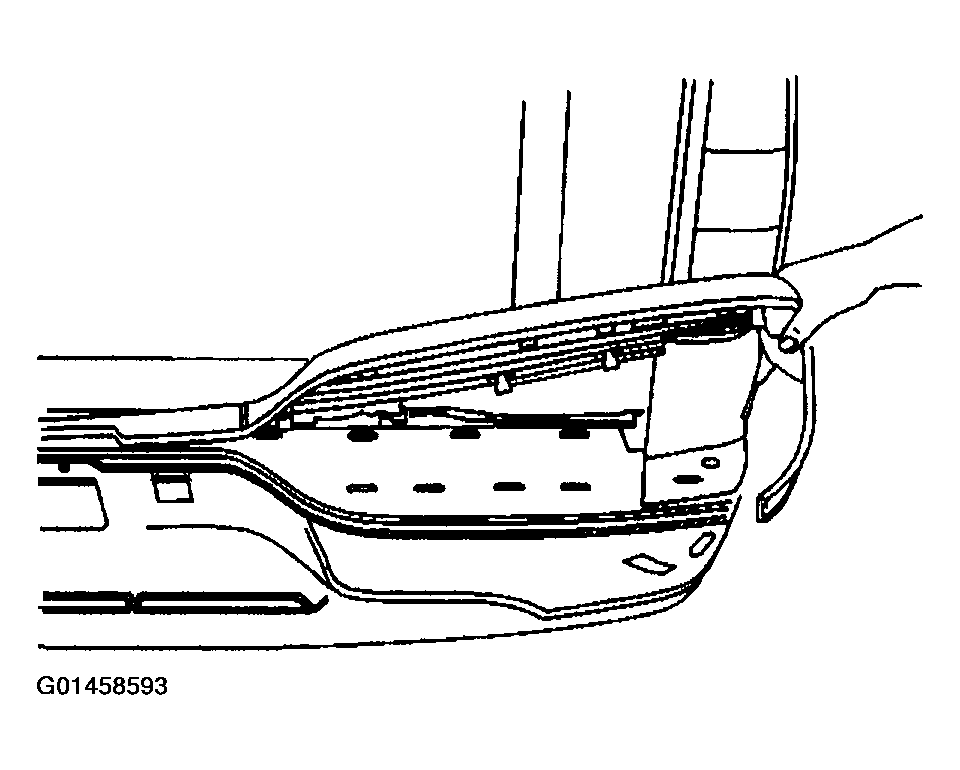

    5. Fig 1: Removing Step Pad
    G01458593Courtesy of GENERAL MOTORS CORP.
