Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the center step pad with the holes in the bumper.

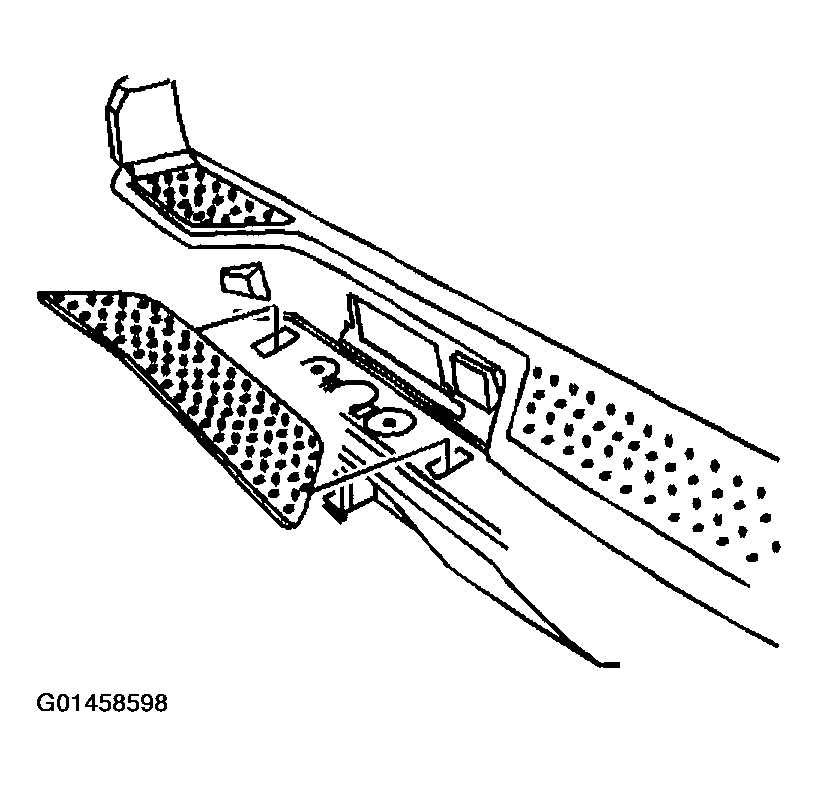

    2. Fig 1: Installing Step Pad To Vehicle
    G01458598Courtesy of GENERAL MOTORS CORP.
  2. Push firmly downward to fully seat the step pad retainers into the bumper.
