Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the top fascia retainers.
  2. Disconnect the license plate lamp harness.
  3. Raise and support the vehicle with suitable safety stands.
  4. Remove the push-pin retainers from the underside of the fascia.
  5. Remove the fascia from the impact bar.

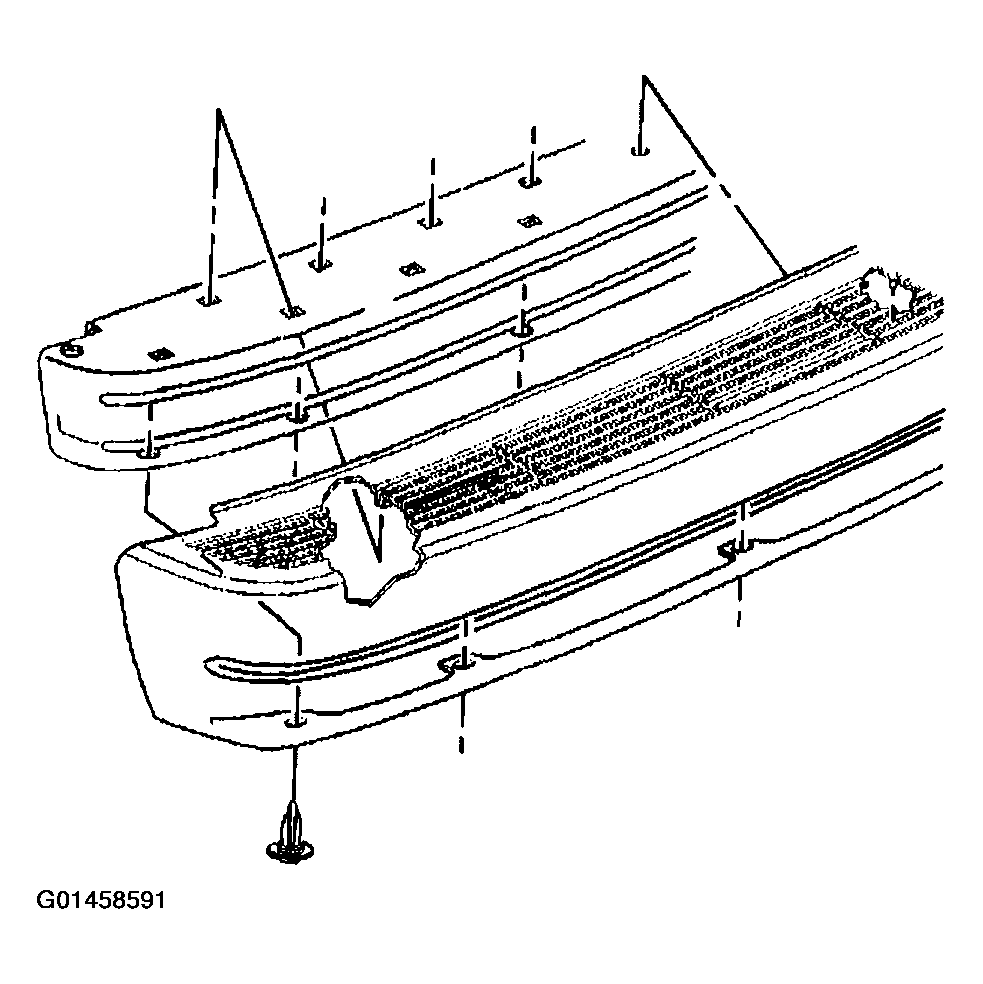

    6. Fig 1: Removing Fascia From Impact Bar
    G01458591Courtesy of GENERAL MOTORS CORP.
