Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the locator pin of the fascia to the hole in the impact bar.

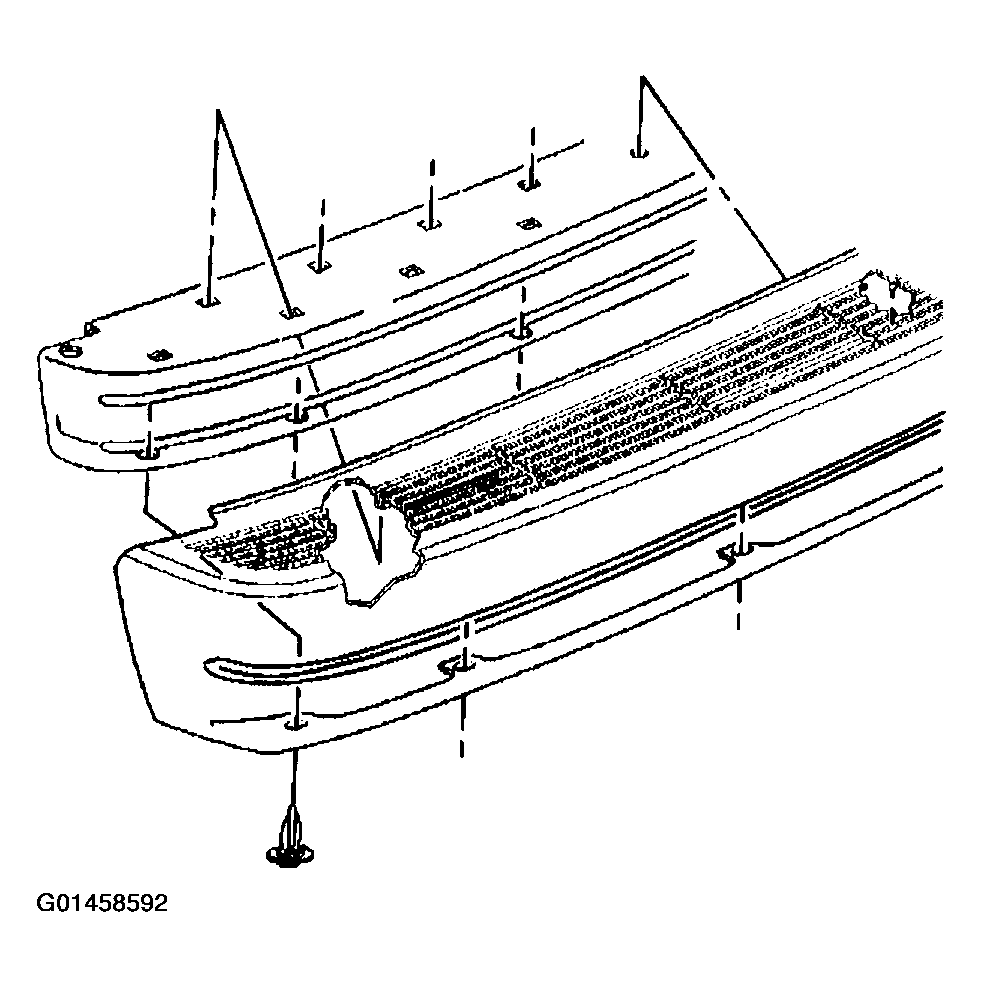

    2. Fig 1: Aligning Locator Pin Of Fascia To Hole In Impact Bar
    G01458592Courtesy of GENERAL MOTORS CORP.
  2. Press the push-pin retainers into the underside of the fascia.
  3. Remove the safety stands, and lower the vehicle.
  4. Connect the license plate lamp harness.
  5. Install the top fascia retainers.
