Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT (EXCEPT Z71) or FOG LAMP REPLACEMENT - FRONT (Z-71) in Lighting Systems.
  2. Remove the push-pins from the lower fascia.
  3. Remove the front lower fascia from the vehicle.

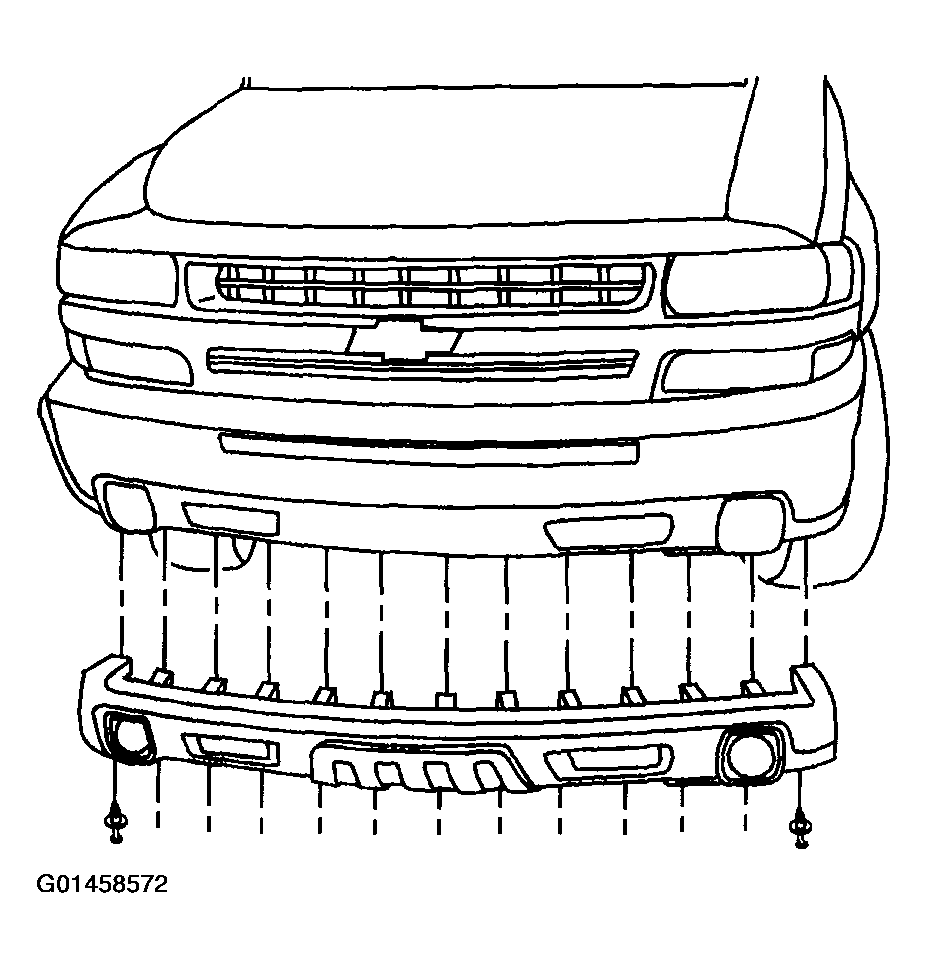

    4. Fig 1: Removing Front Lower Fascia From Vehicle
    G01458572Courtesy of GENERAL MOTORS CORP.
