Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front lower fascia to the vehicle.

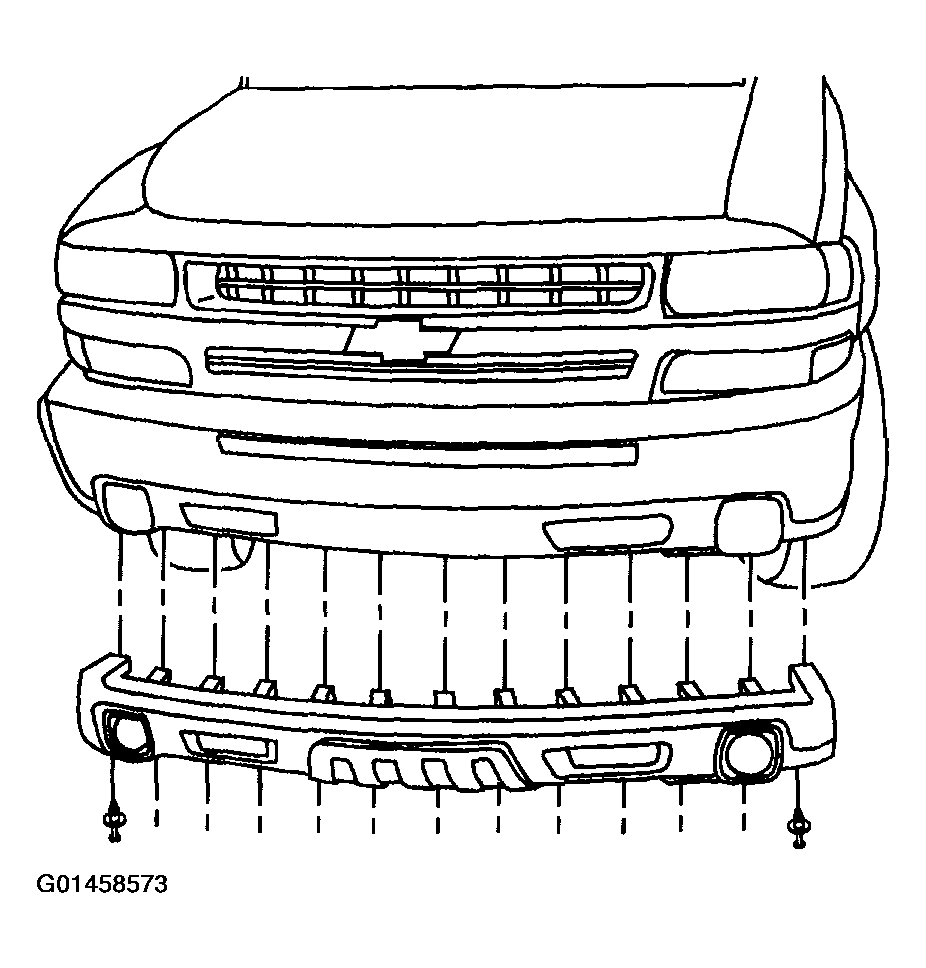

    2. Fig 1: Installing Front Lower Fascia To Vehicle
    G01458573Courtesy of GENERAL MOTORS CORP.
  2. Install the push-pins to the fascia.
  3. Install the front fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT (EXCEPT Z71) or FOG LAMP REPLACEMENT - FRONT (Z-71) in Lighting Systems.
