Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the license plate lamp harness.

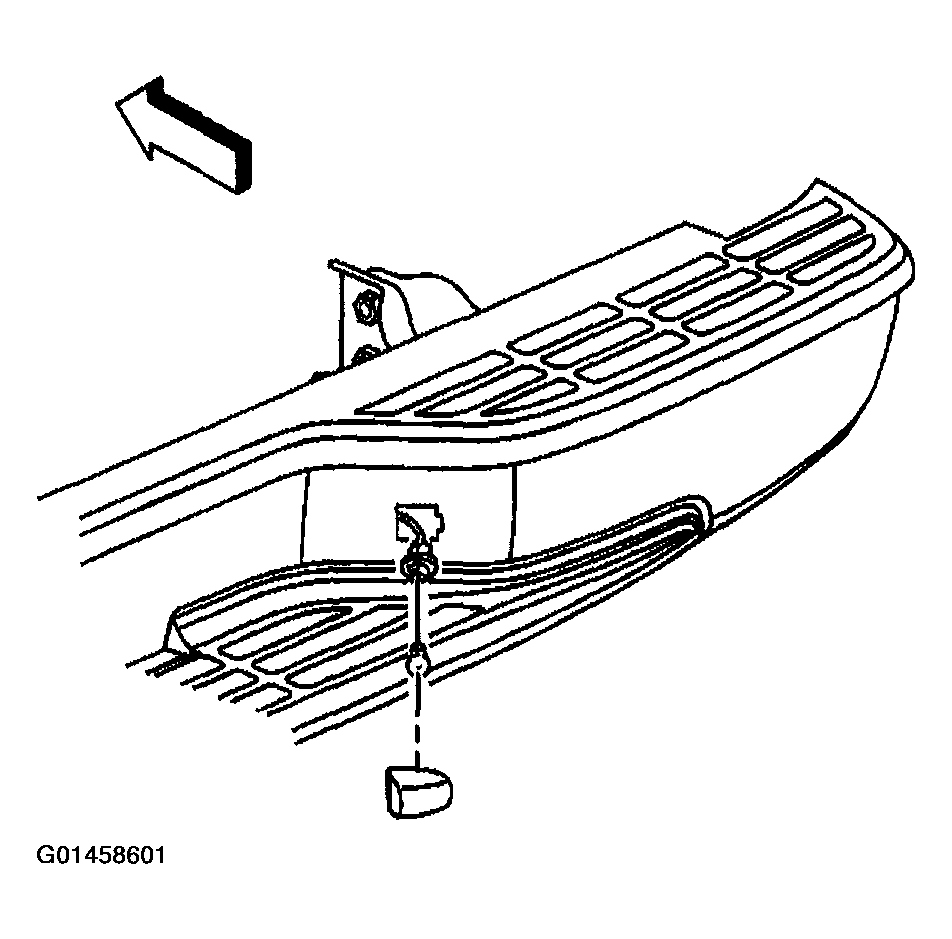

    2. Fig 1: Disconnecting License Plate Lamp Harness
    G01458601Courtesy of GENERAL MOTORS CORP.
  2. Remove the impact bar nut (1).

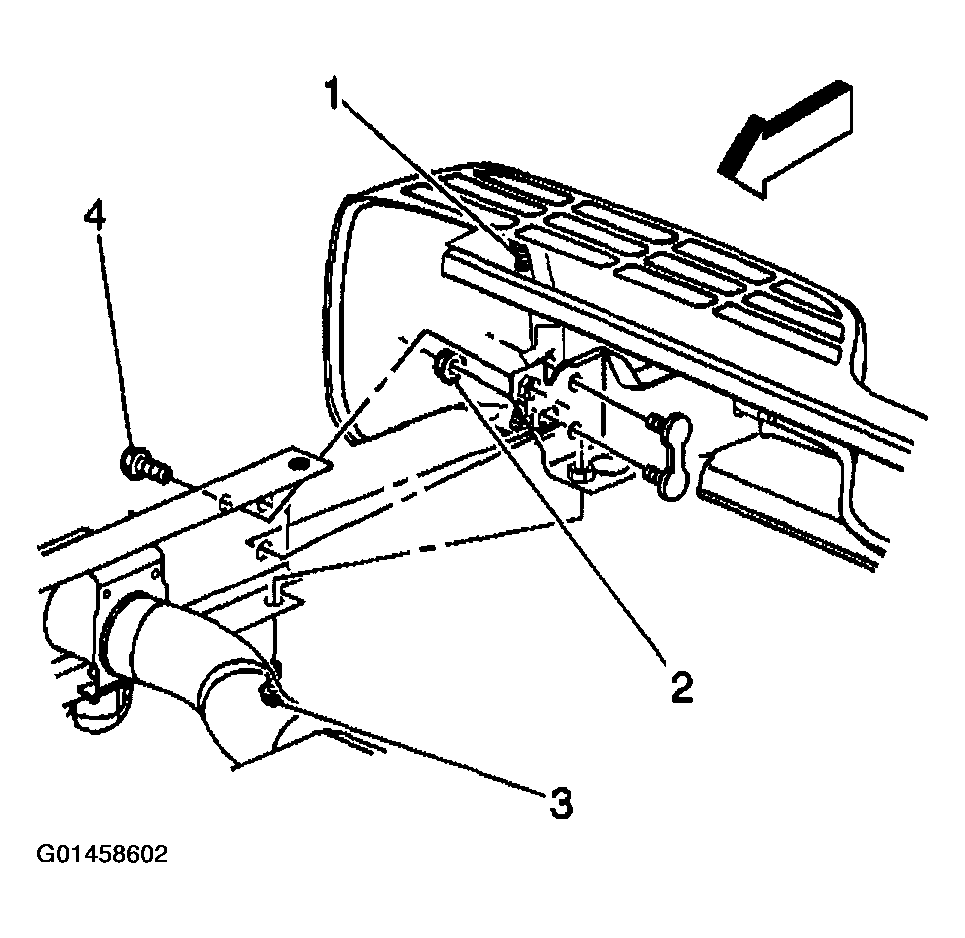

    3. Fig 2: Removing Rear Trailer Hitch To Bumper Bolts
    G01458602Courtesy of GENERAL MOTORS CORP.
  3. Remove the plate nuts (2).
  4. Remove the lower frame rail to bracket bolt (3).
  5. Remove the side frame rail to bracket bolt (4).
  6. Remove the rear trailer hitch to bumper bolts (1), if equipped.
  7. Remove the rear bumper from the vehicle.

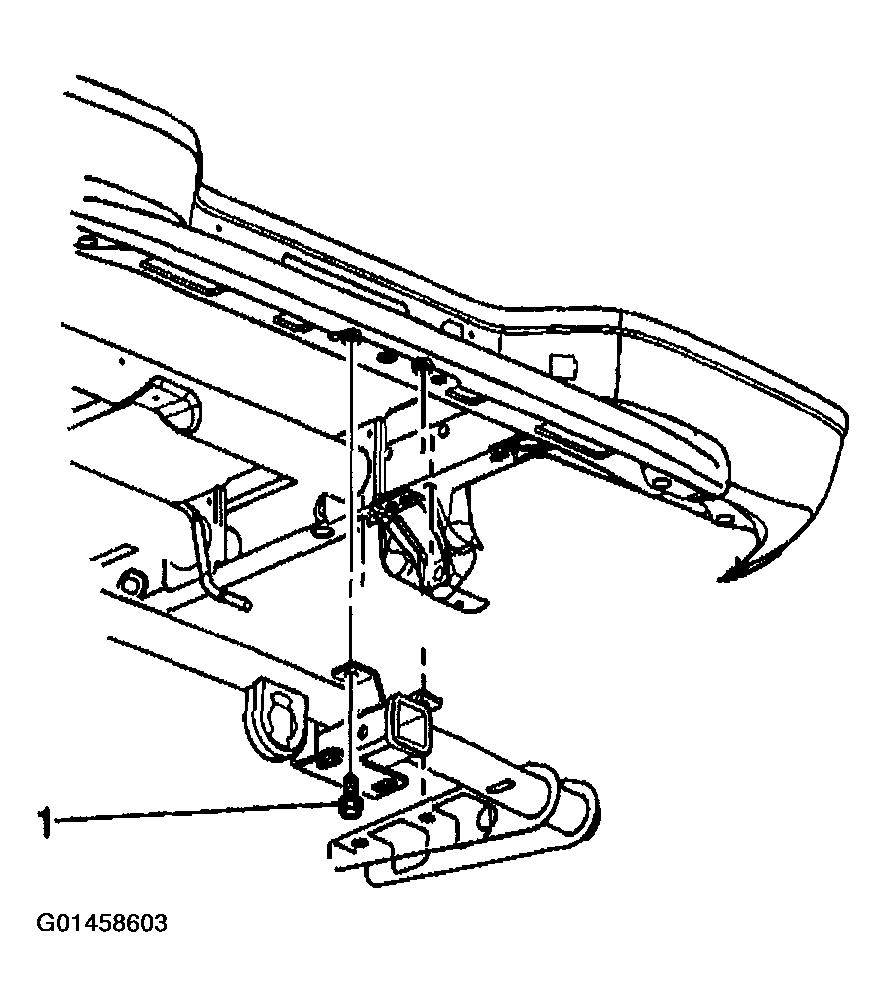

    8. Fig 3: Removing Rear Bumper From Vehicle
    G01458603Courtesy of GENERAL MOTORS CORP.
