Bracket Replacement - Front Bumper (2500)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all related panels and components.
  2. Remove the damaged bumper bracket.
  3. Visually inspect the frame and restore all damage to factory specifications using 3-dimensional measuring.

    Important:  If the vehicle is equipped with tow hooks, discard original fasteners.

  4. Align the replacement bracket lower bolt holes with tow hook mounting locations and install the bolts (1) supplied.

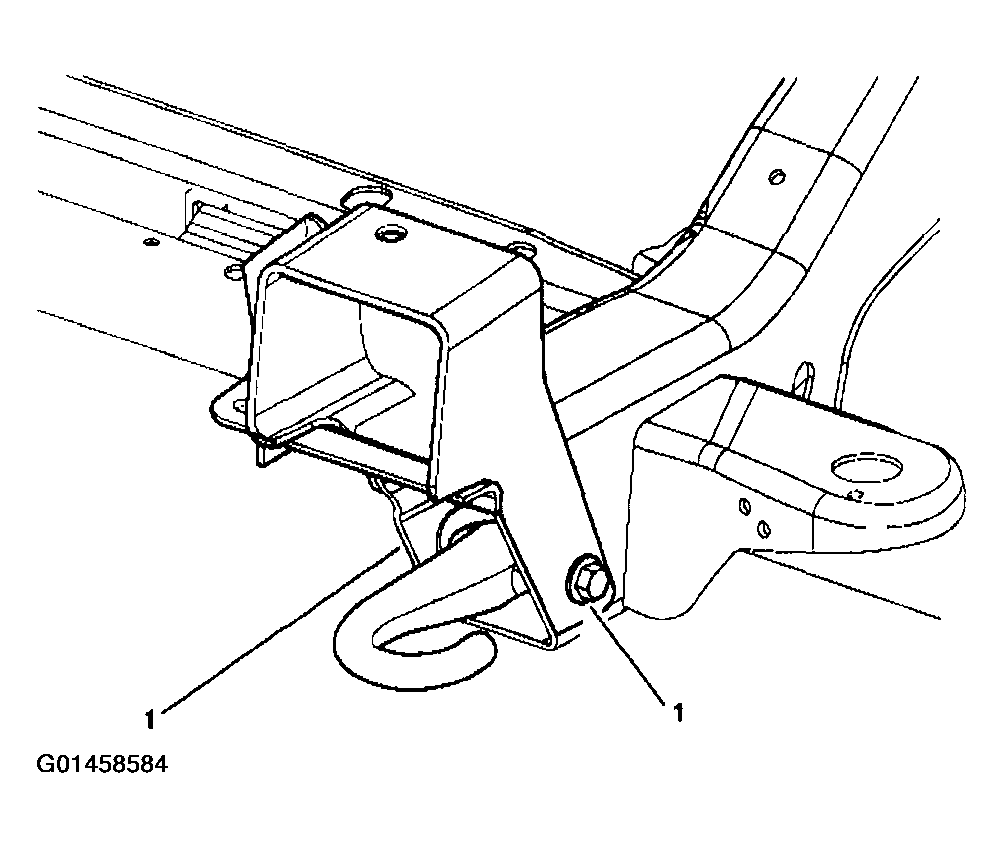

    5. Fig 1: Aligning Bracket Lower Bolt Holes With Tow Hook Mounting Locations
    G01458584Courtesy of GENERAL MOTORS CORP.
  5. Align the front edge of bracket with front edge of frame and mark upper bolt locations (1) on frame.

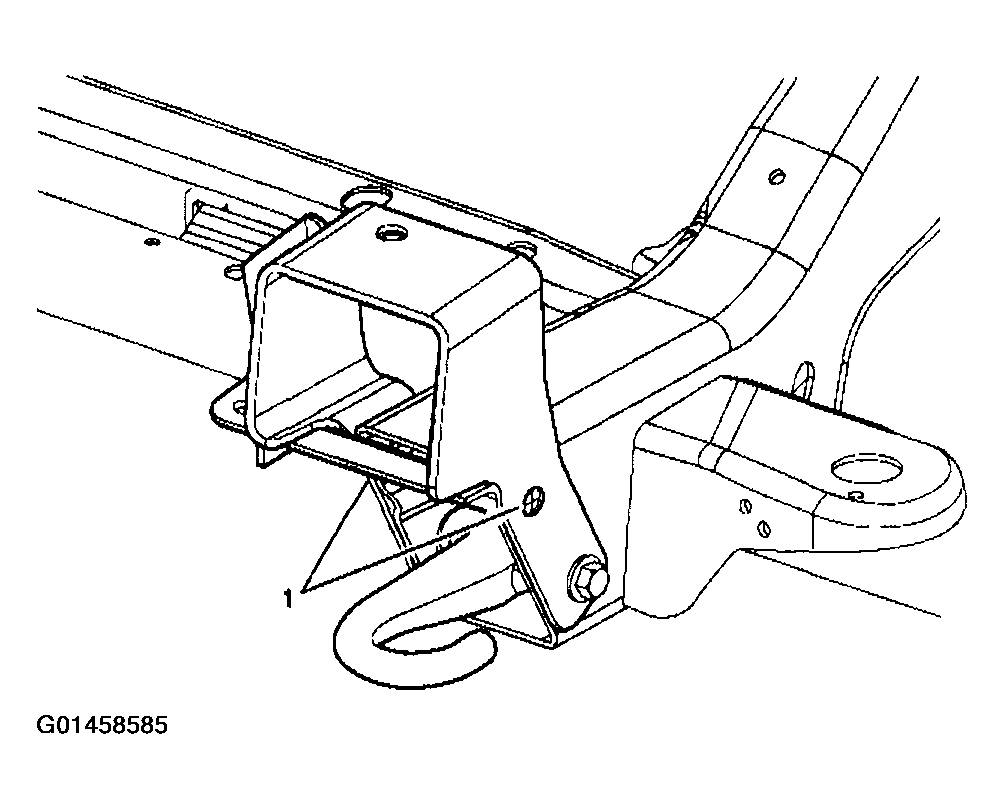

    6. Fig 2: Aligning Front Edge Of Bracket With Front Edge Of Frame
    G01458585Courtesy of GENERAL MOTORS CORP.
  6. Rotate the bracket forward and drill 13 mm (1/2 in) holes in frame at upper bolt locations.
  7. Rotate the bracket back into position.

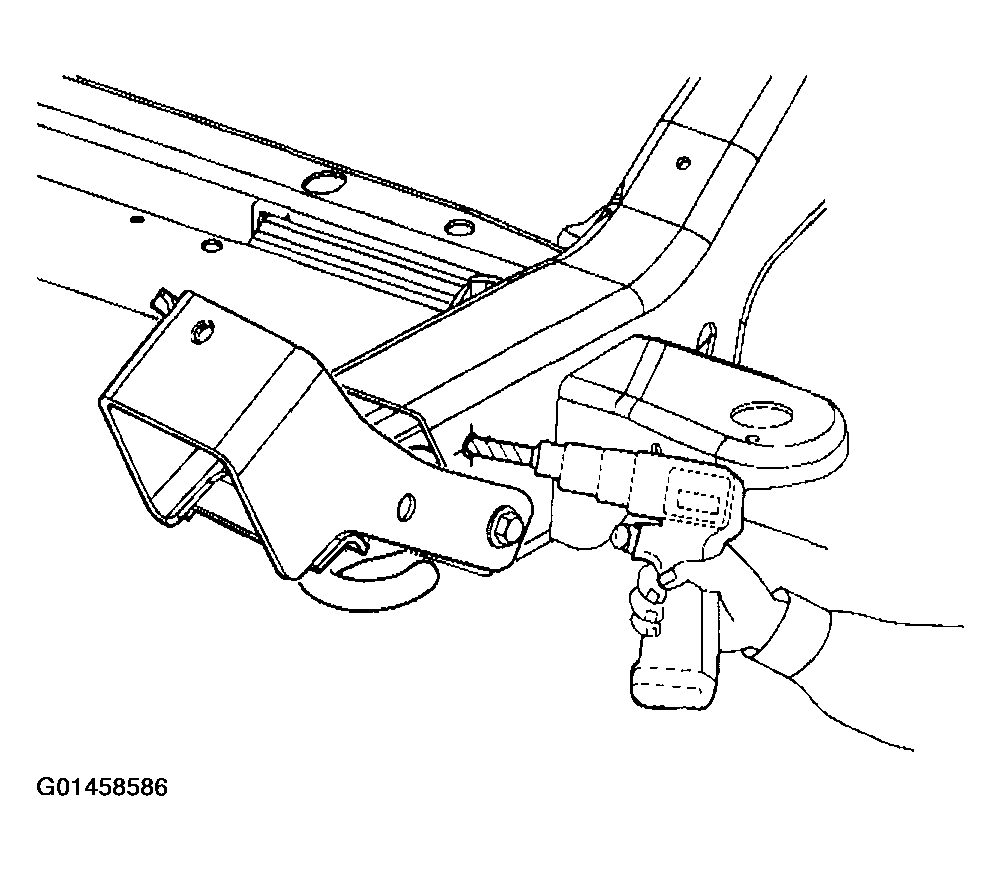

    8. Fig 3: Rotating Bracket Forward And Drilling Holes In Frame At Upper Bolt Locations
    G01458586Courtesy of GENERAL MOTORS CORP.
  8. Install the fasteners supplied.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    1. Tighten the torque bracket fasteners to 70 N.m (52 lb ft).

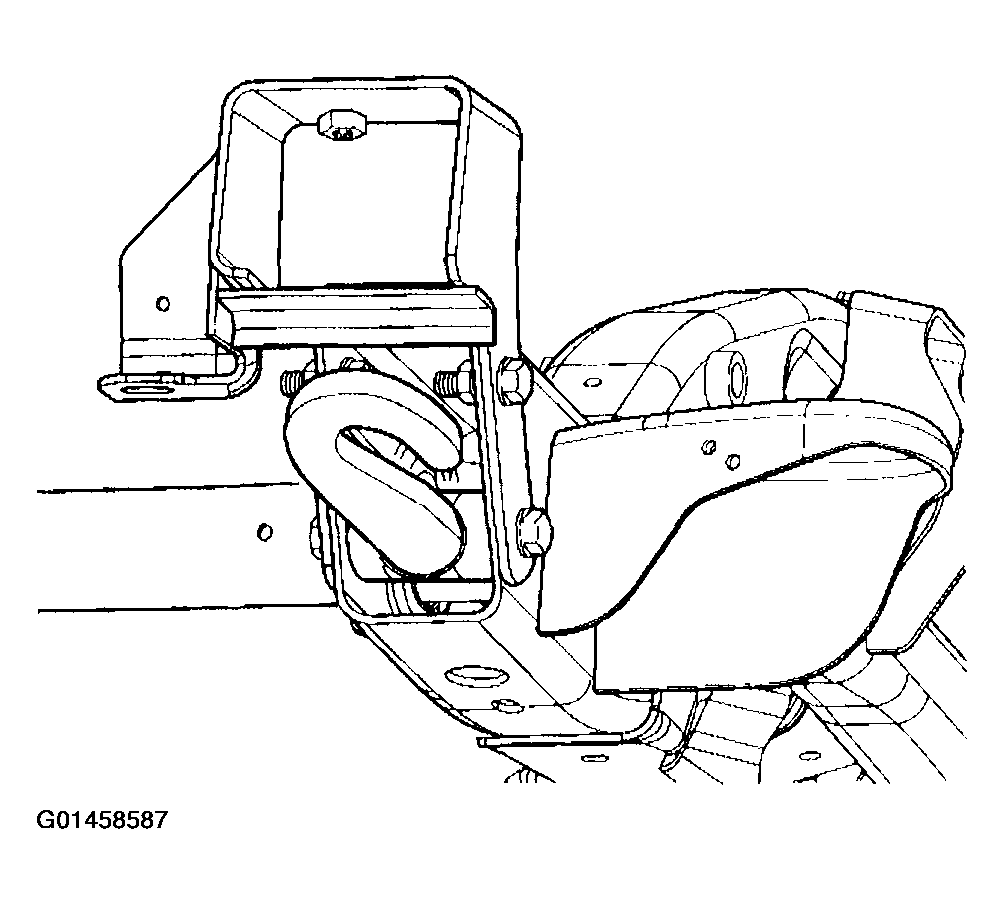

    9. Fig 4: Installing Torque Bracket Fasteners Supplied
    G01458587Courtesy of GENERAL MOTORS CORP.
