Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Disconnect the fog lamp electrical connectors, if equipped.
  3. Remove the fog lamps, if equipped. Refer to FOG LAMP REPLACEMENT - FRONT (EXCEPT Z71) or FOG LAMP REPLACEMENT - FRONT (Z-71) in Lighting Systems.
  4. Loosen the center studs of the push-pins on the air deflector with a flat-bladed screwdriver.
  5. Remove the air deflector from the front bumper fascia.

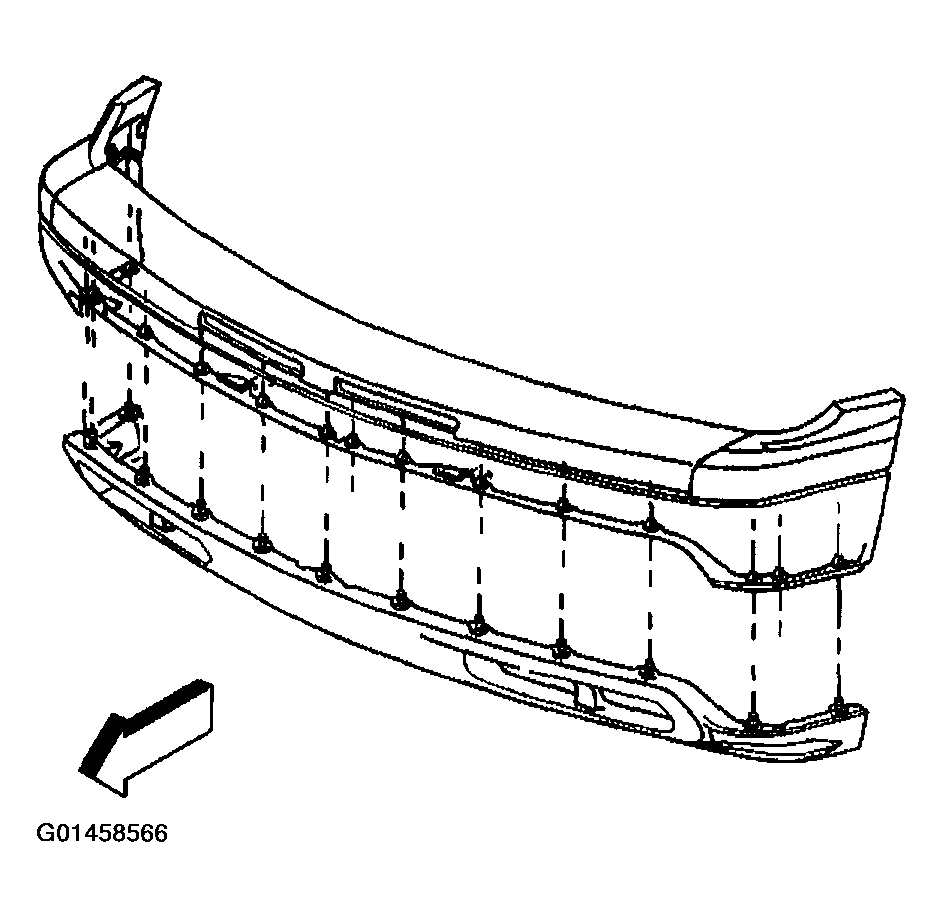

    6. Fig 1: Removing Air Deflector From Front Bumper Fascia
    G01458566Courtesy of GENERAL MOTORS CORP.
