Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air deflector onto the front bumper assembly.

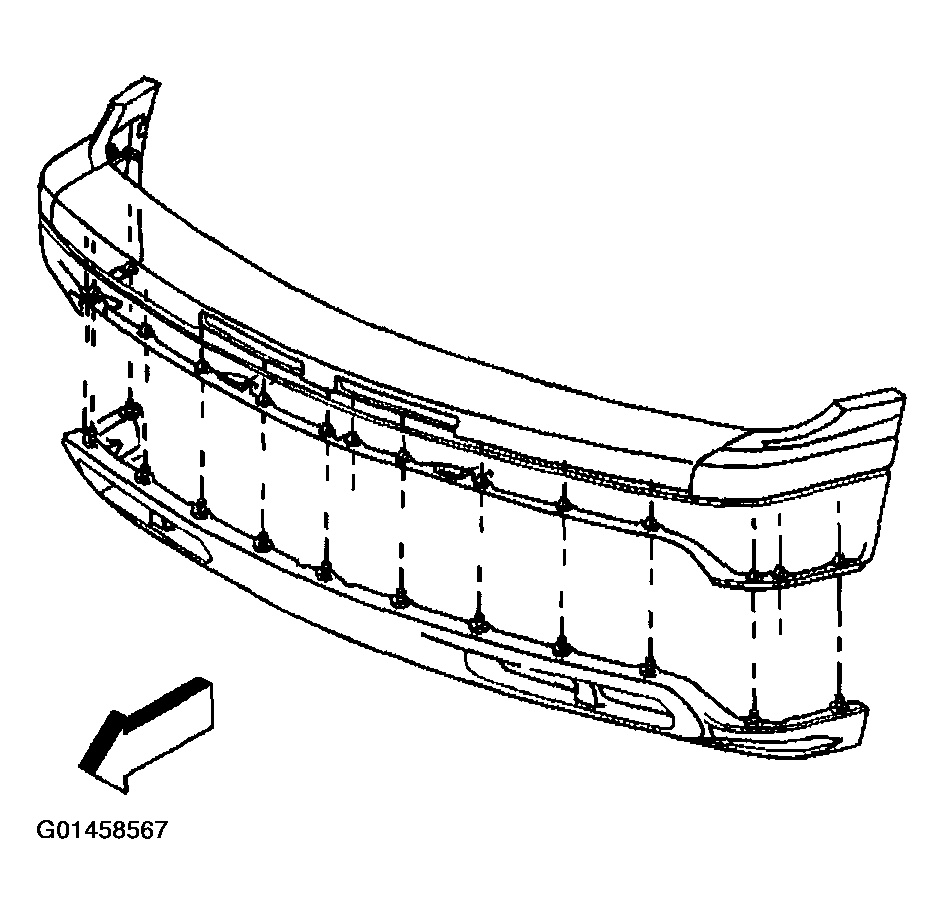

    2. Fig 1: Installing Air Deflector Onto Front Bumper Assembly
    G01458567Courtesy of GENERAL MOTORS CORP.
  2. Fasten the connection ends of the push-pins onto the front bumper deflector.
  3. Install the fog lamps, if equipped. Refer to FOG LAMP REPLACEMENT - FRONT (EXCEPT Z71) or FOG LAMP REPLACEMENT - FRONT (Z-71) in Lighting Systems.
  4. Connect the fog lamp electrical connectors, if equipped.
  5. Lower the vehicle.
