Interior Lights Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

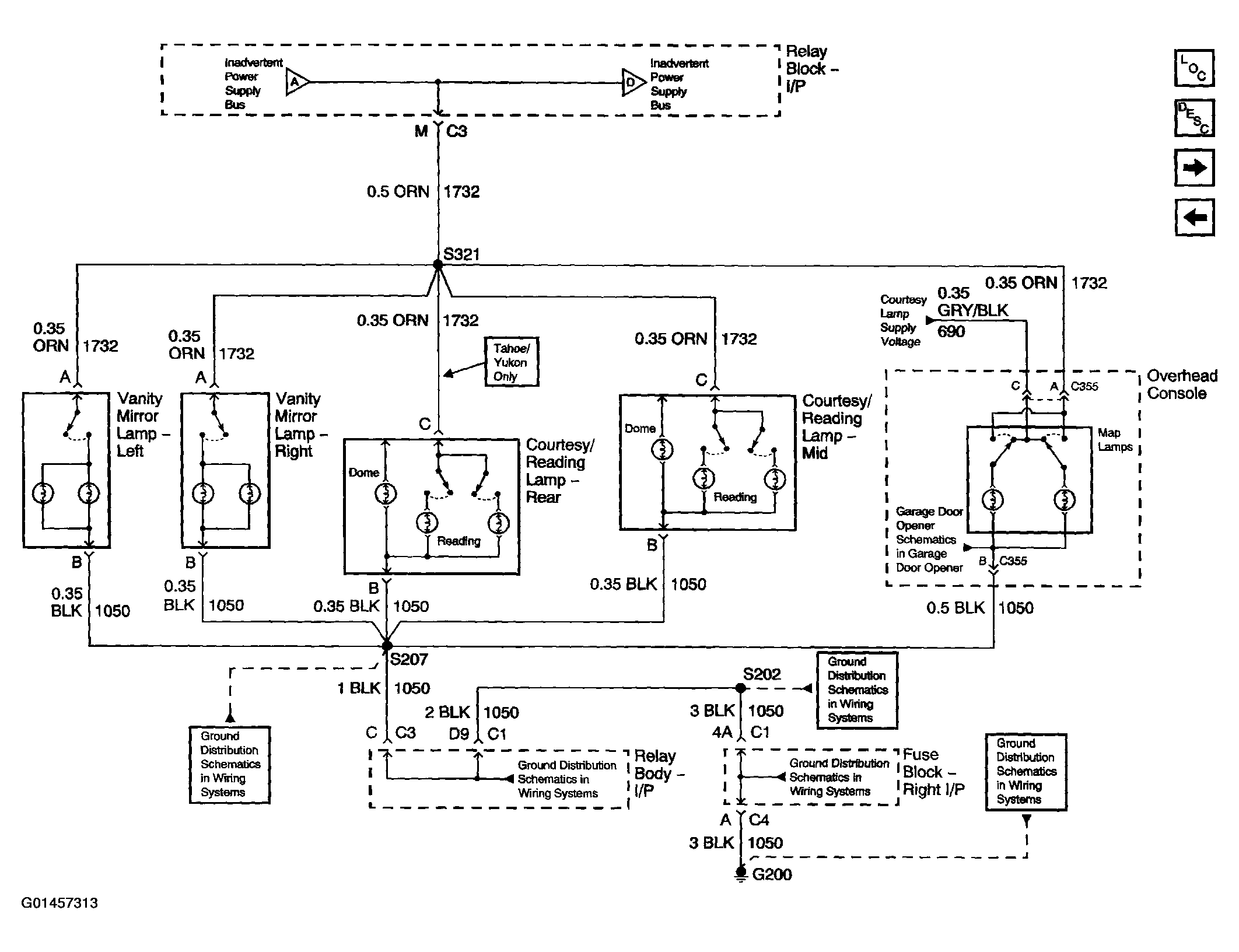

Fig 1: Interior Lights Schematics Diagram (Inadvertent Power Supply Voltage - 1 Of 3 & Courtesy Lamp Supply Voltage - 1 Of 4)

Courtesy of GENERAL MOTORS CORP.

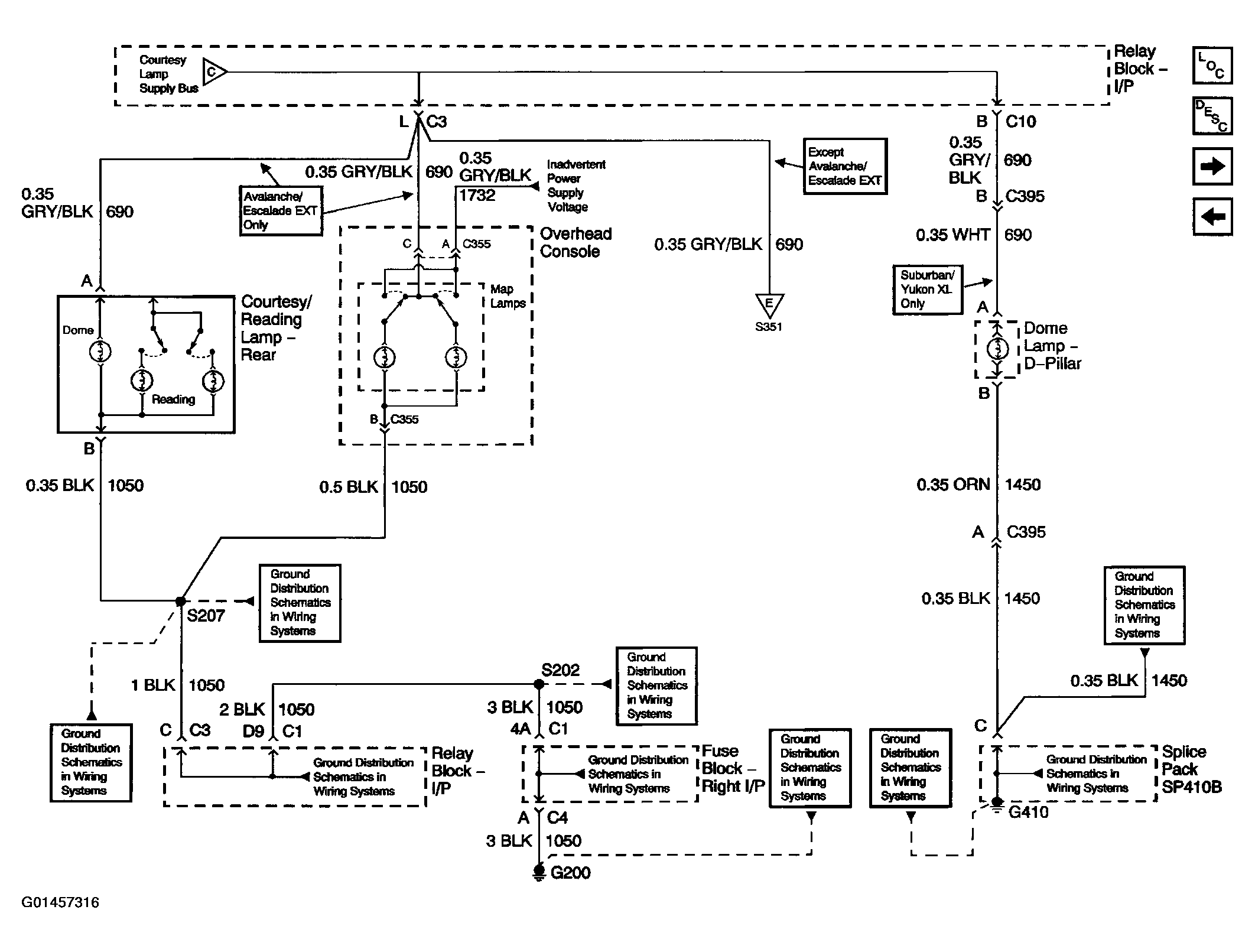

Fig 2: Interior Lights Schematics Diagram (Inadvertent Power Supply Voltage - 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

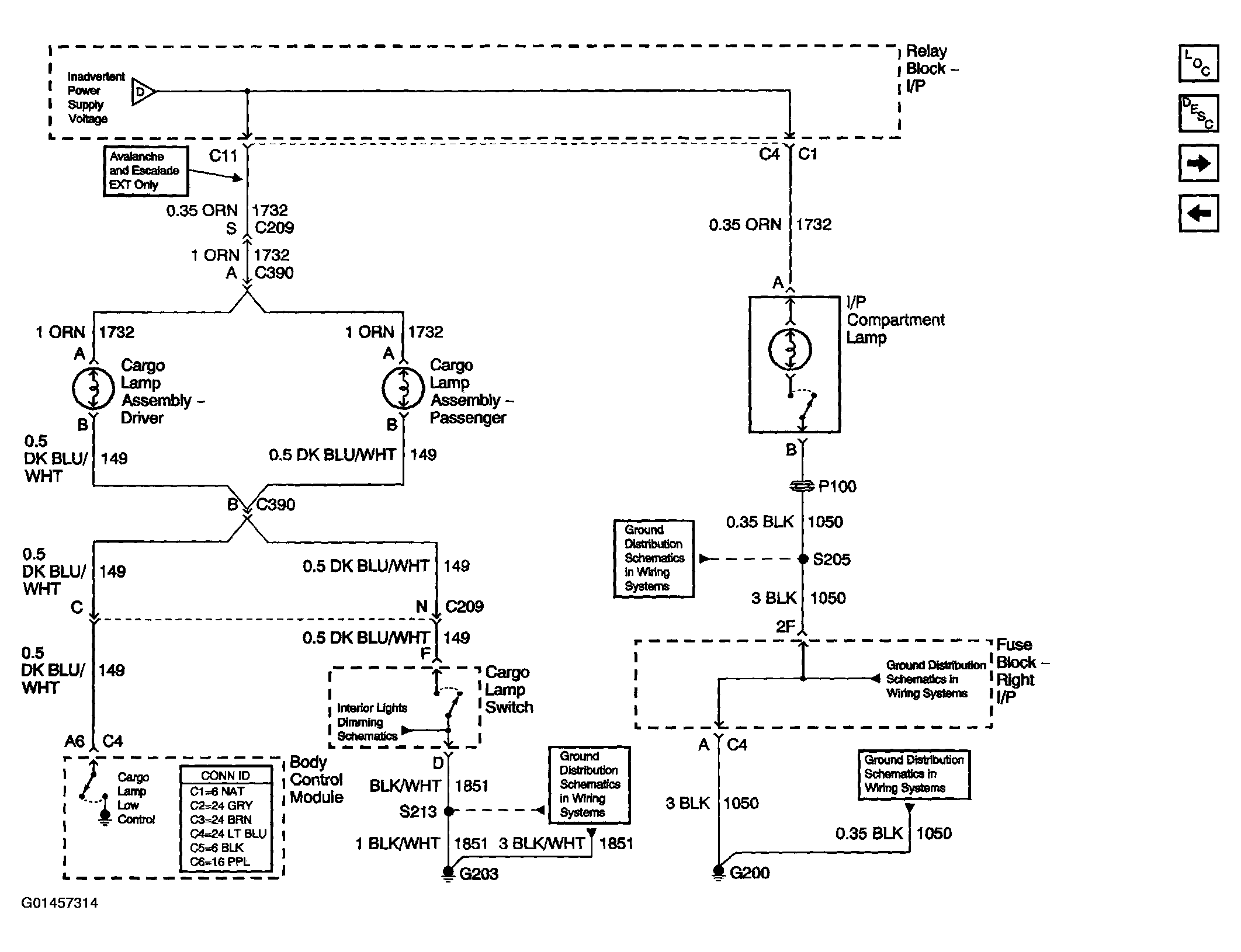

Fig 3: Interior Lights Schematics Diagram (Inadvertent Power Supply Voltage - 3 Of 3)

Courtesy of GENERAL MOTORS CORP.

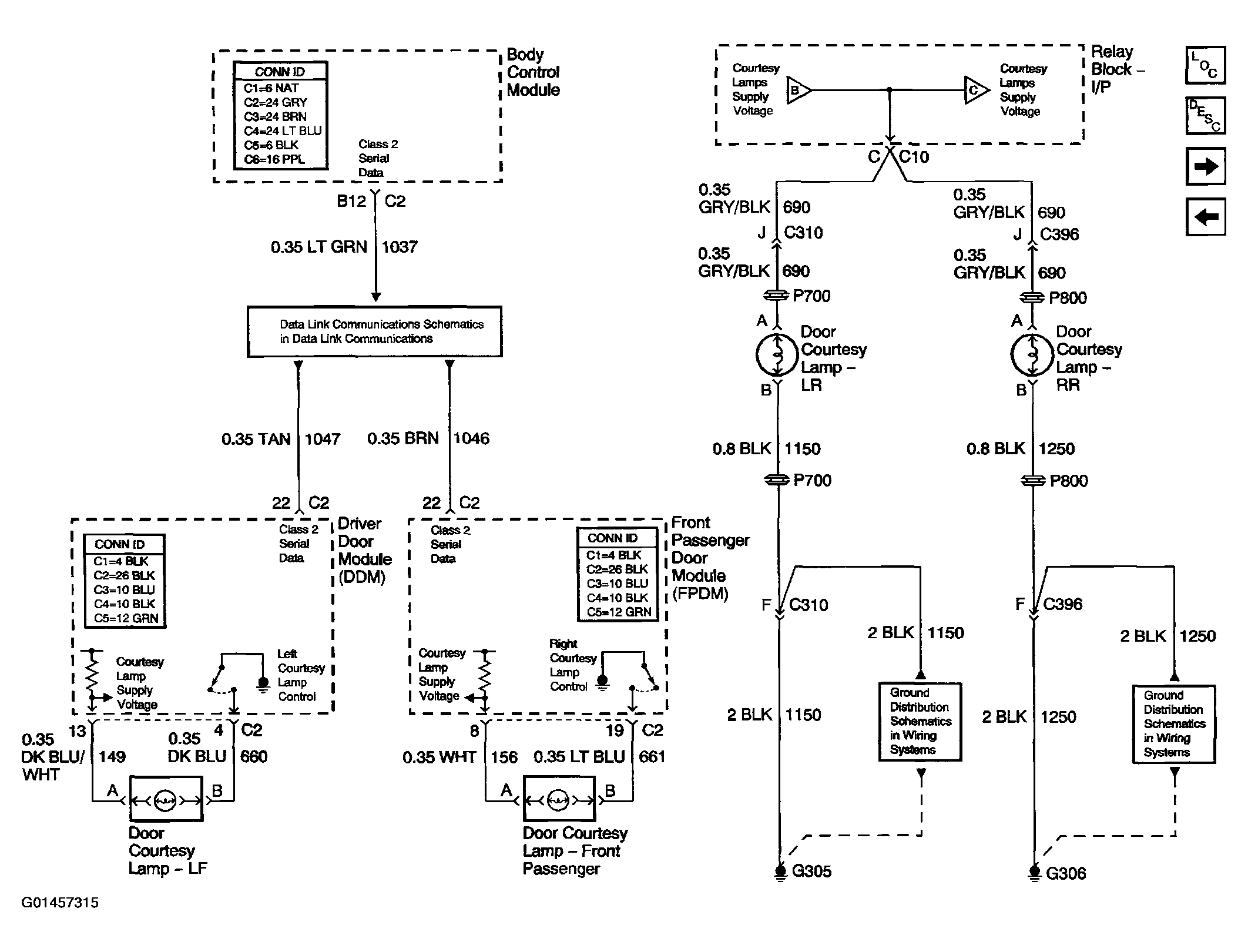

Fig 4: Interior Lights Schematics Diagram (Courtesy Lamp Supply Voltage - 2 Of 4)

Courtesy of GENERAL MOTORS CORP.

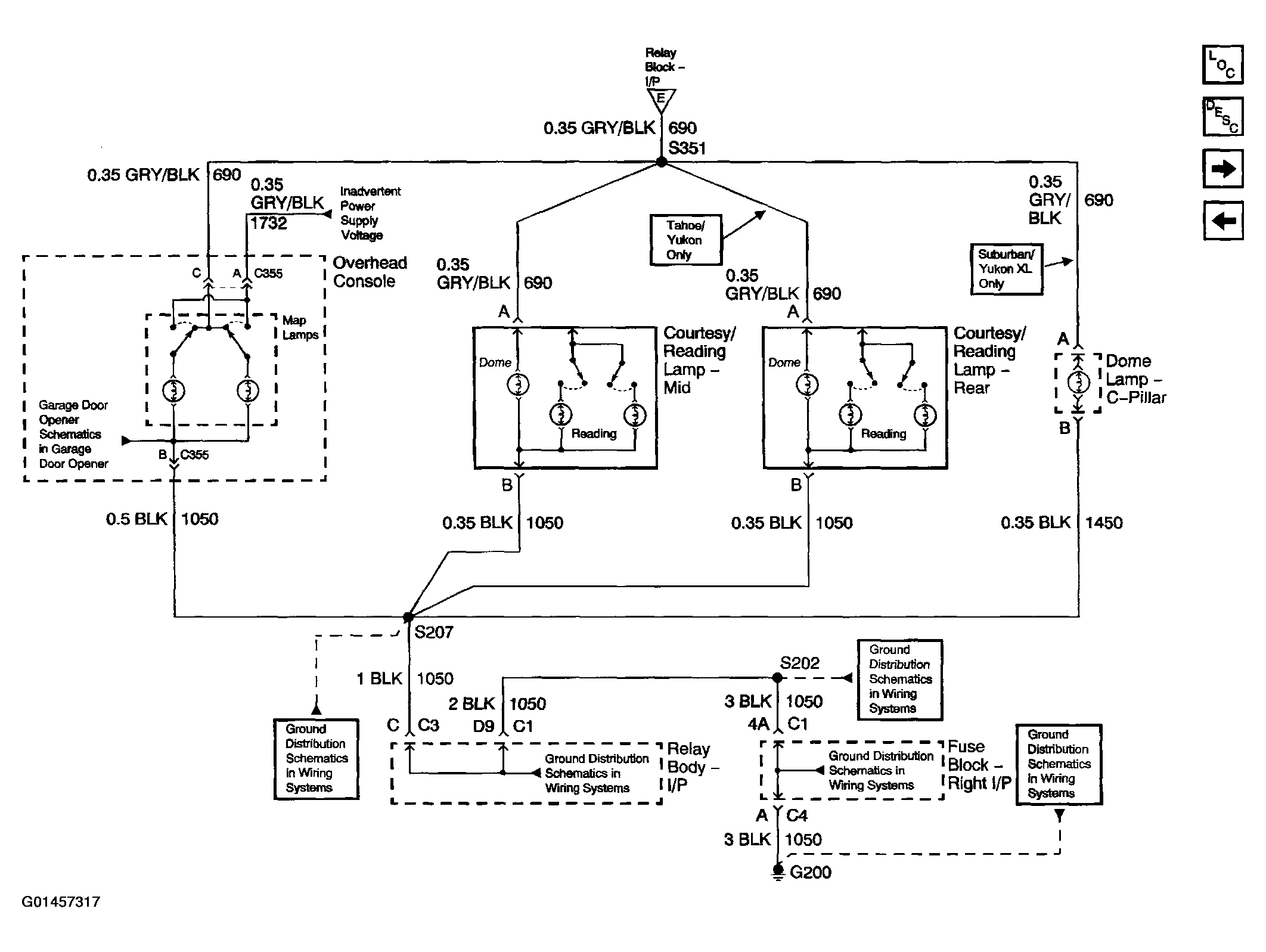

Fig 5: Interior Lights Schematics Diagram (Courtesy Lamp Supply Voltage - 3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Interior Lights Schematics Diagram (Courtesy Lamp Supply Voltage - 4 Of 4)

Courtesy of GENERAL MOTORS CORP.

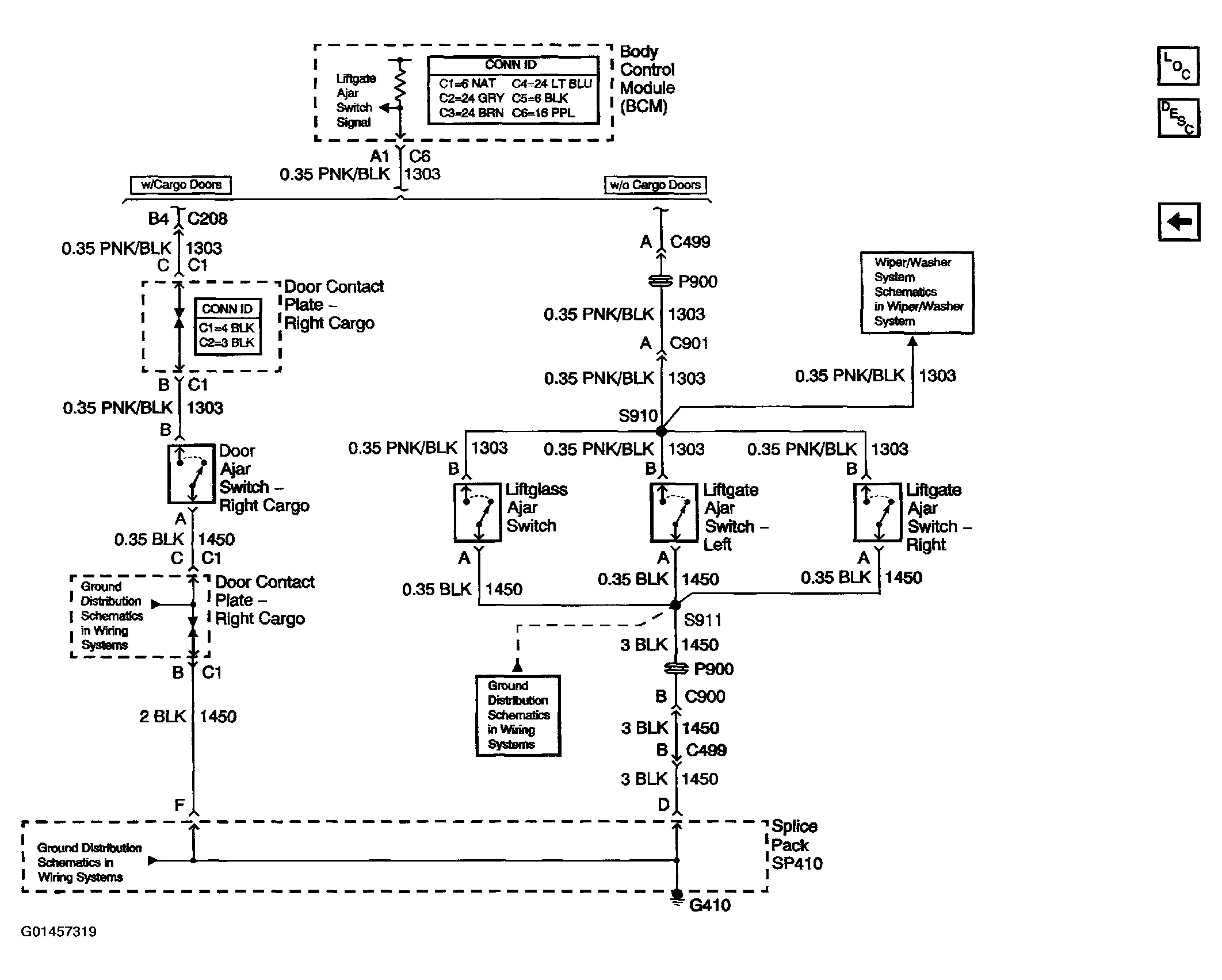

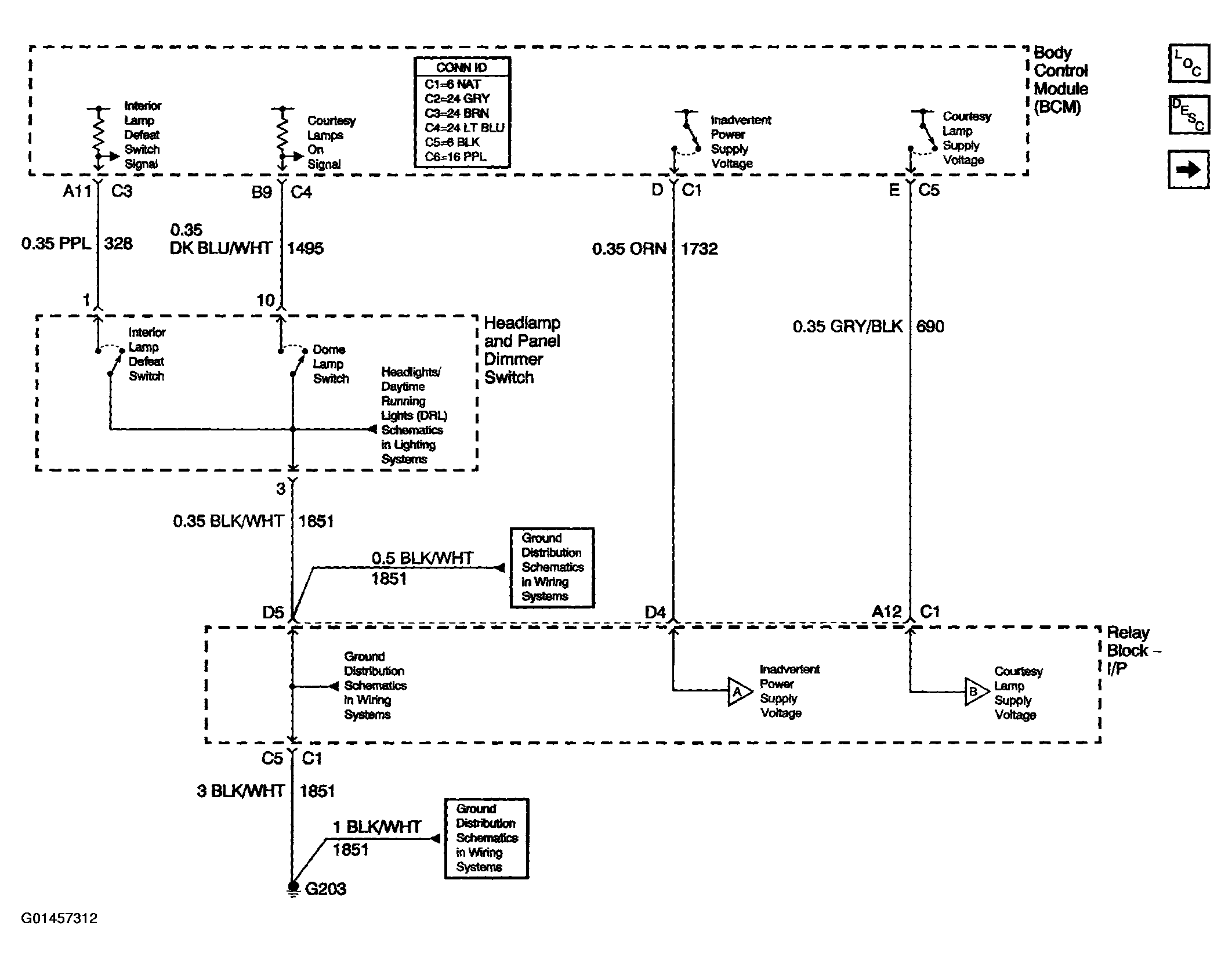

Fig 7: Exterior Lights Schematics Diagram (Door Jamb Switches - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

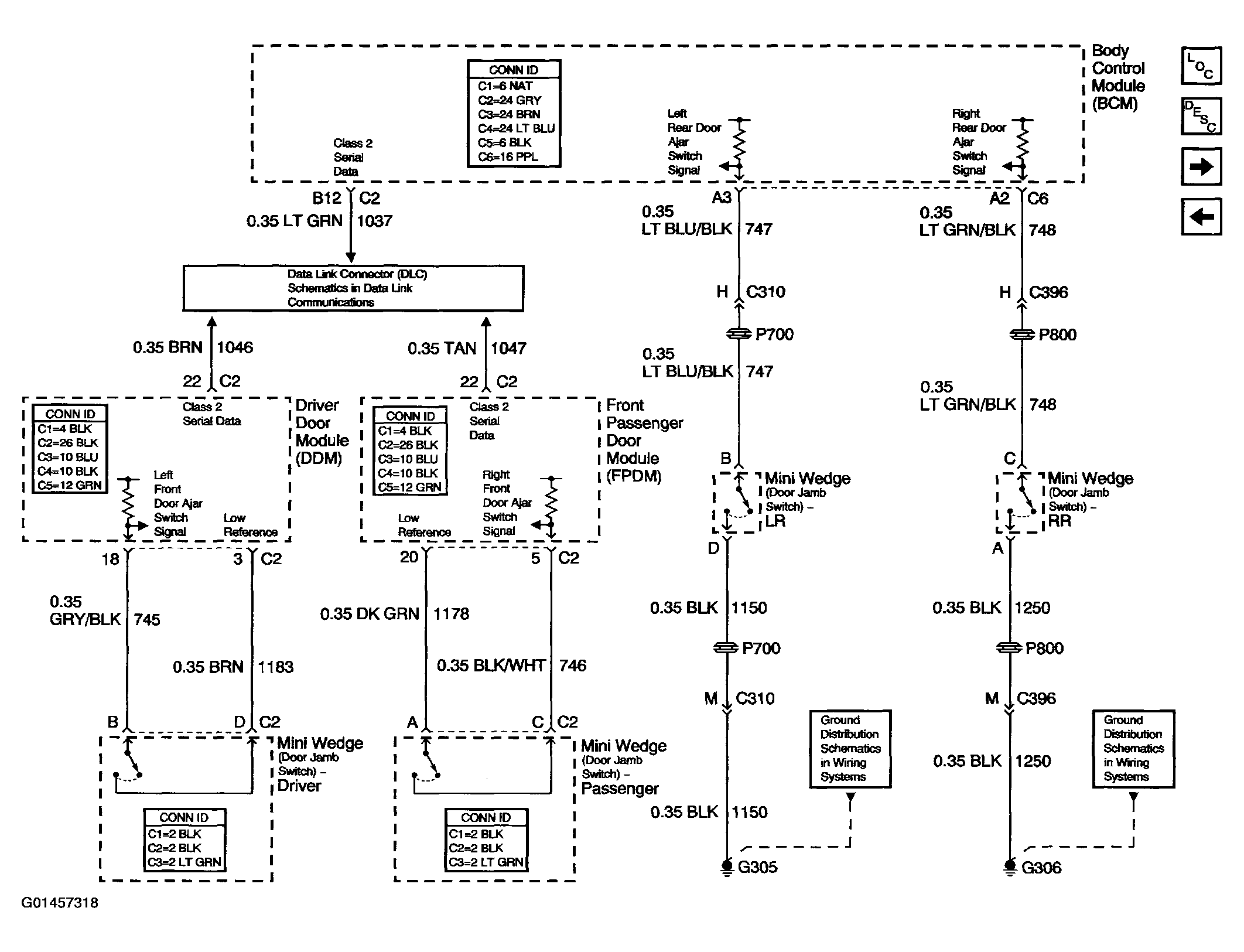

Fig 8: Exterior Lights Schematics Diagram (Door Jamb Switches - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

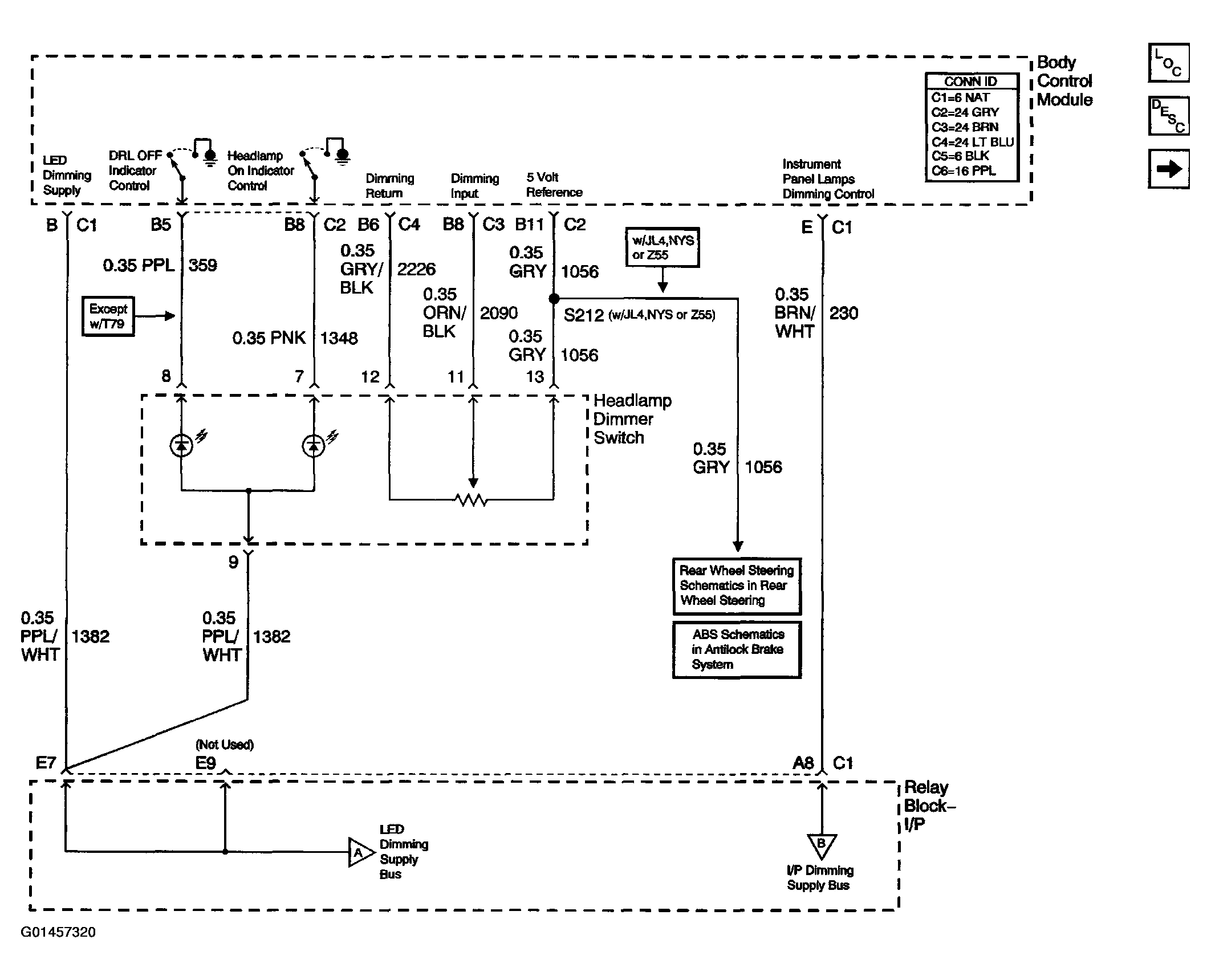

Fig 9: Exterior Lights Schematics Diagram (Interior Lights & LED Dimming Control)

Courtesy of GENERAL MOTORS CORP.
