Exterior Lights Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

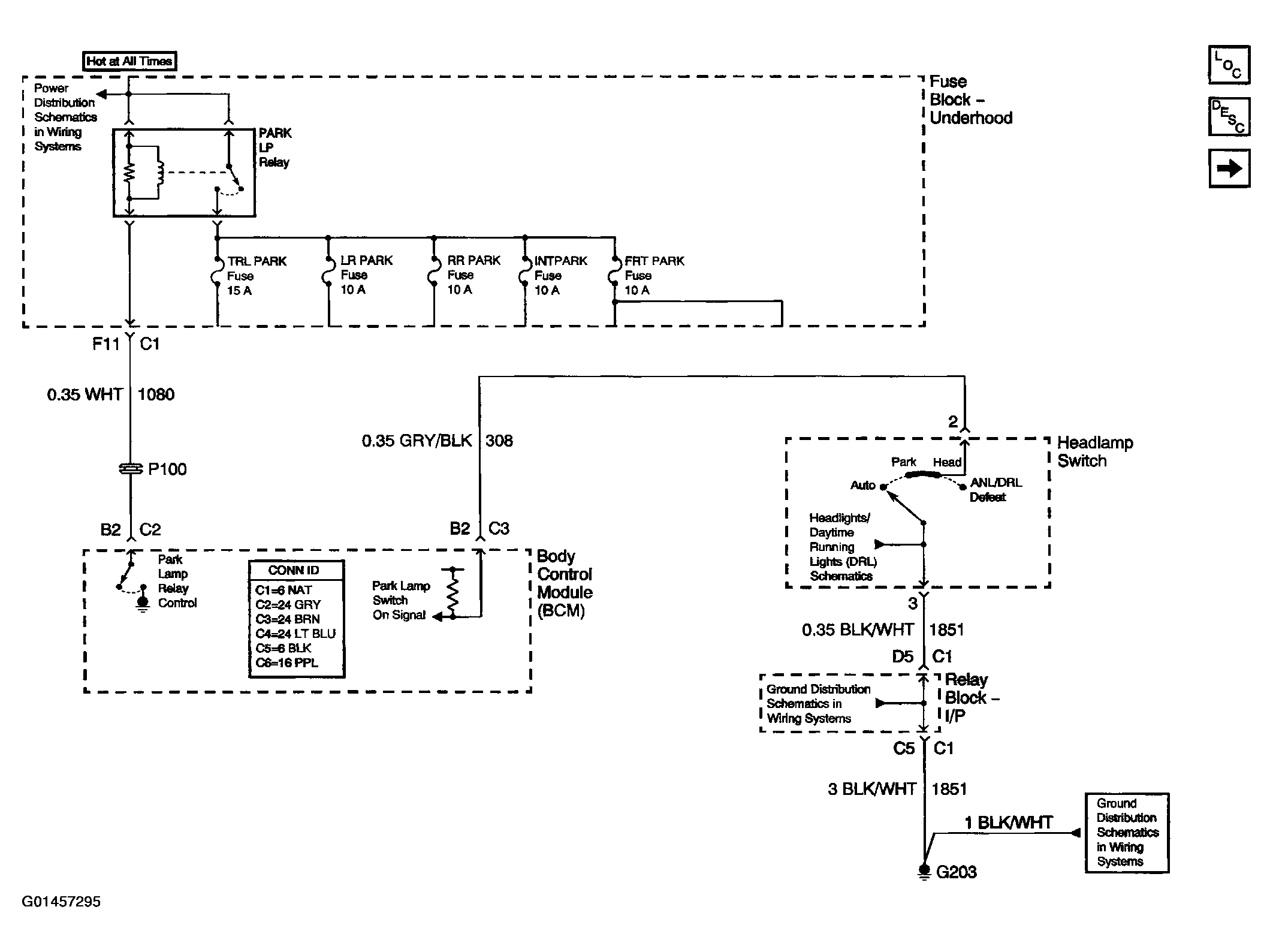

Fig 1: Exterior Lights Schematics Diagram (Park Lamp Relay - Domestic)

G01457295

Courtesy of GENERAL MOTORS CORP.

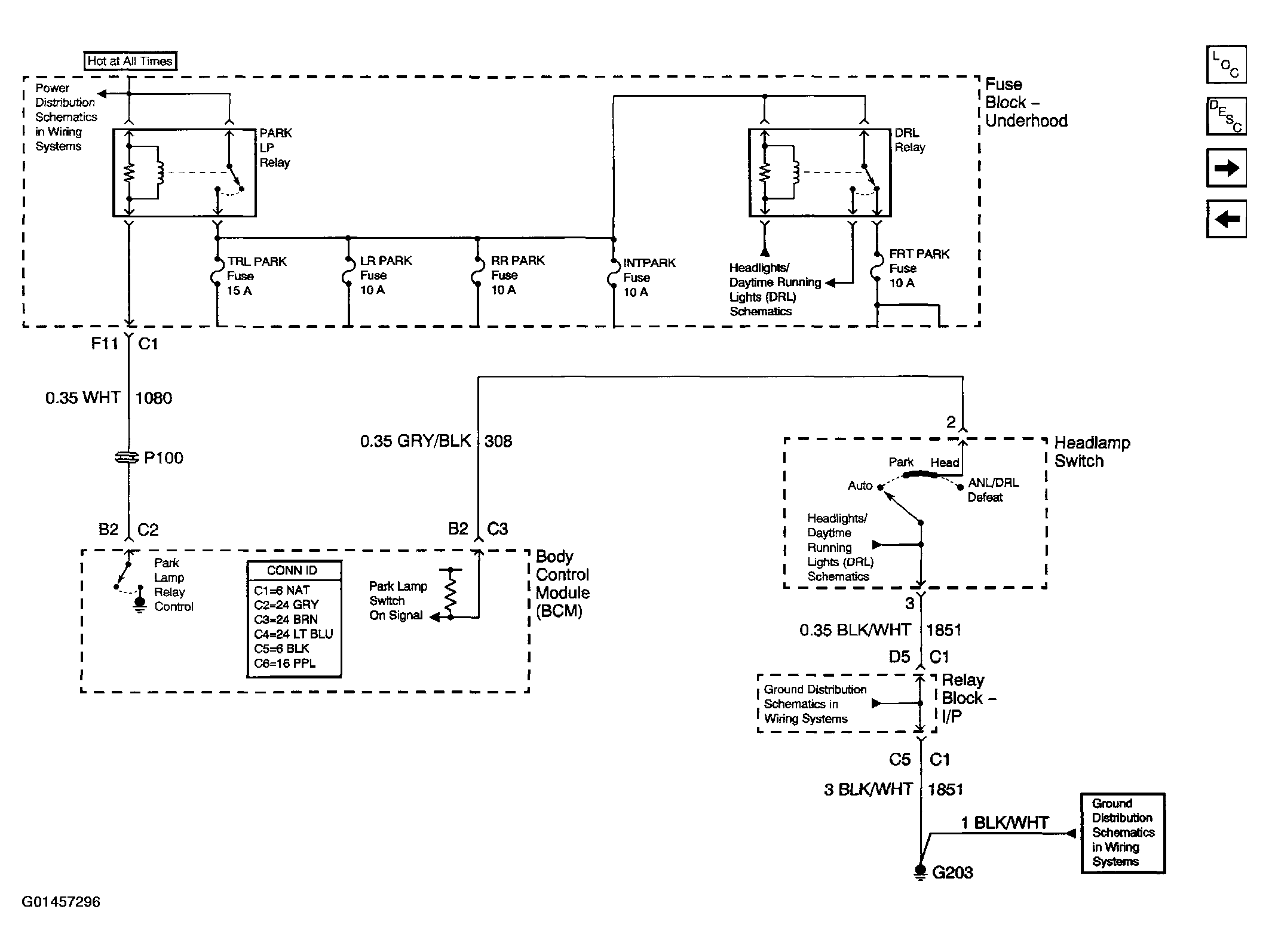

Fig 2: Exterior Lights Schematics Diagram (Park Lamp Relay - Export)

G01457296

Courtesy of GENERAL MOTORS CORP.

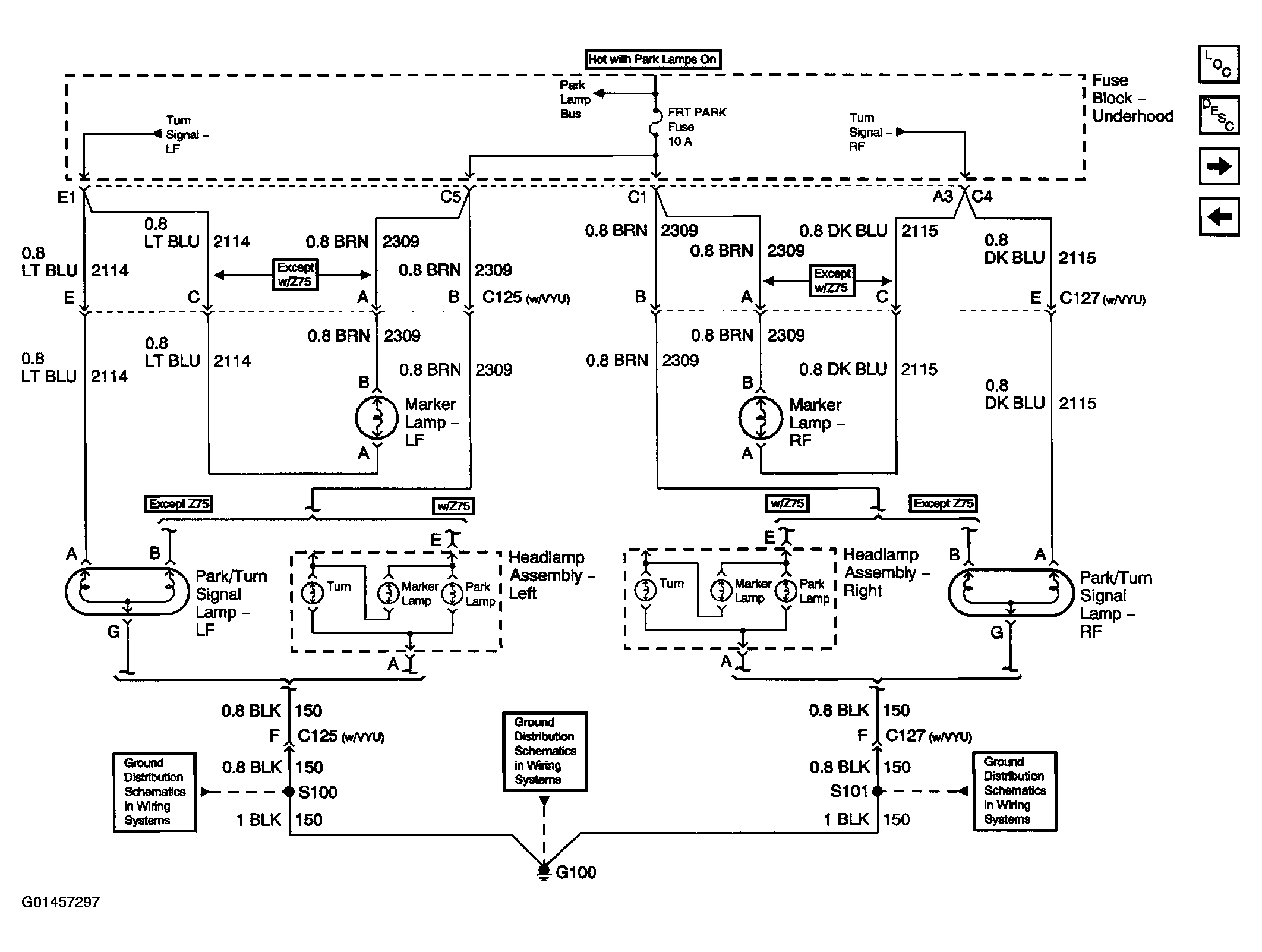

Fig 3: Exterior Lights Schematics Diagram (Front Park Lamps - Domestic)

G01457297

Courtesy of GENERAL MOTORS CORP.

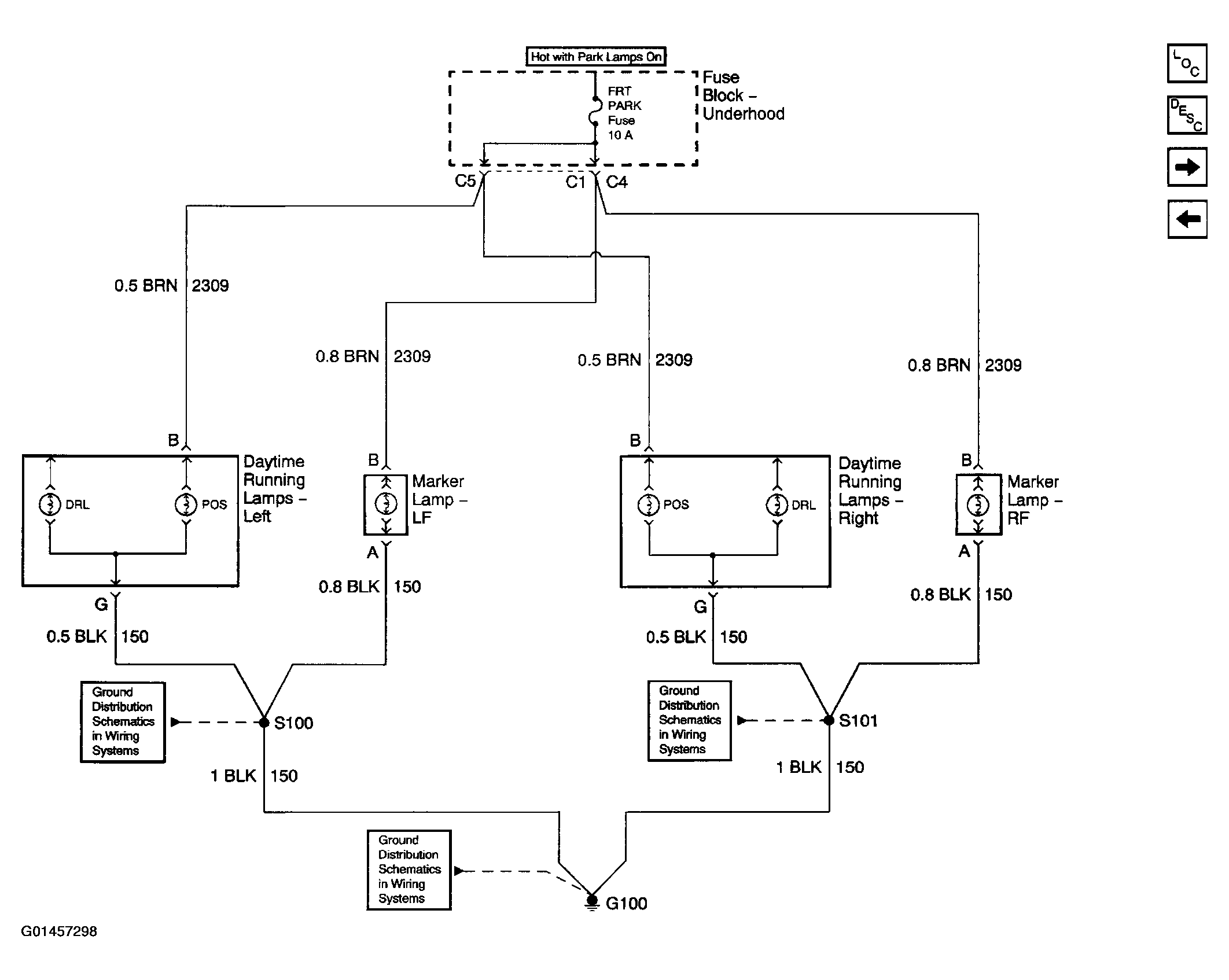

Fig 4: Exterior Lights Schematics Diagram (Front Park Lamps - Export)

G01457298

Courtesy of GENERAL MOTORS CORP.

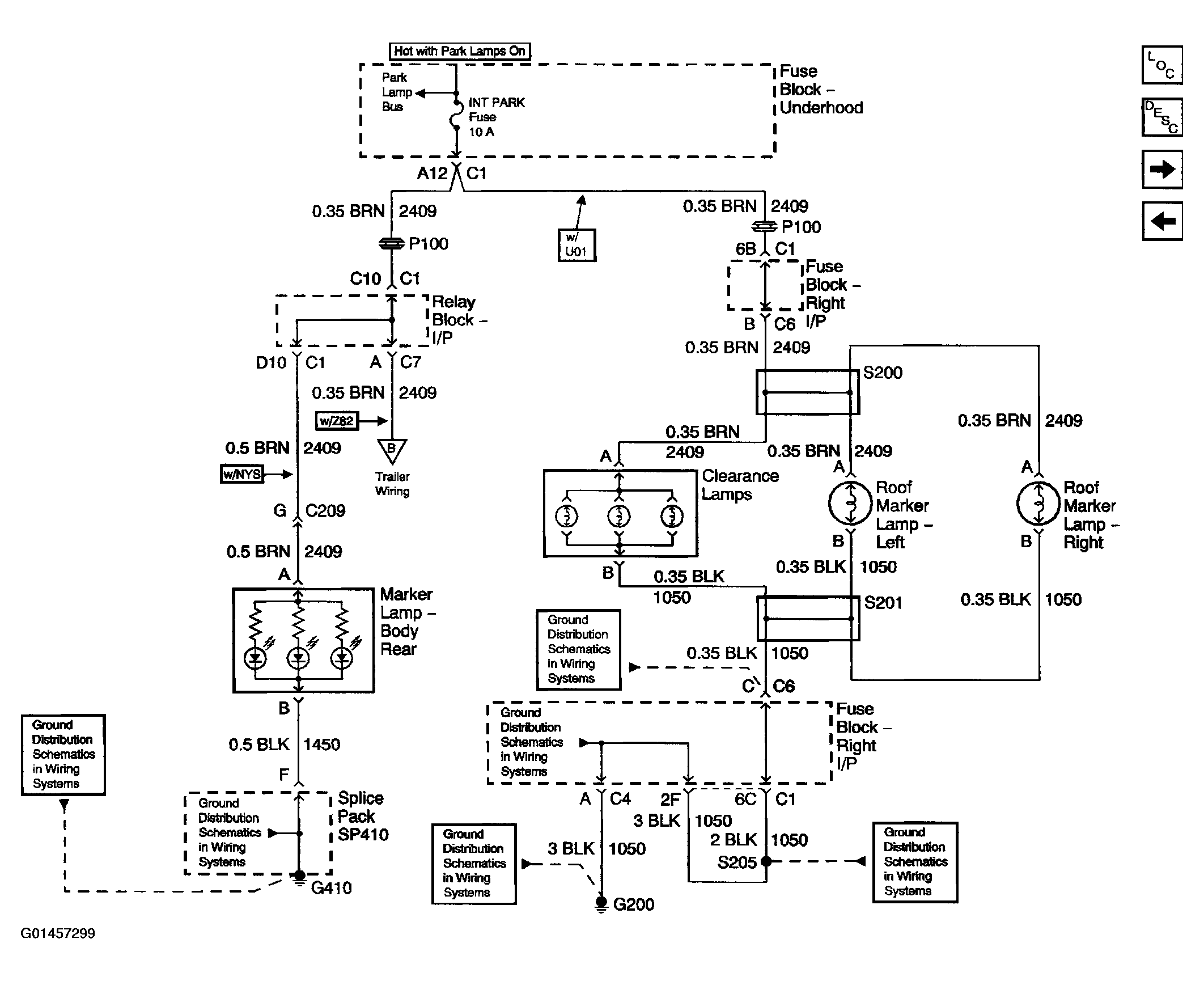

Fig 5: Exterior Lights Schematics Diagram (Interior Park)

G01457299

Courtesy of GENERAL MOTORS CORP.

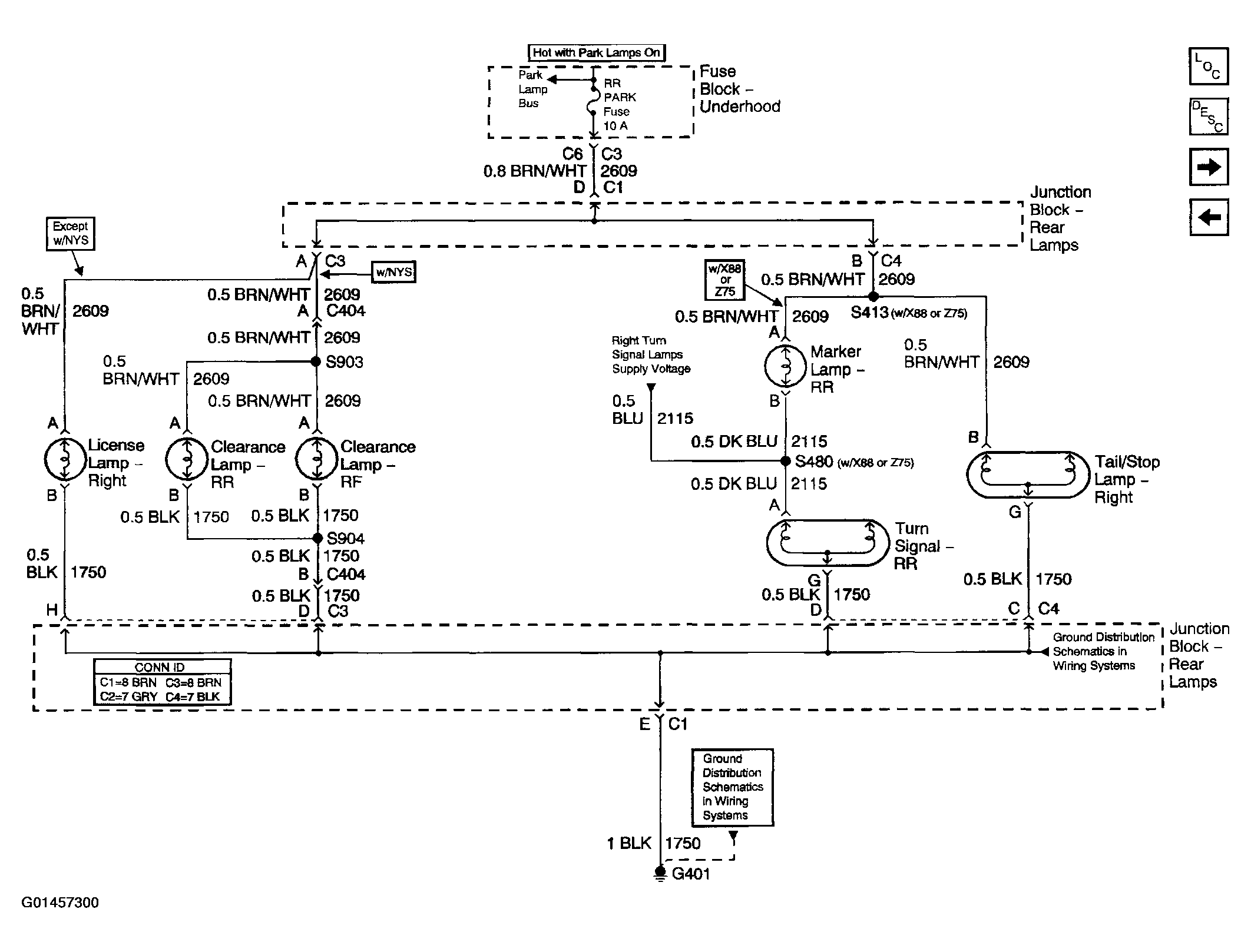

Fig 6: Exterior Lights Schematics Diagram (Right Rear Park Lamps)

G01457300

Courtesy of GENERAL MOTORS CORP.

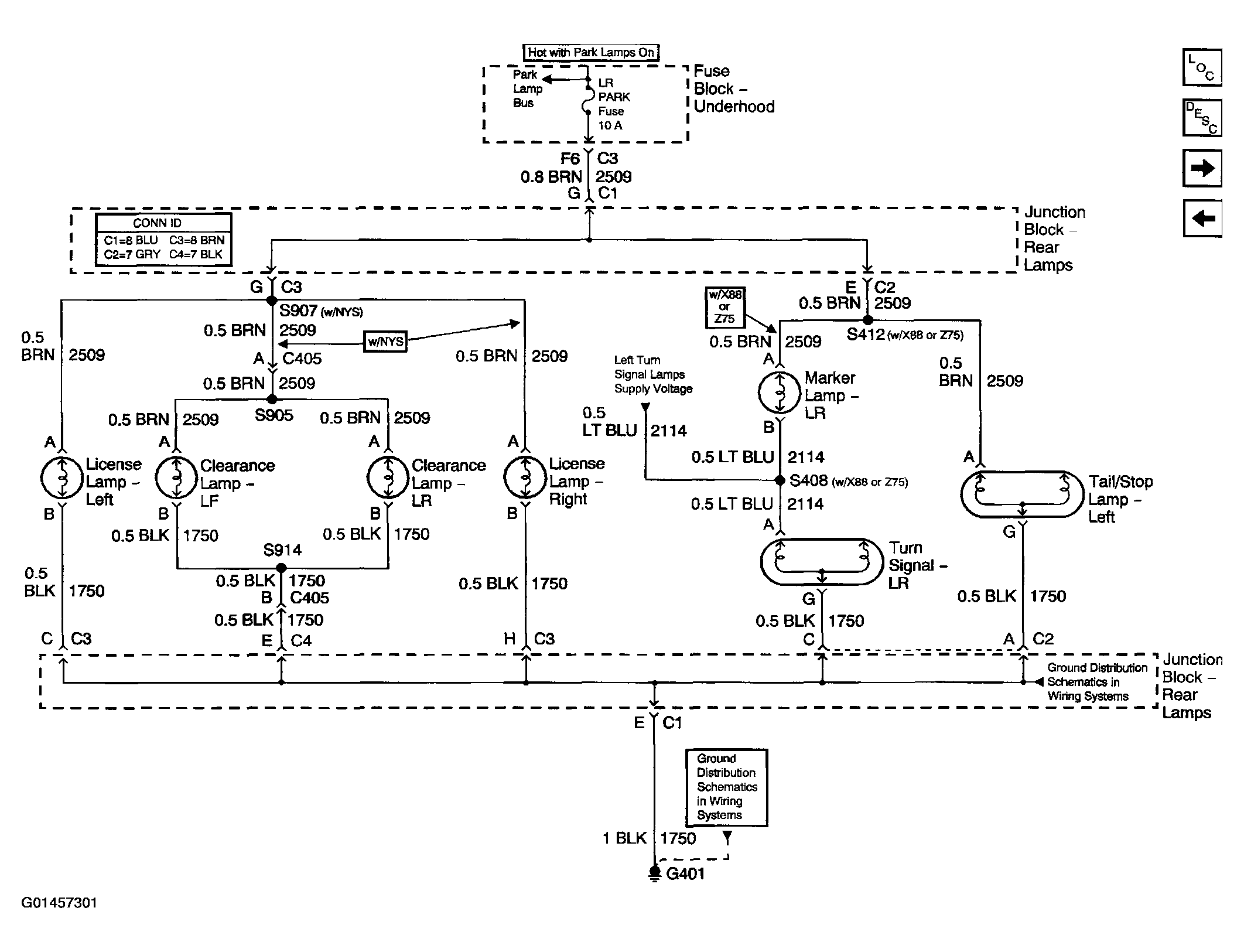

Fig 7: Exterior Lights Schematics Diagram (Left Rear Park Lamps)

G01457301

Courtesy of GENERAL MOTORS CORP.

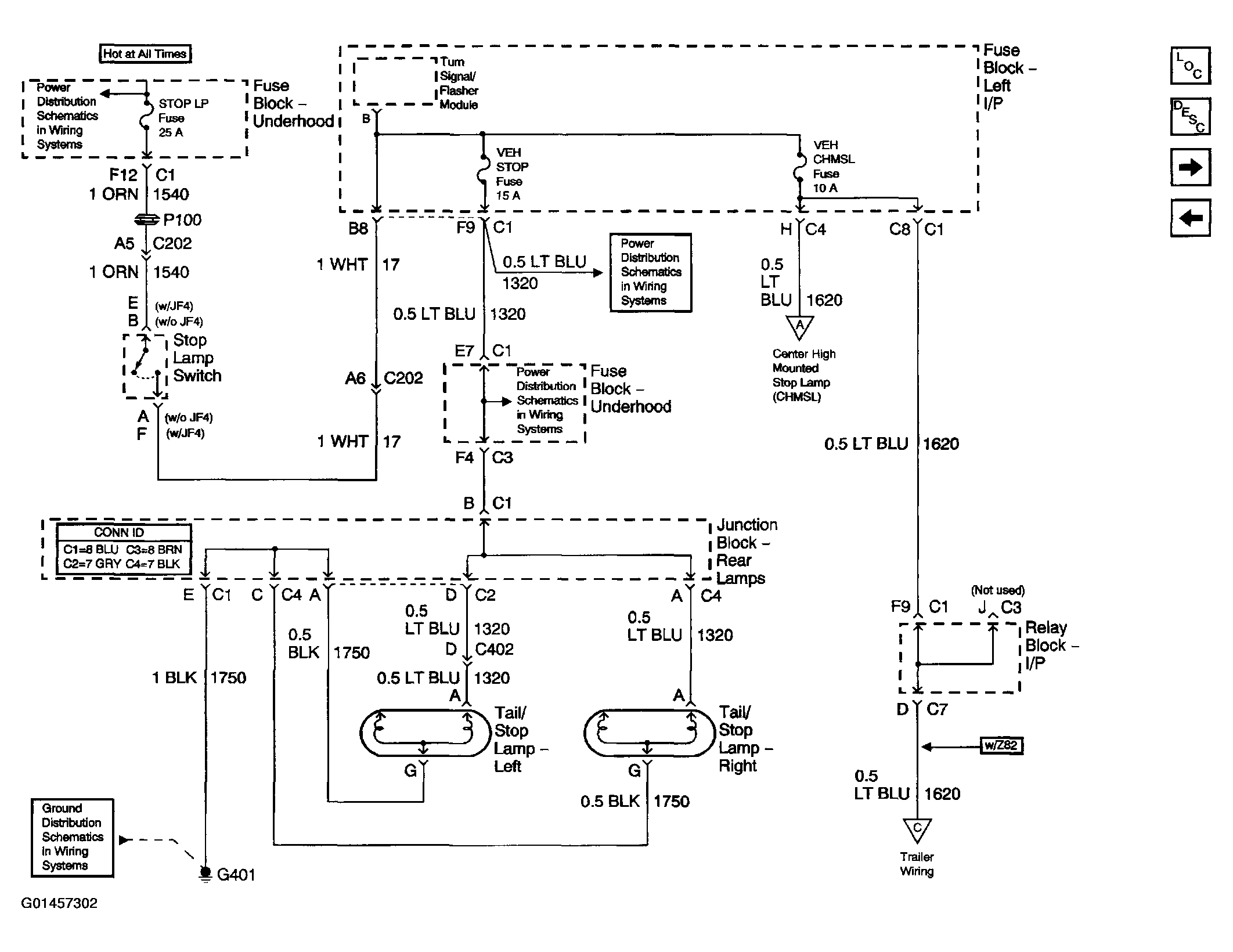

Fig 8: Exterior Lights Schematics Diagram (Stop Lamps - 1 Of 2)

G01457302

Courtesy of GENERAL MOTORS CORP.

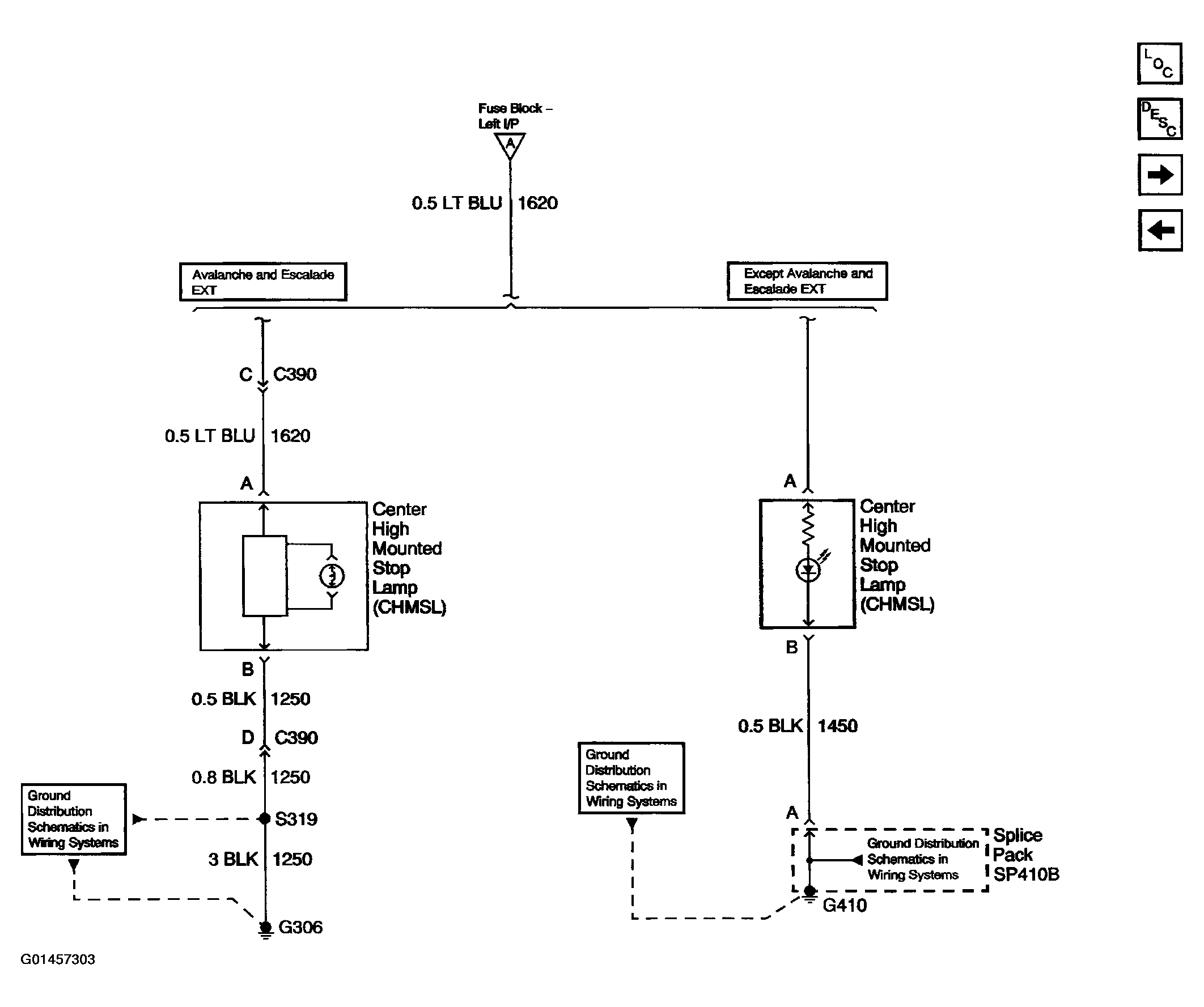

Fig 9: Exterior Lights Schematics Diagram (Stop Lamps - 2 Of 2)

G01457303

Courtesy of GENERAL MOTORS CORP.

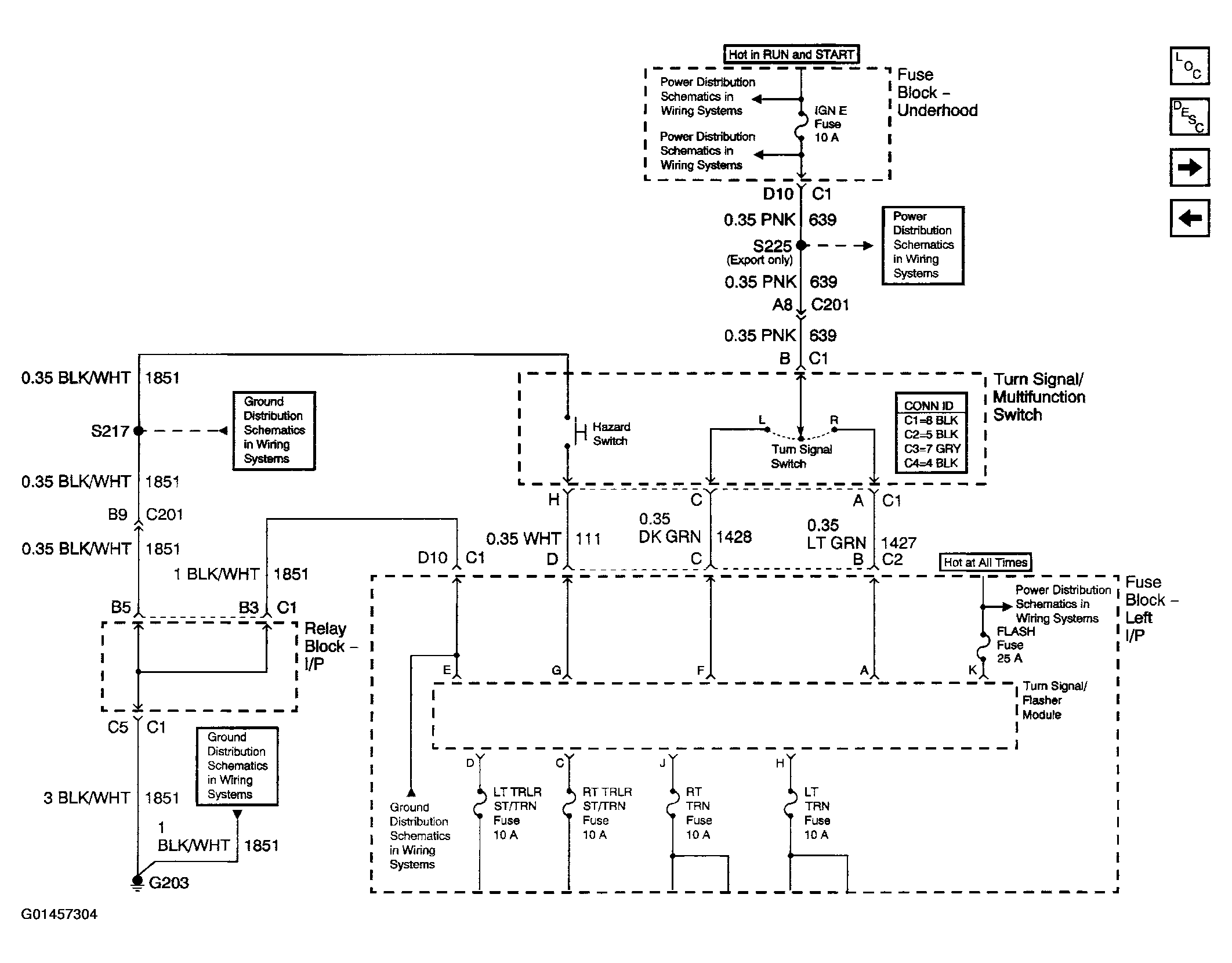

Fig 10: Exterior Lights Schematics Diagram (Turn Signal Multifunction)

G01457304

Courtesy of GENERAL MOTORS CORP.

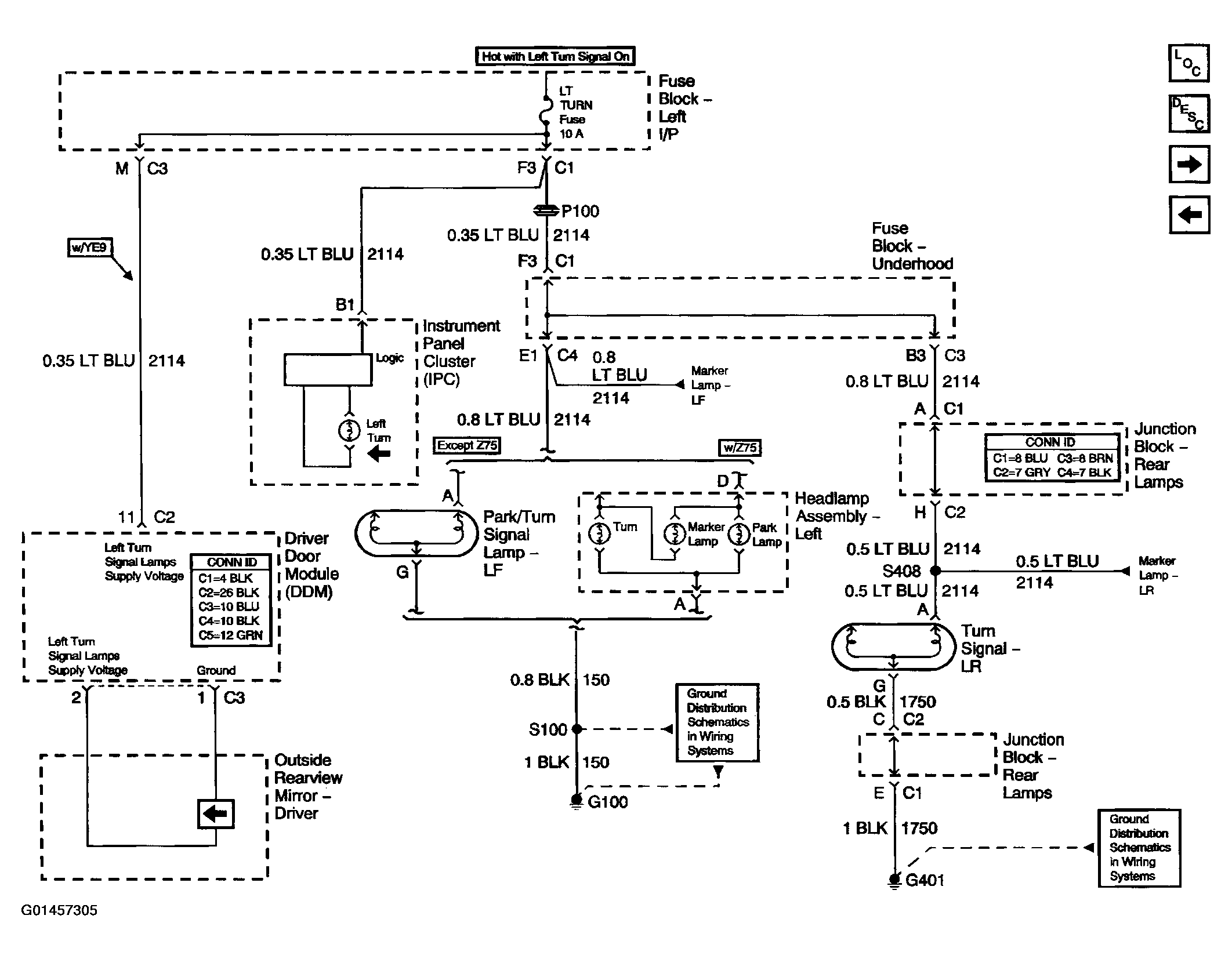

Fig 11: Exterior Lights Schematics Diagram (Left Turn Signals - Domestic)

G01457305

Courtesy of GENERAL MOTORS CORP.

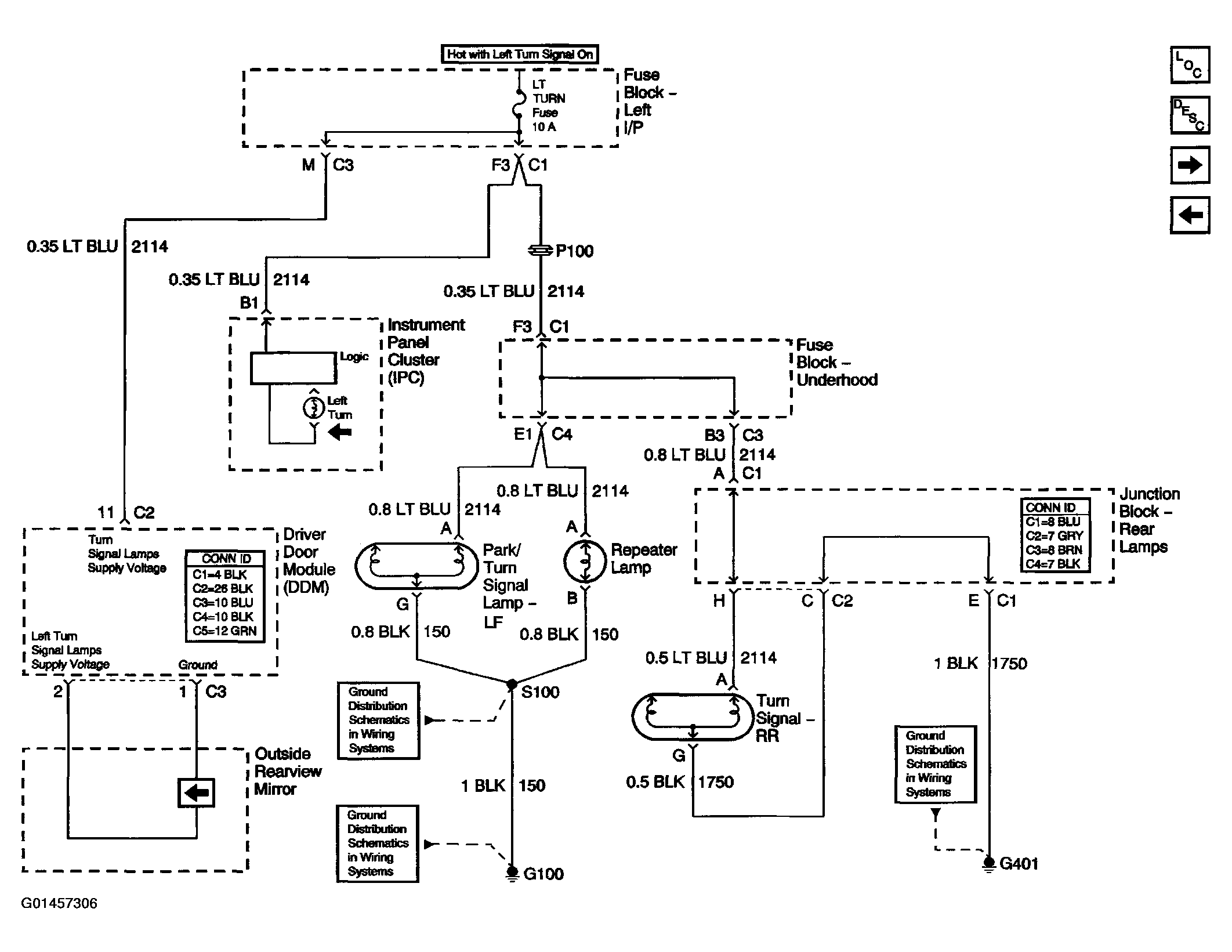

Fig 12: Exterior Lights Schematics Diagram (Left Turn Signals - Export)

G01457306

Courtesy of GENERAL MOTORS CORP.

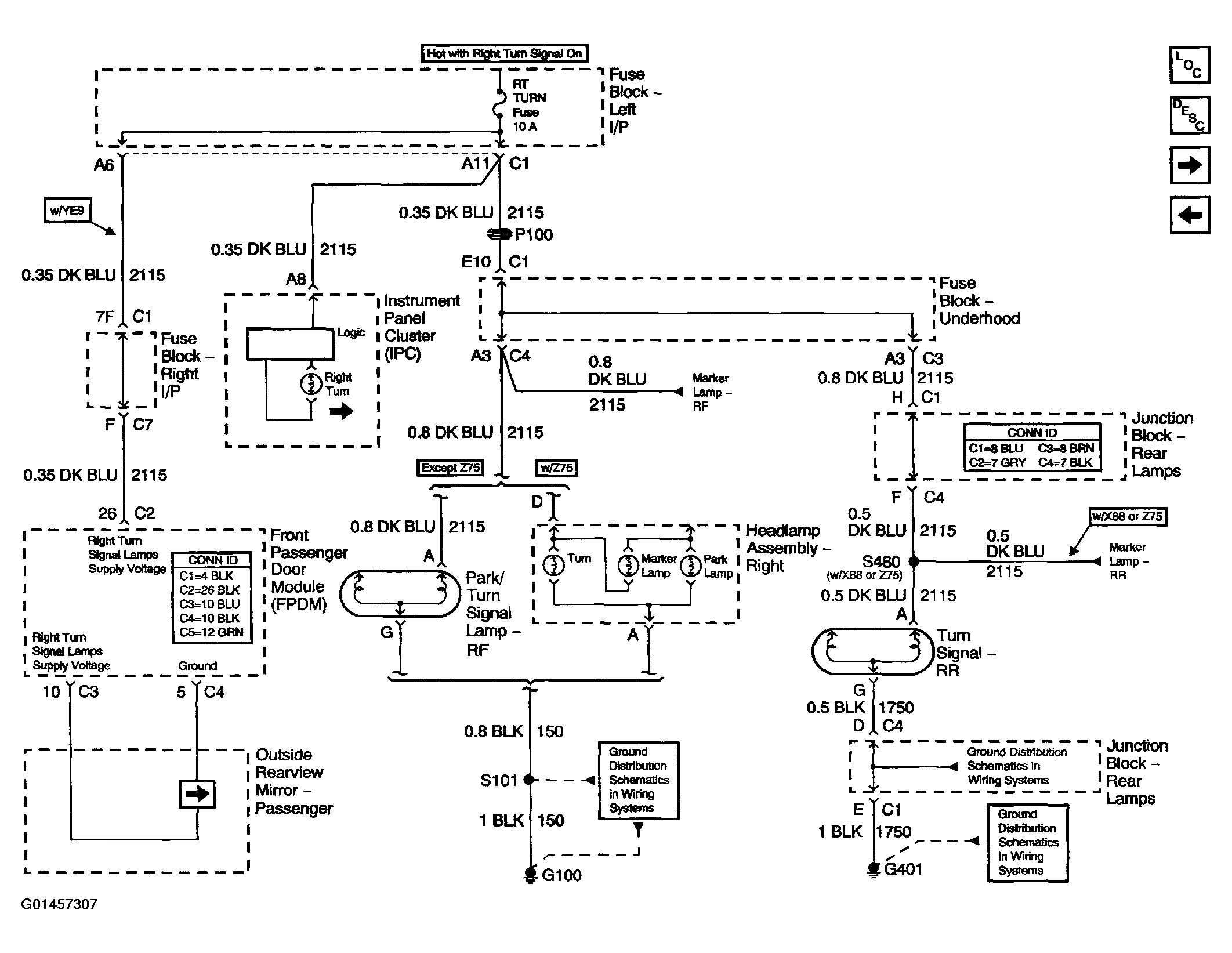

Fig 13: Exterior Lights Schematics Diagram (Right Turn Signals - Domestic)

G01457307

Courtesy of GENERAL MOTORS CORP.

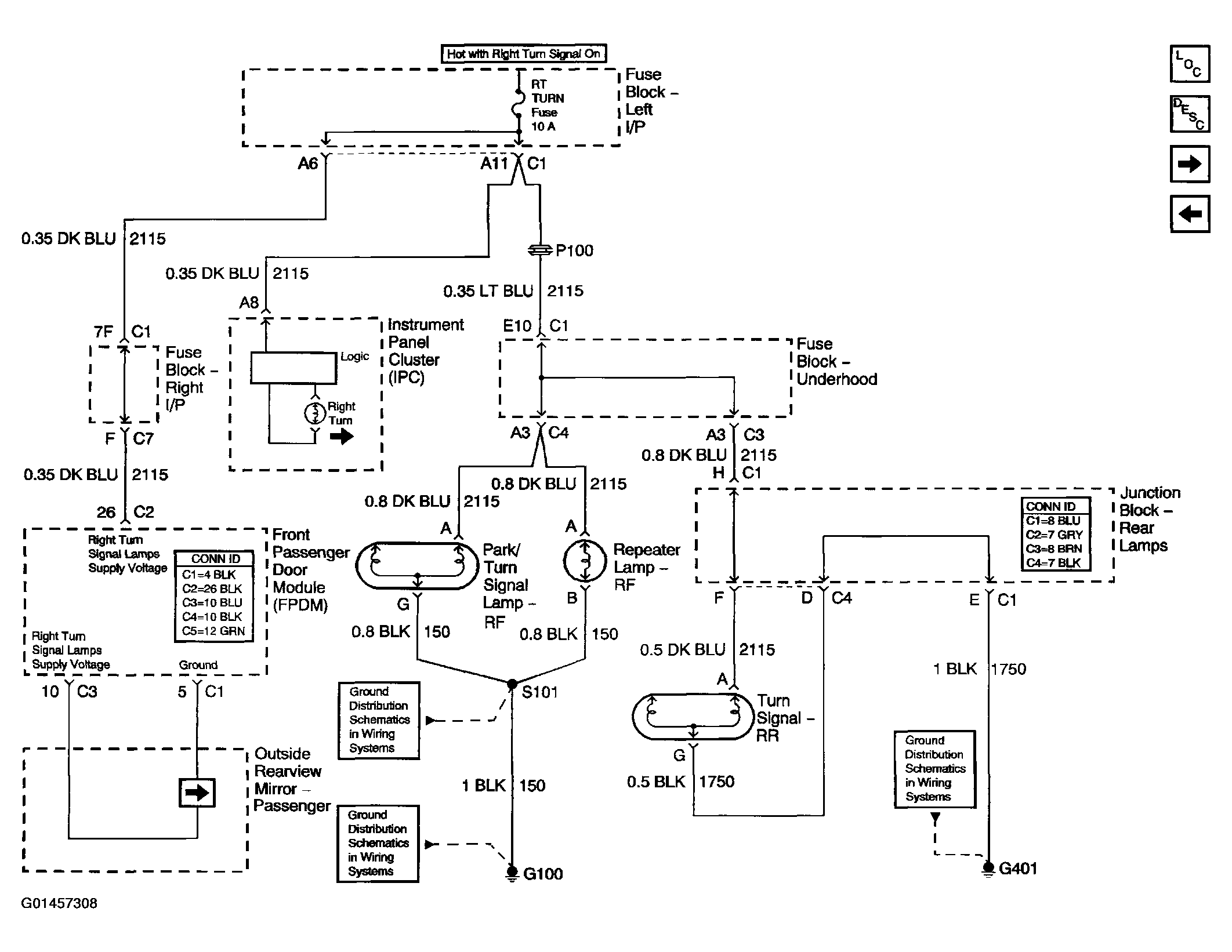

Fig 14: Exterior Lights Schematics Diagram (Right Turn Signals - Export)

G01457308

Courtesy of GENERAL MOTORS CORP.

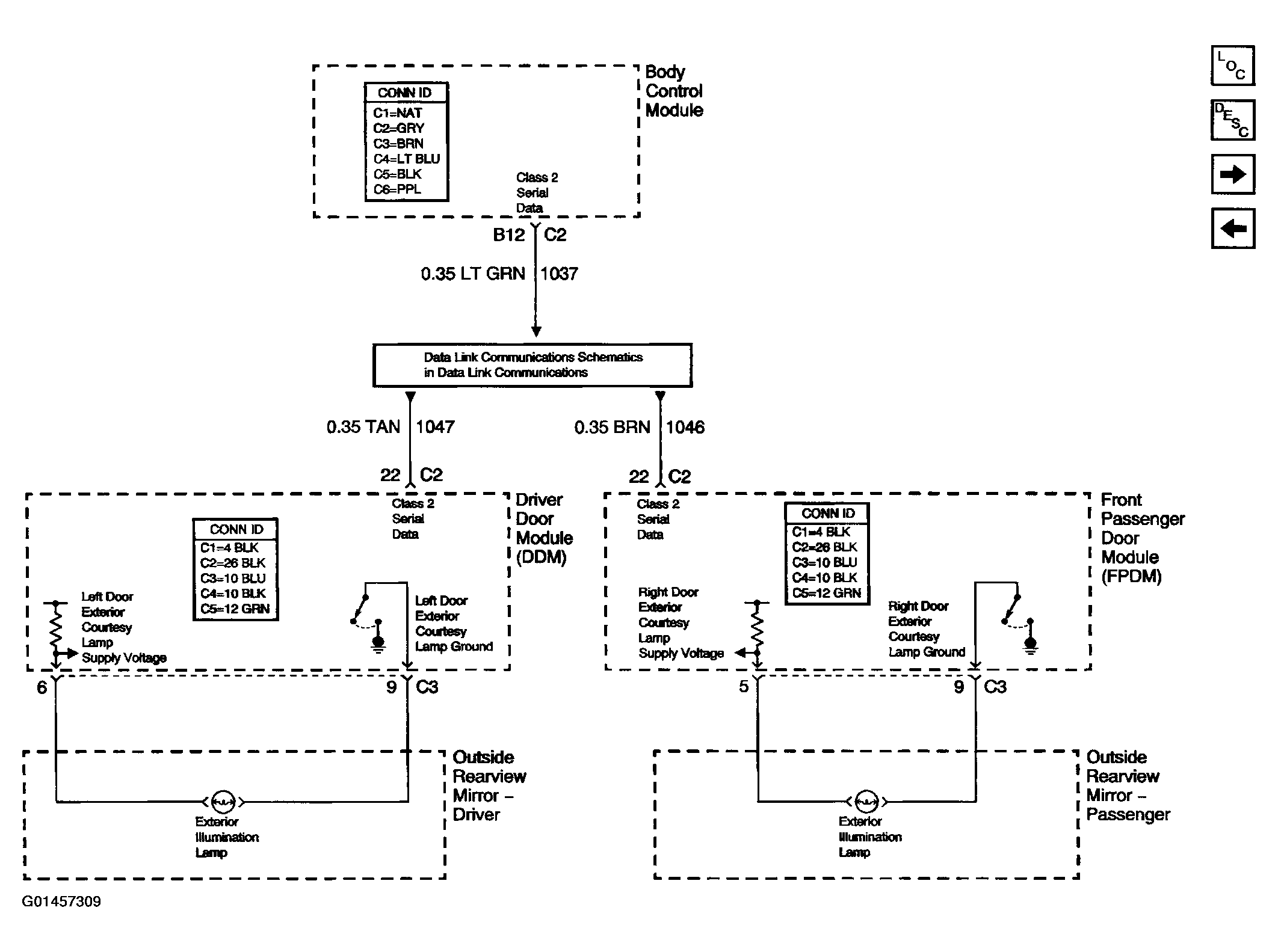

Fig 15: Exterior Lights Schematics Diagram (Exterior Illumination Lamps)

G01457309

Courtesy of GENERAL MOTORS CORP.

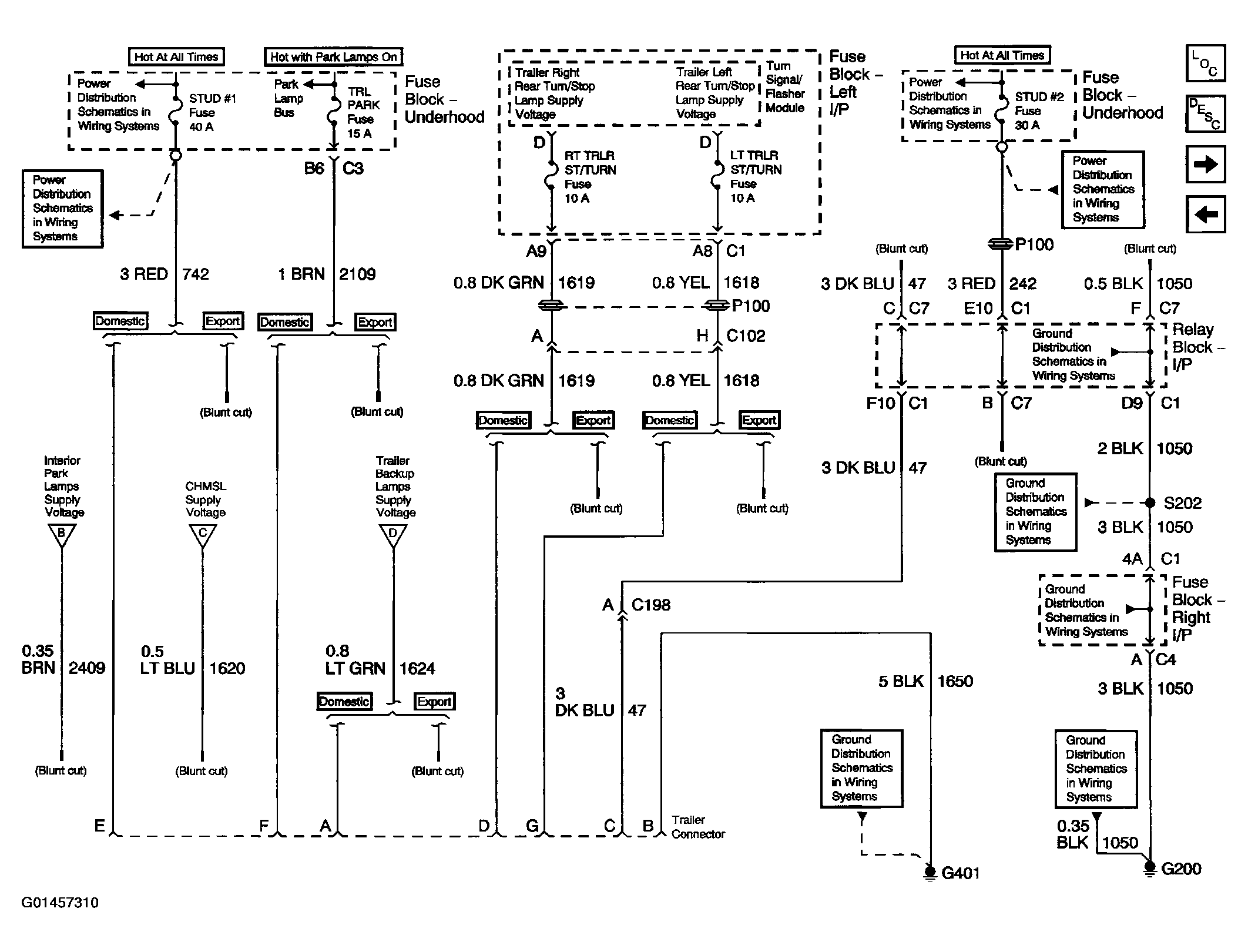

Fig 16: Exterior Lights Schematics Diagram (Trailer Wiring)

G01457310

Courtesy of GENERAL MOTORS CORP.

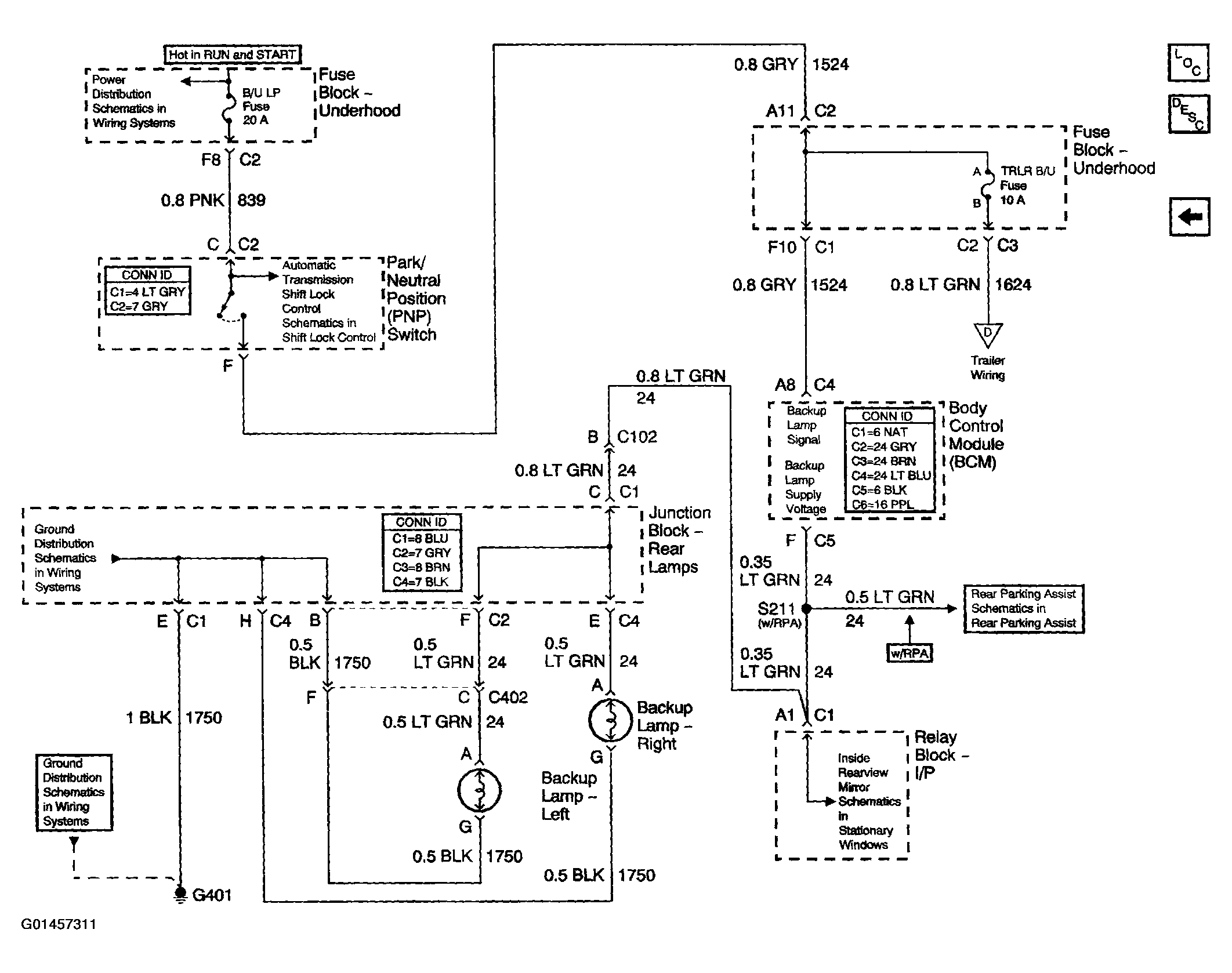

Fig 17: Exterior Lights Schematics Diagram (Backup Lamps)

G01457311

Courtesy of GENERAL MOTORS CORP.
