Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the electrical connector.
Squeeze the lower tab. Remove the underhood lamp from the hood.

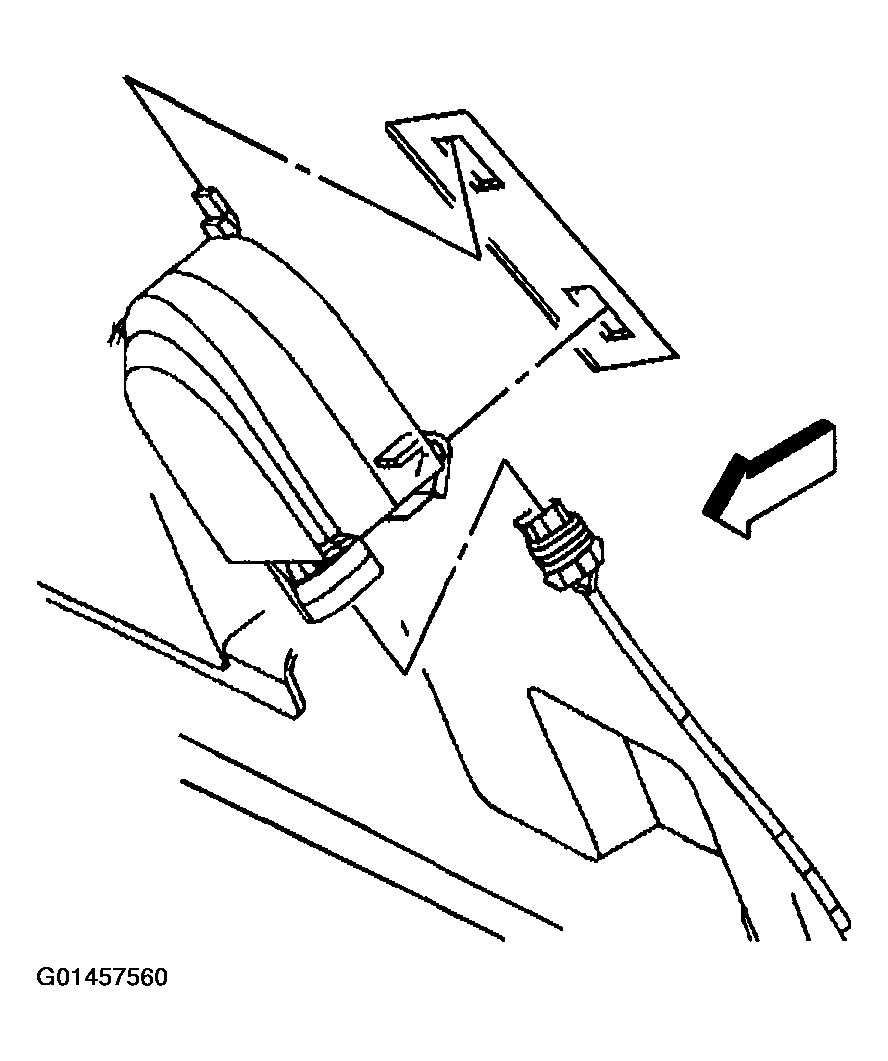

Fig 1: Disconnecting Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the lens cover. Use a small flat bladed tool in order to pry the cover off.

Fig 2: Removing Lens Cover

Courtesy of GENERAL MOTORS CORP.

Remove the bulb from the socket.

Fig 3: Removing Bulb From Socket

Courtesy of GENERAL MOTORS CORP.
