Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.

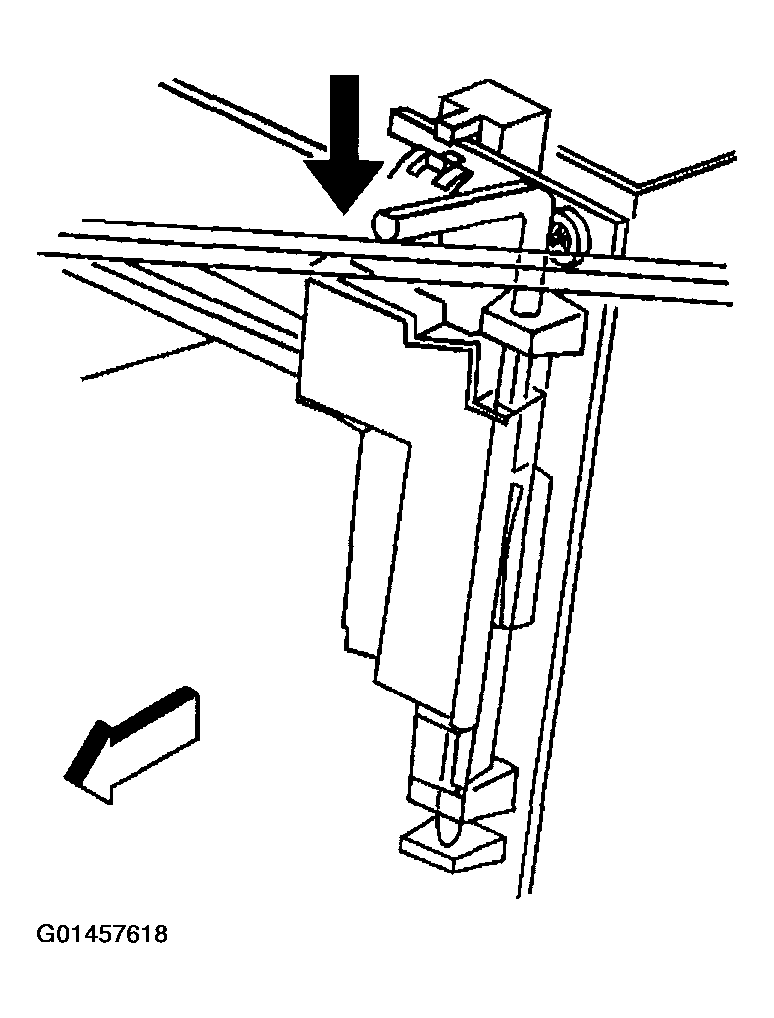

Rotate the park/turn retainer pins.

Fig 1: Removing Procedure Park/Turn Signal Lamp (Avalanche) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Remove the park/turn retainer pins.

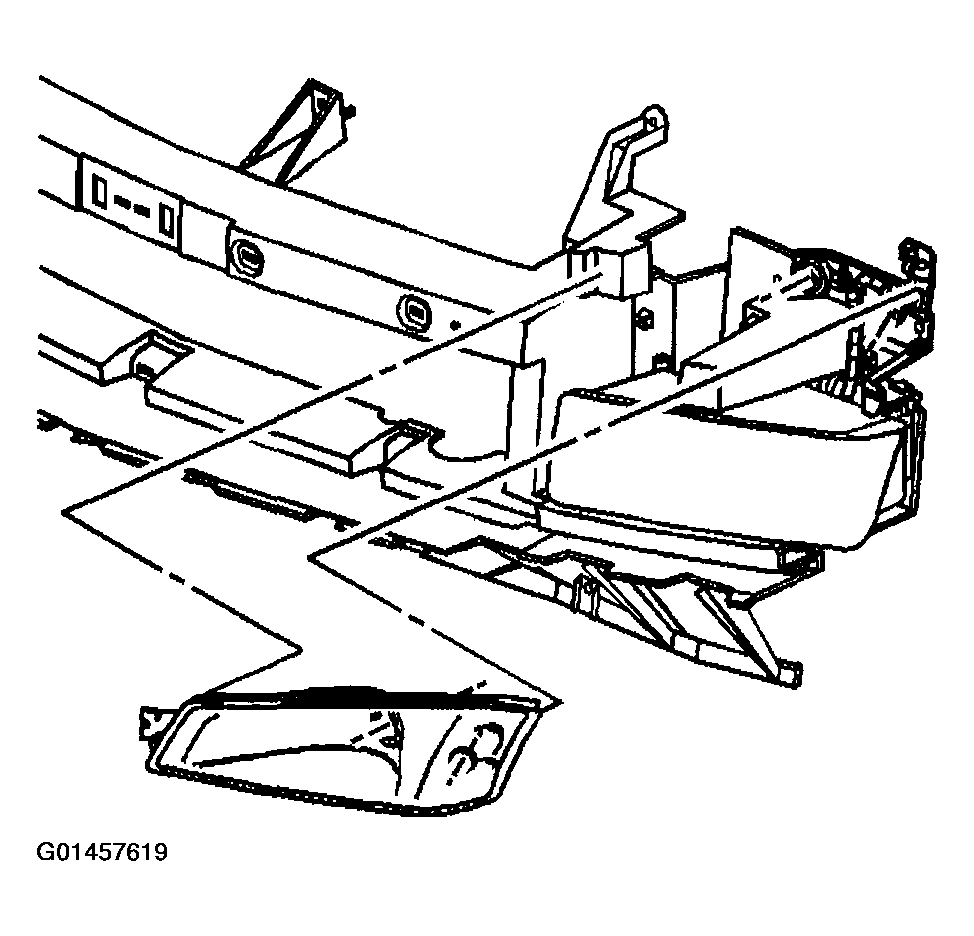

Pull out the park/turn assembly in order to access the electrical connector.
Disconnect the electrical connector.

Fig 2: Removing Procedure Park/Turn Signal Lamp (Avalanche) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

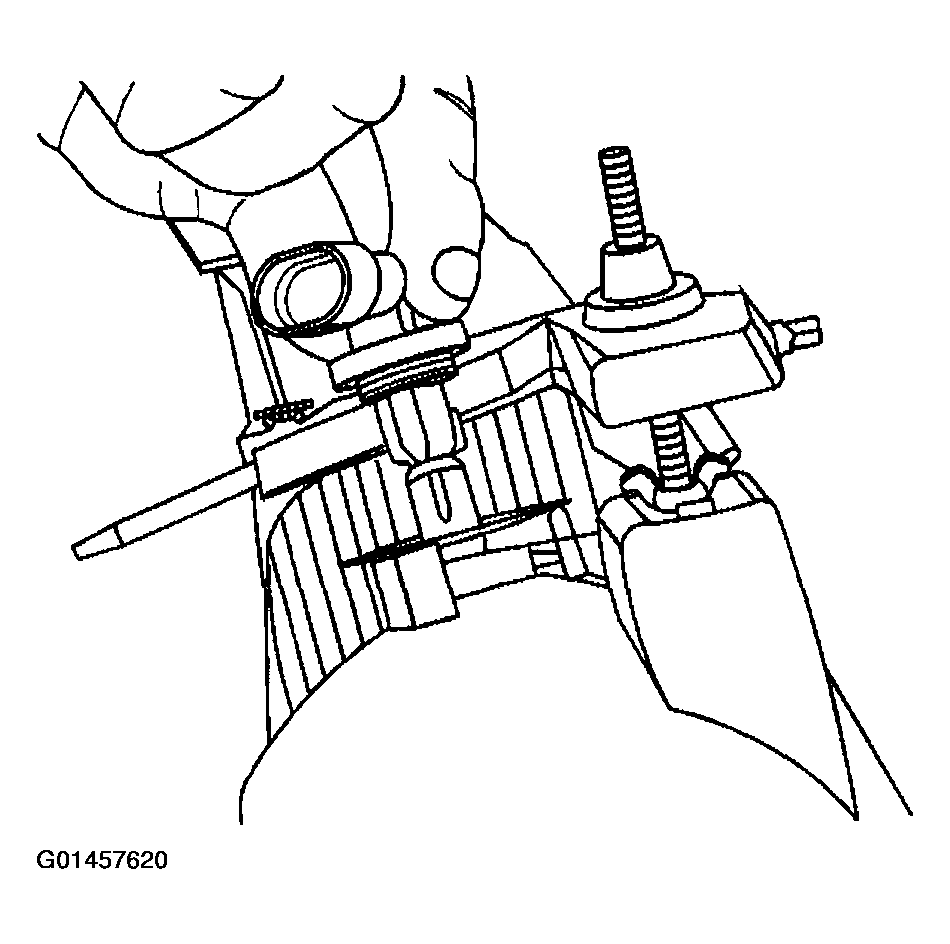

Remove the bulb from the park/turn assembly by twisting the bulb counterclockwise.

Fig 3: Removing Procedure Park/Turn Signal Lamp (Avalanche) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
