Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the new bulb to the park/turn assembly by twisting the bulb clockwise in order to lock in place.
Connect the electrical connector to the bulb.
Install the park/turn assembly.

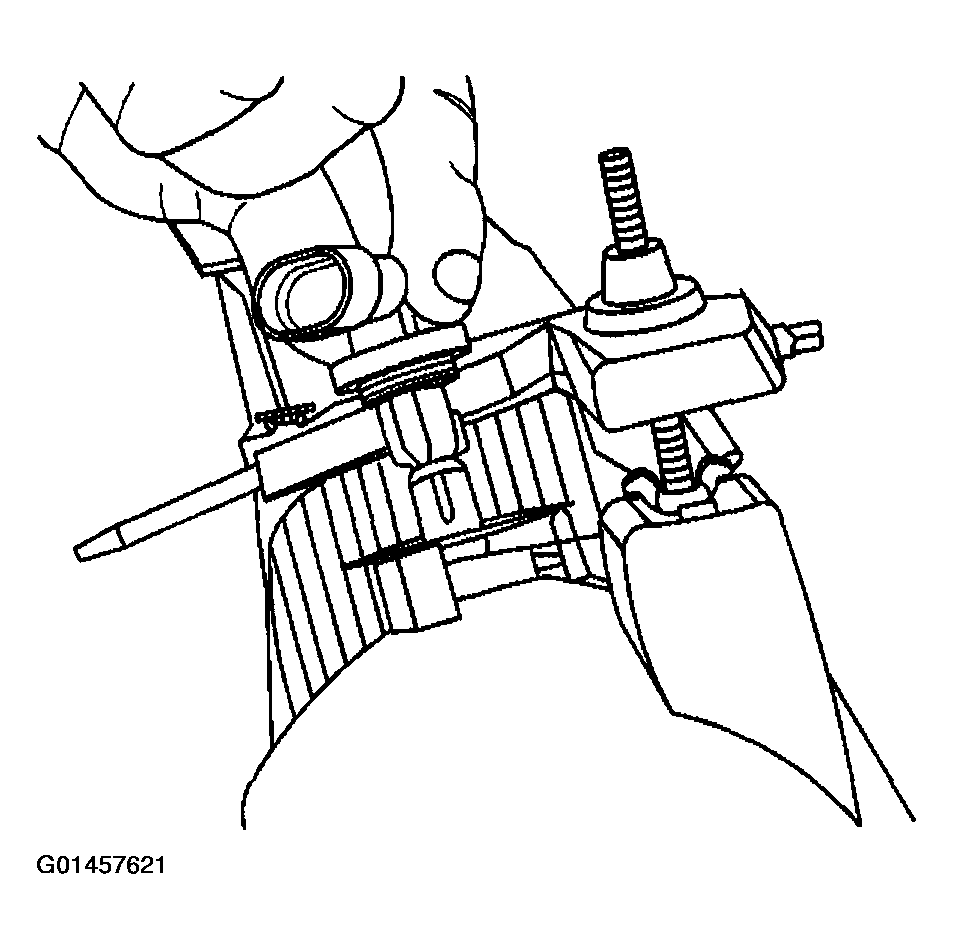

Fig 1: Installing Procedure Park/Turn Signal Lamp (Avalanche) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Install the park/turn retainer pins.

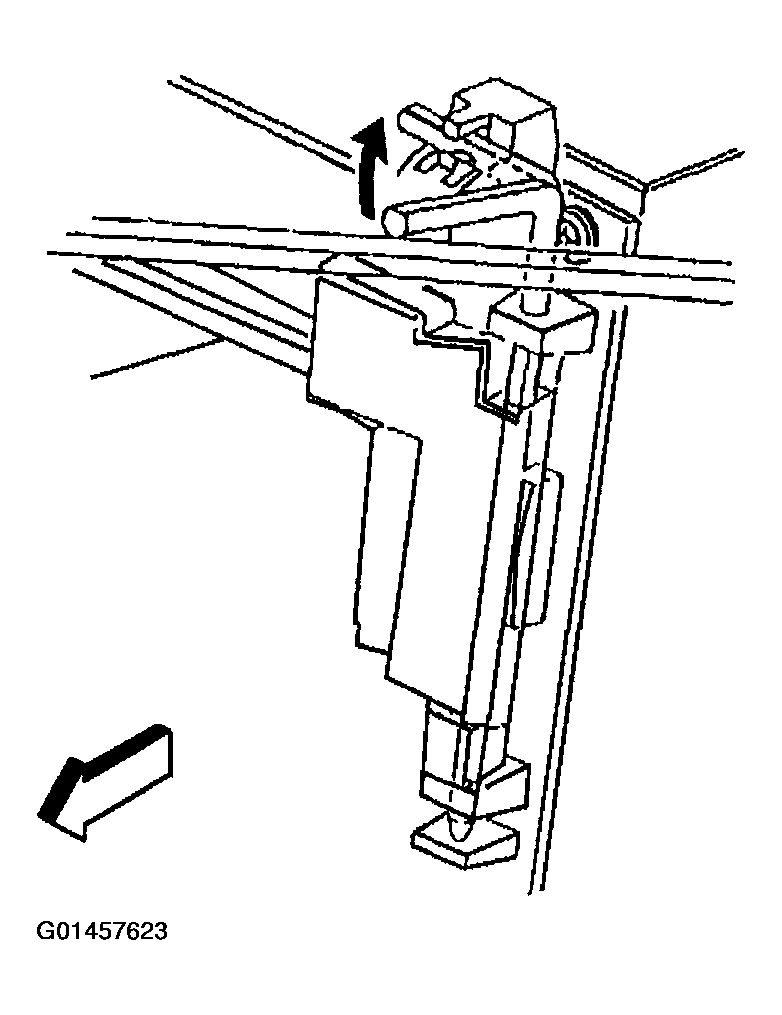

Fig 2: Installing Procedure Park/Turn Signal Lamp (Avalanche) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Rotate and lock the pins in place.
Inspect the operation.

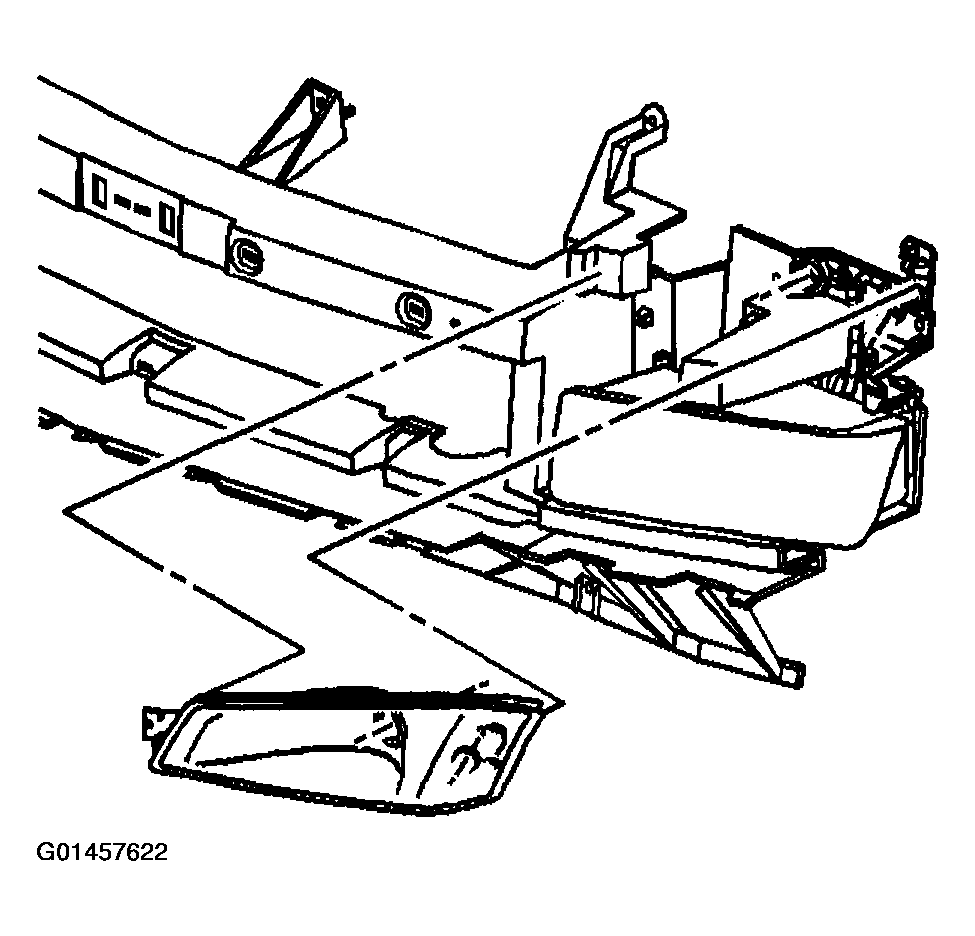

Fig 3: Installing Procedure Park/Turn Signal Lamp (Avalanche) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
