Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Locate the marker lamp gasket towards the wheel and gently lift the gasket edge to expose the service slot.
Insert a stiff wire as shown into the slot and push to release the marker lamp (1,3) locking tab from the flare.

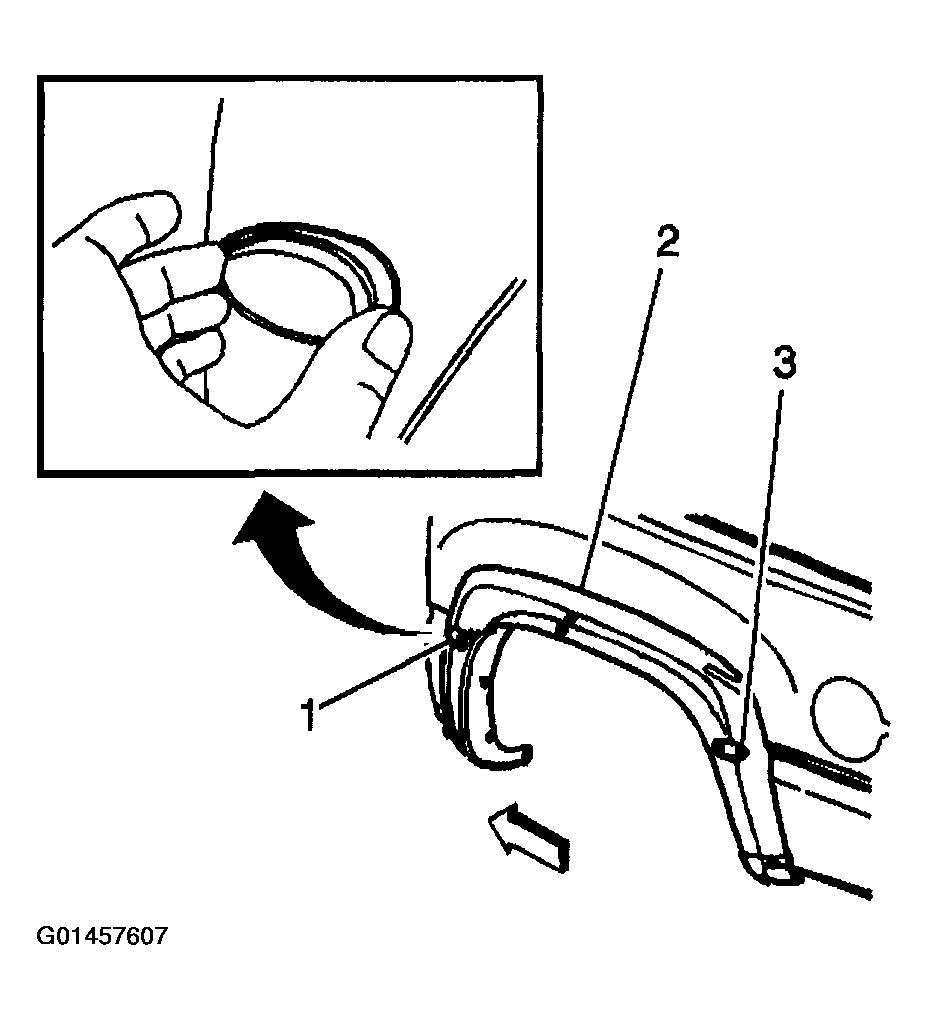

Fig 1: Removing Procedure Marker Lamp - Front Side (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Grasp the marker lamp (1,3) and pull towards the wheel to remove.

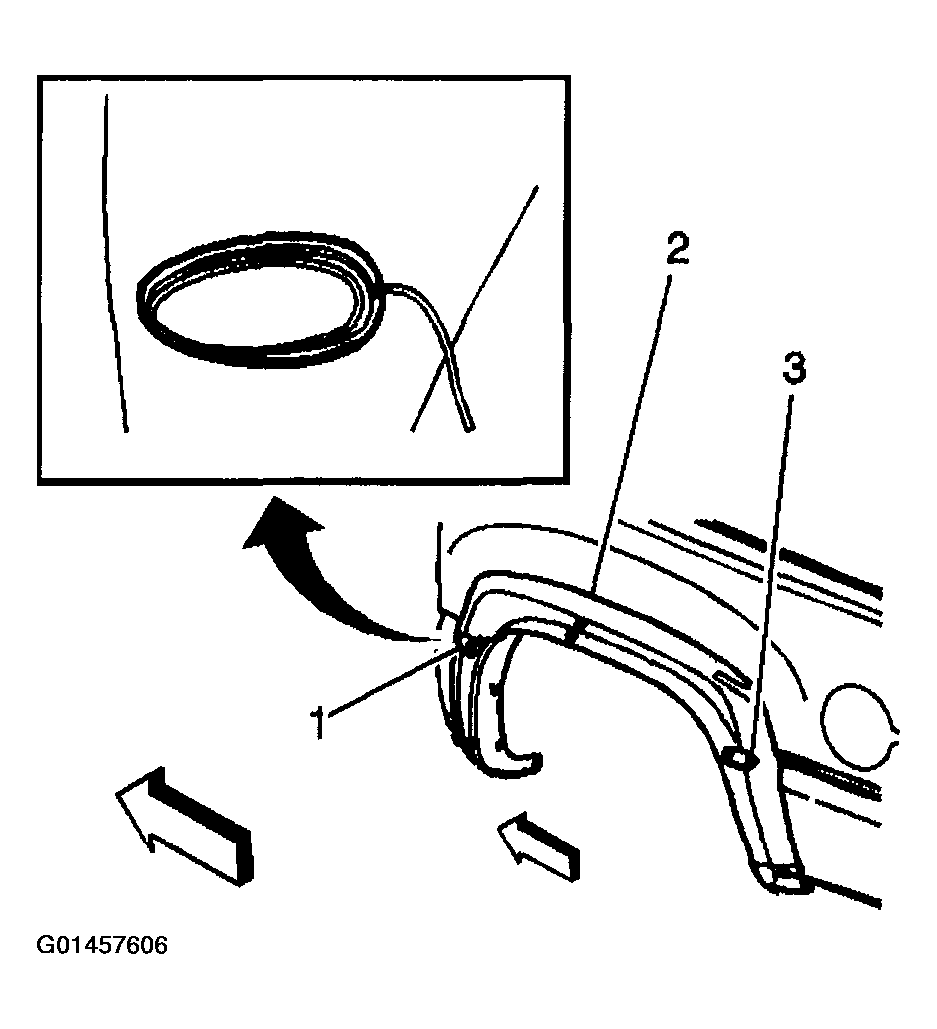

Fig 2: Removing Procedure Marker Lamp - Front Side (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
To remove the bulb socket from the marker lamp, turn the socket counterclockwise.
Pull the bulb to remove the bulb socket.

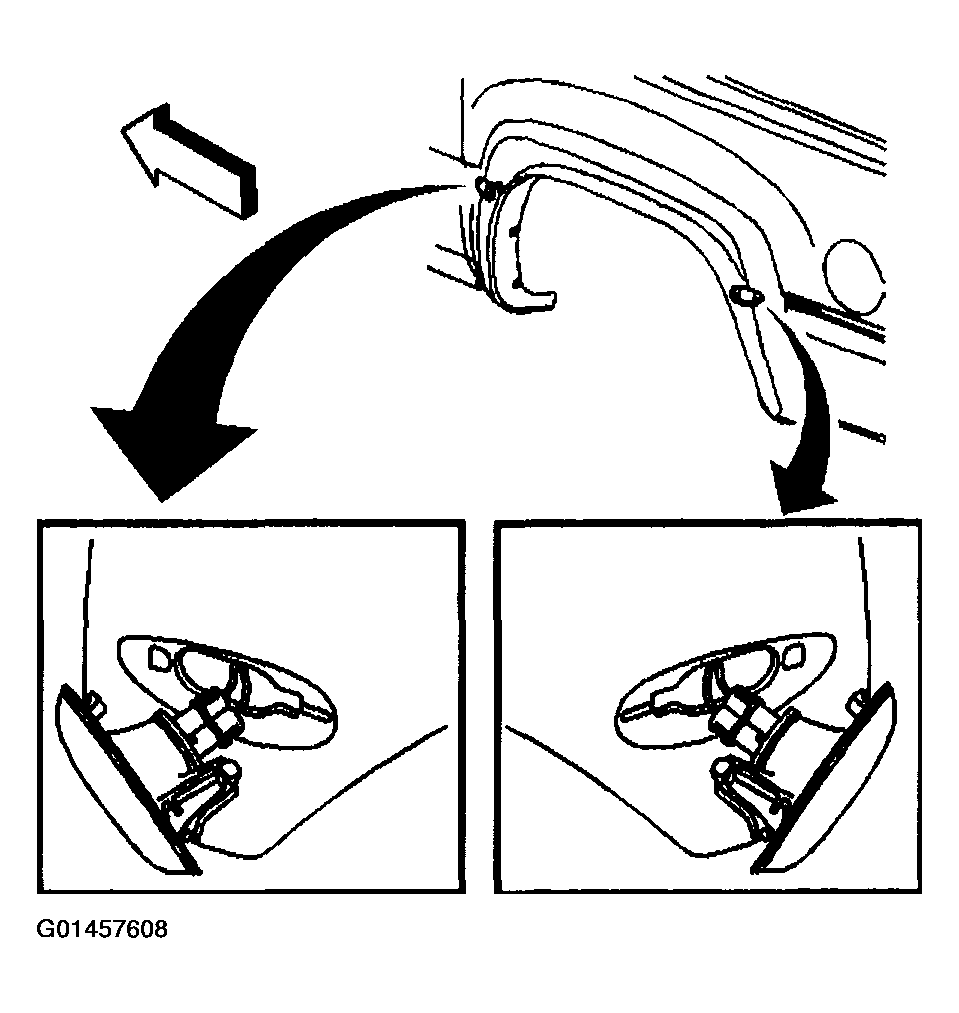

Fig 3: Removing Procedure Marker Lamp - Front Side (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
