Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the headlamp switch is in the OFF position.
  2. Remove the lens from the lamp assembly.

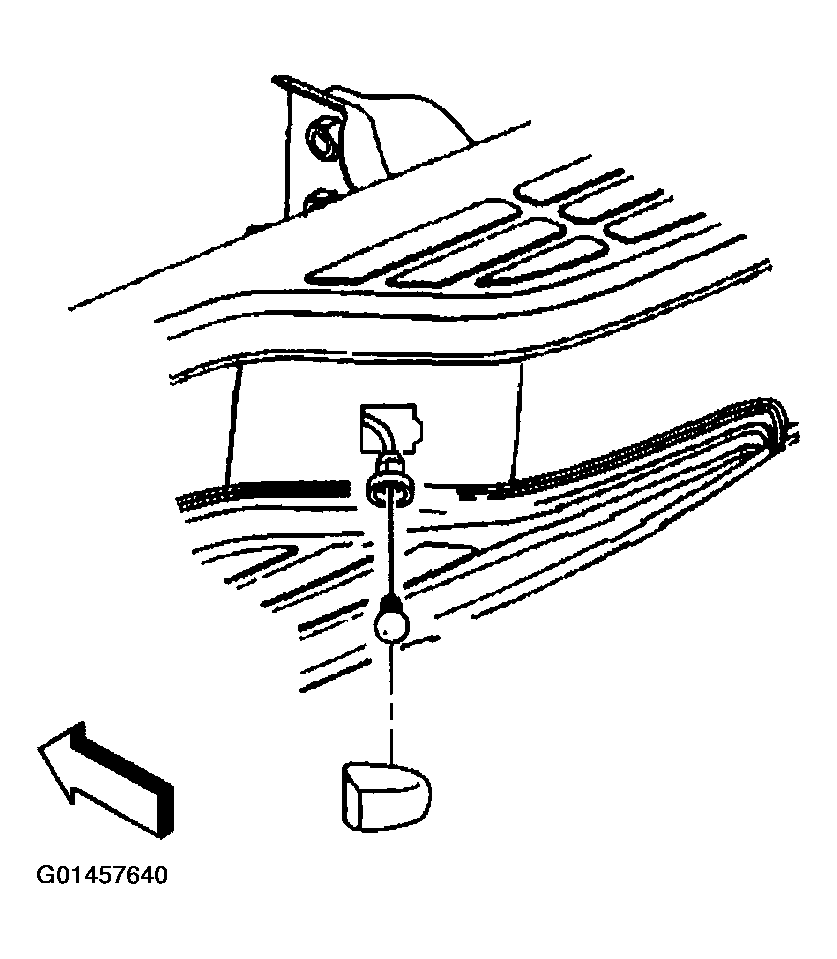

    3. Fig 1: Removing Procedure License Lamp (W/Step Bumper)
    G01457640Courtesy of GENERAL MOTORS CORP.
  3. Remove the bulb.
