Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster bezel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Remove the fog lamp switch and cargo switch from the housing.
  3. Disconnect the electrical connector(s) from the fog lamp switch.
  4. Remove the fog lamp and cargo lamp switch from the housing.

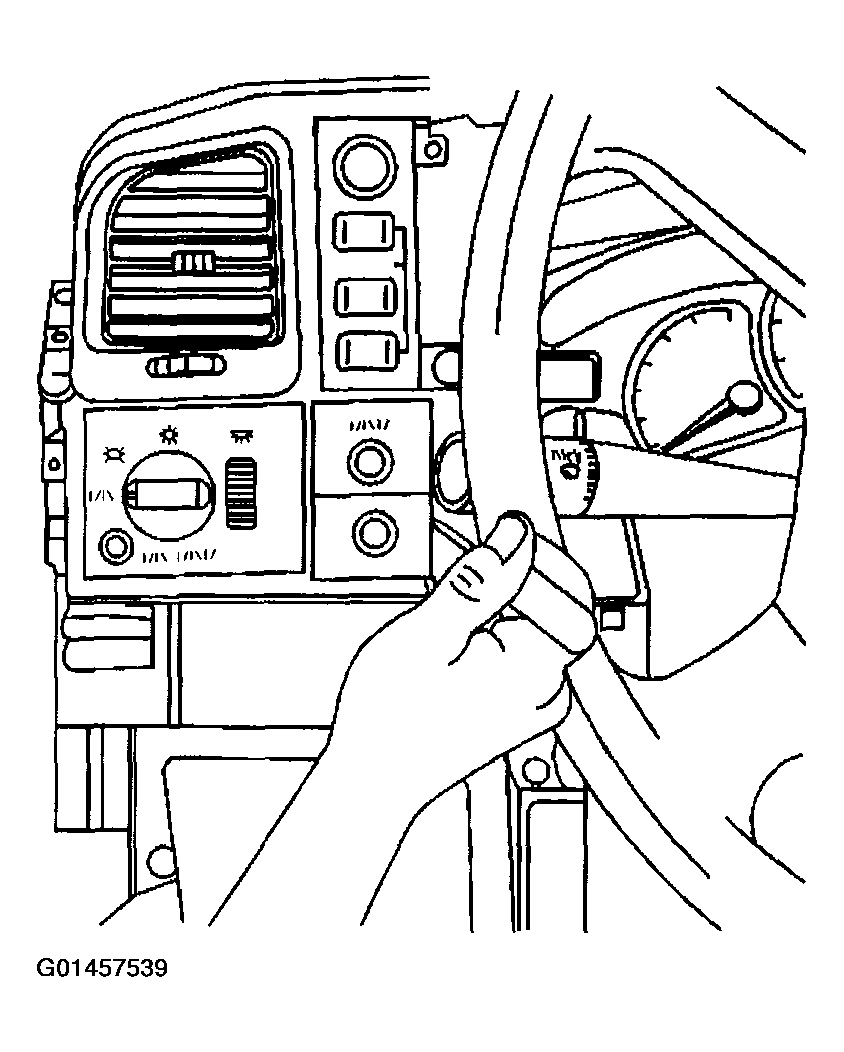

    5. Fig 1: Removing Fog Lamp & Cargo Lamp Switch From Housing
    G01457539Courtesy of GENERAL MOTORS CORP.
