Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector(s) to the fog lamp and cargo lamp switch.

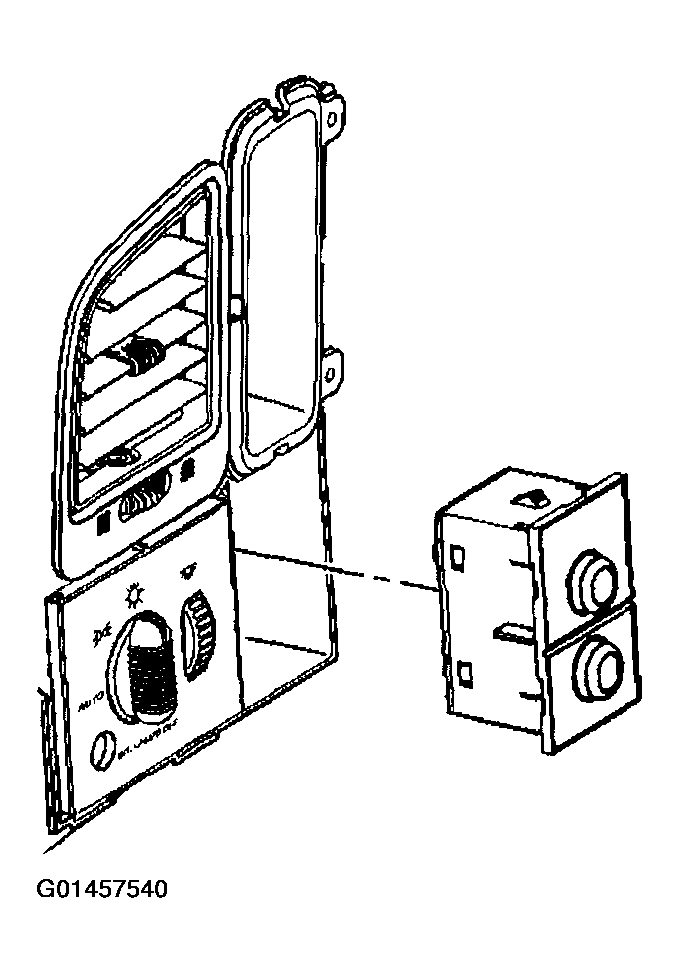

    2. Fig 1: Installing Fog Lamp & Cargo Lamp Switch From Housing
    G01457540Courtesy of GENERAL MOTORS CORP.
  2. Install the fog lamp switch into the housing.
  3. Install the IP trim bezel to the instrument panel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE .
