Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the instrument panel storage compartment door by pressing in the tab.
  2. With one hand holding the plunger of the switch, use a small screw driver to push in the tabs on each side while pulling outwards.
  3. Pull the switch assembly from the I/P.
  4. Disconnect the electrical connector.

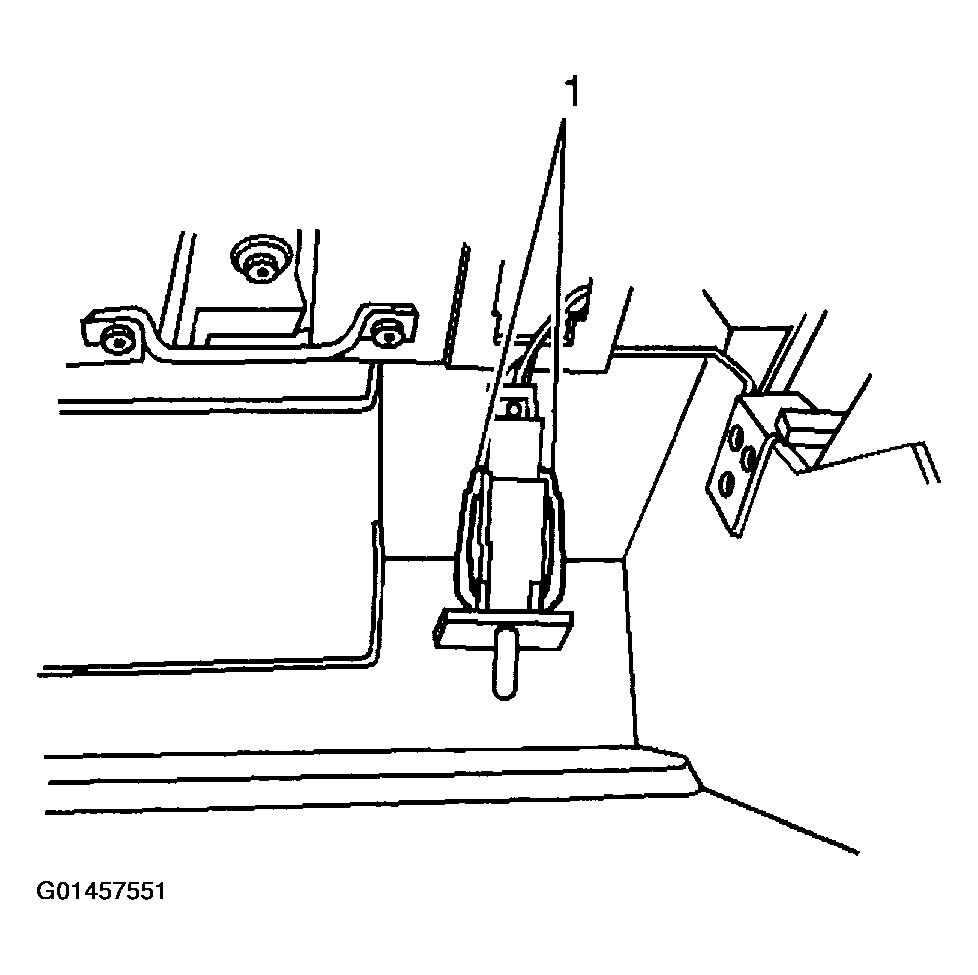

    5. Fig 1: Disconnecting Electrical Connector
    G01457551Courtesy of GENERAL MOTORS CORP.
  5. Remove the bulb (1).

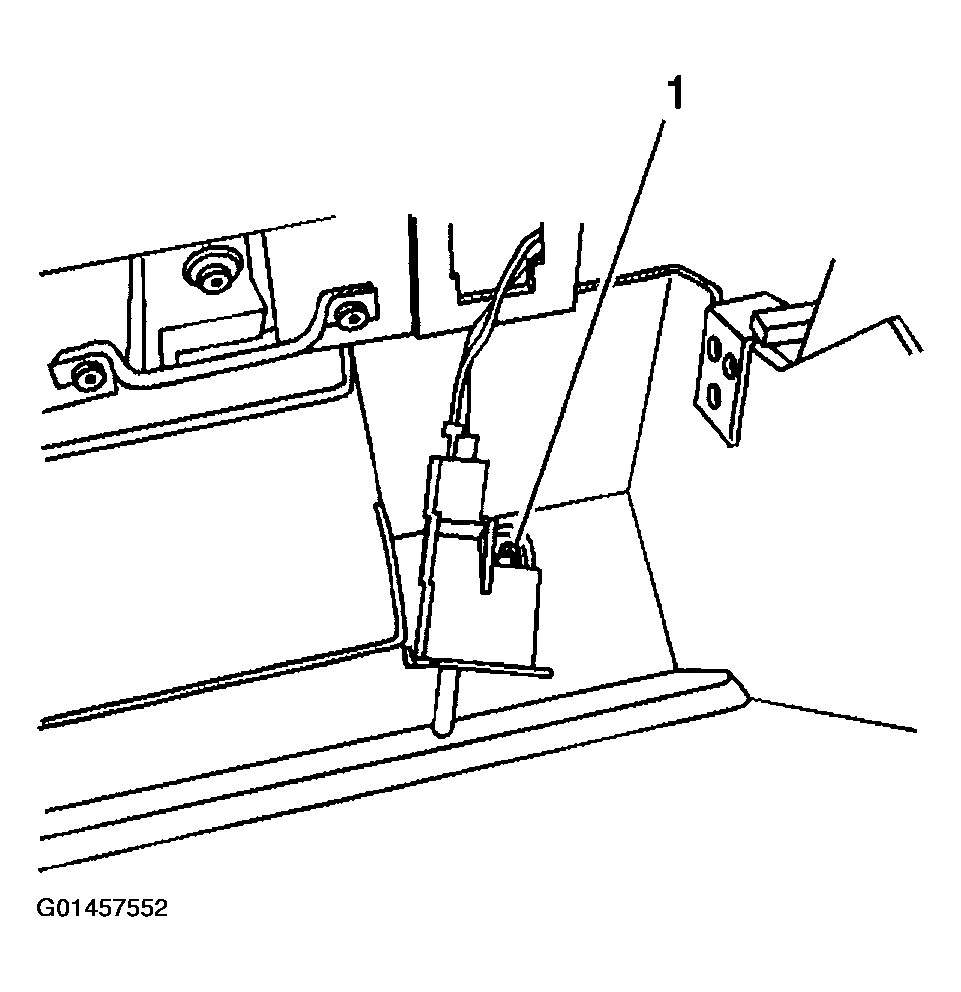

    6. Fig 2: Removing Bulb
    G01457552Courtesy of GENERAL MOTORS CORP.
