Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise the lift gate window.
Remove the retainers from the stop lamp.

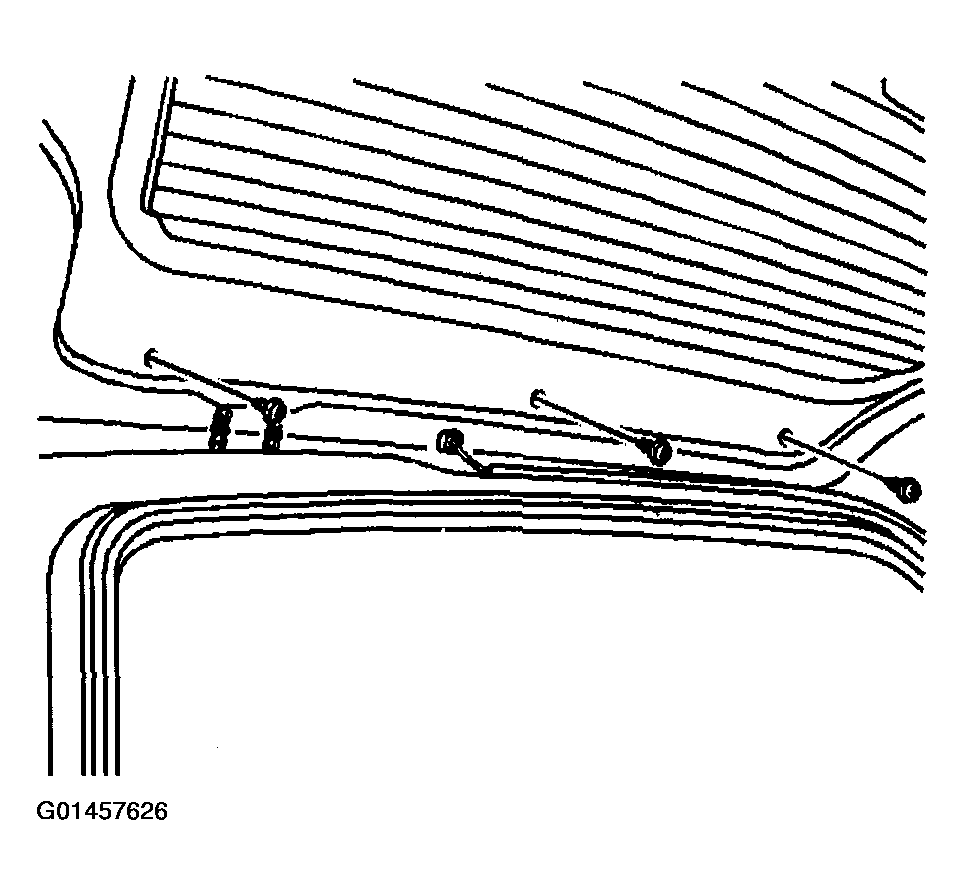

Fig 1: Removing Procedure High Mounted Stop Lamp (Cadillac) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Lower the lift gate window.
Raise the stop lamp to disconnect the electrical connector from the lamp.
Remove the center high-mounted stop lamp from the vehicle.

Fig 2: Removing Procedure High Mounted Stop Lamp (Cadillac) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
