Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the fog lamp.
  2. Remove the push pin retainers that attach the fog lamp to the bracket.
  3. Remove the fog lamp adjuster bolt and spring from the adjuster nut.
  4. Remove the fog lamp from the fog lamp bracket.
  5. Remove the fog lamp bracket bolts and bracket, as needed.

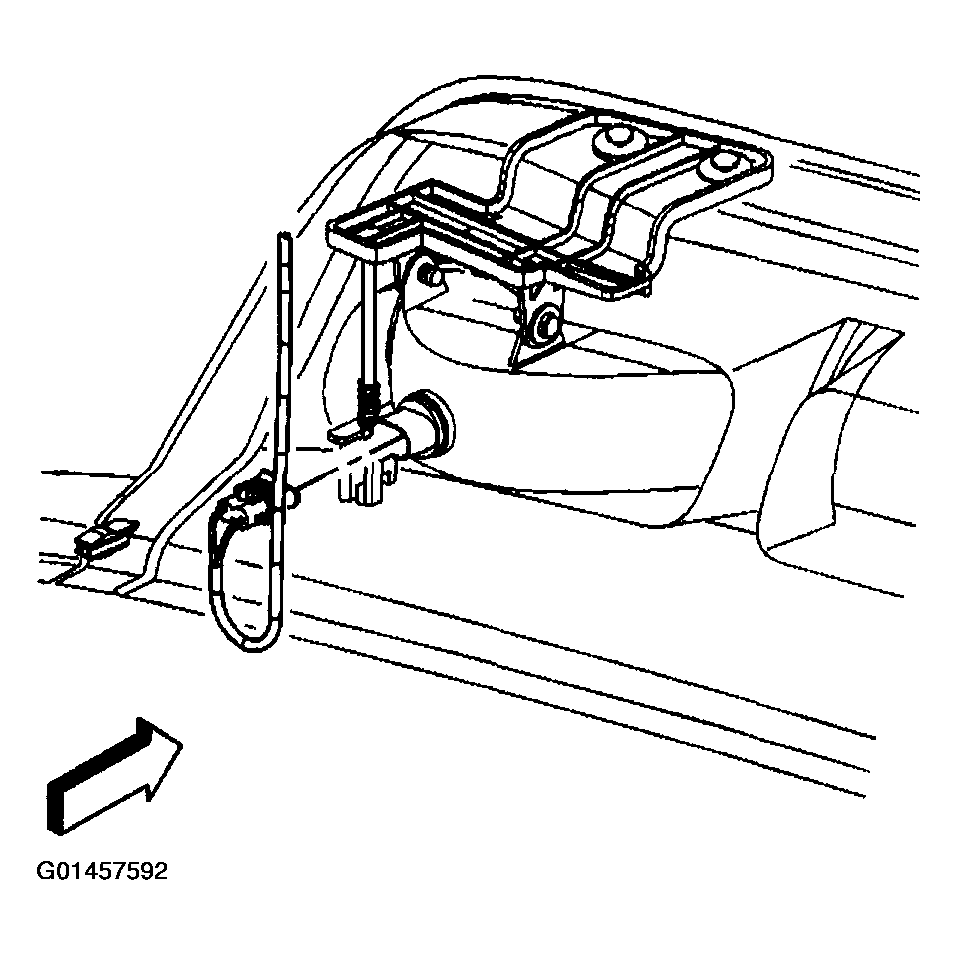

    6. Fig 1: Removing Procedure Fog Lamp - Front (Except Z71)
    G01457592Courtesy of GENERAL MOTORS CORP.
