Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Install the fog lamp bracket bolts and bracket, as needed.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

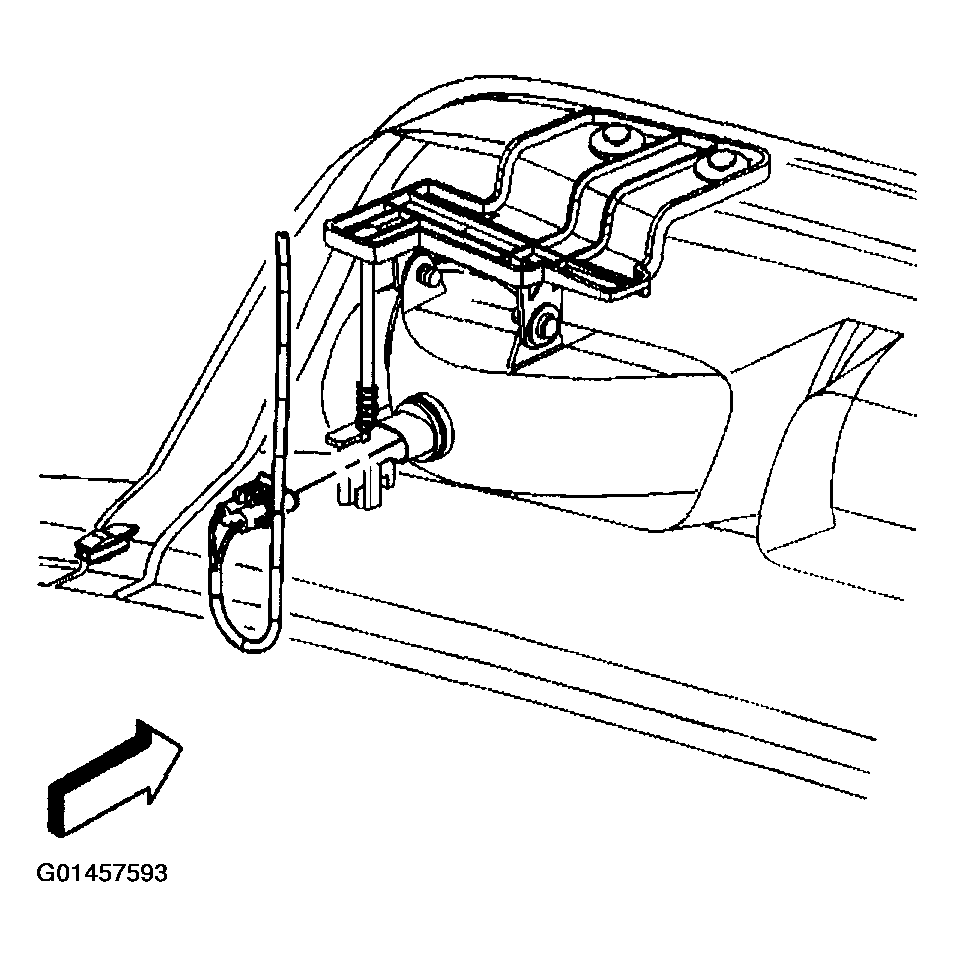

    2. Fig 1: Installing Procedure Fog Lamp - Front (Except Z71)
    G01457593Courtesy of GENERAL MOTORS CORP.
  2. Install the fog lamp to the fog lamp bracket.
  3. Install the fog lamp adjuster bolt and spring to the adjuster nut.
  4. Install the push pin retainers that attach the fog lamp to the bracket.
  5. Connect the electrical connector to the fog lamp.
  6. Inspect the fog lamp aiming.
