Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electrical connector.
    NOTE: Refer to Halogen Bulb Caution In Cautions and Notices.
  2. Remove the bulb from the fog lamp assembly by twisting the bulb counterclockwise and pulling the bulb out.

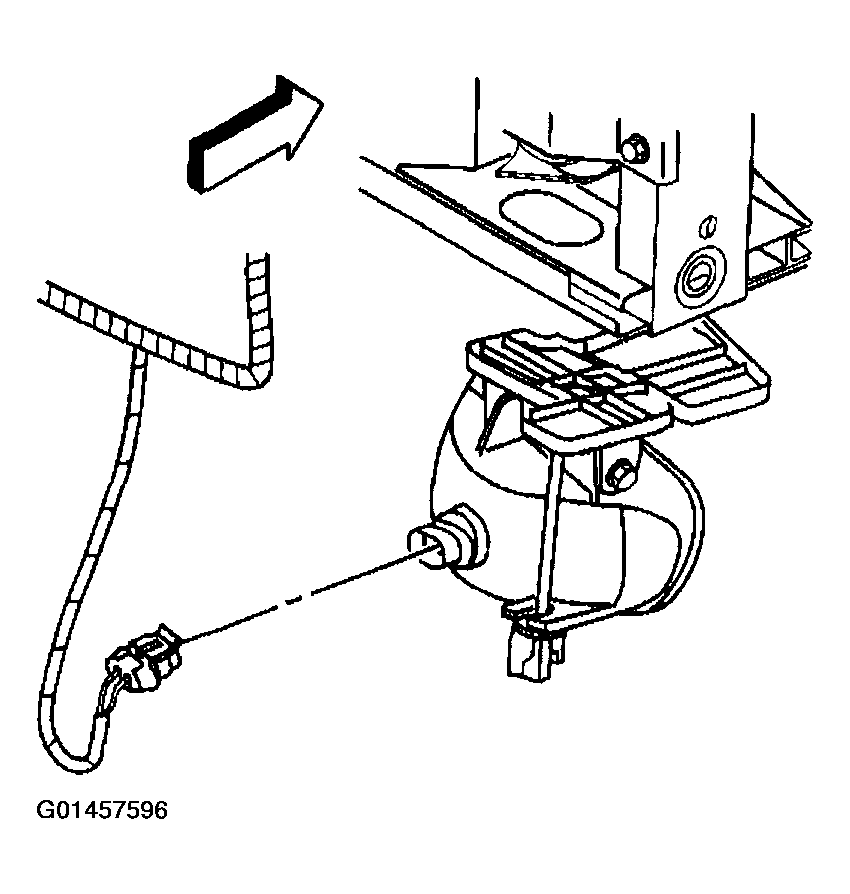

    3. Fig 1: Removing Procedure Fog Lamp Bulb Replacement - Front (Old Style)
    G01457596Courtesy of GENERAL MOTORS CORP.
