Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lamp assembly to the vehicle.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the fasteners to the lamp assembly.

    Tighten

    Tighten the fasteners to 1.1 N.m (10 lb in).

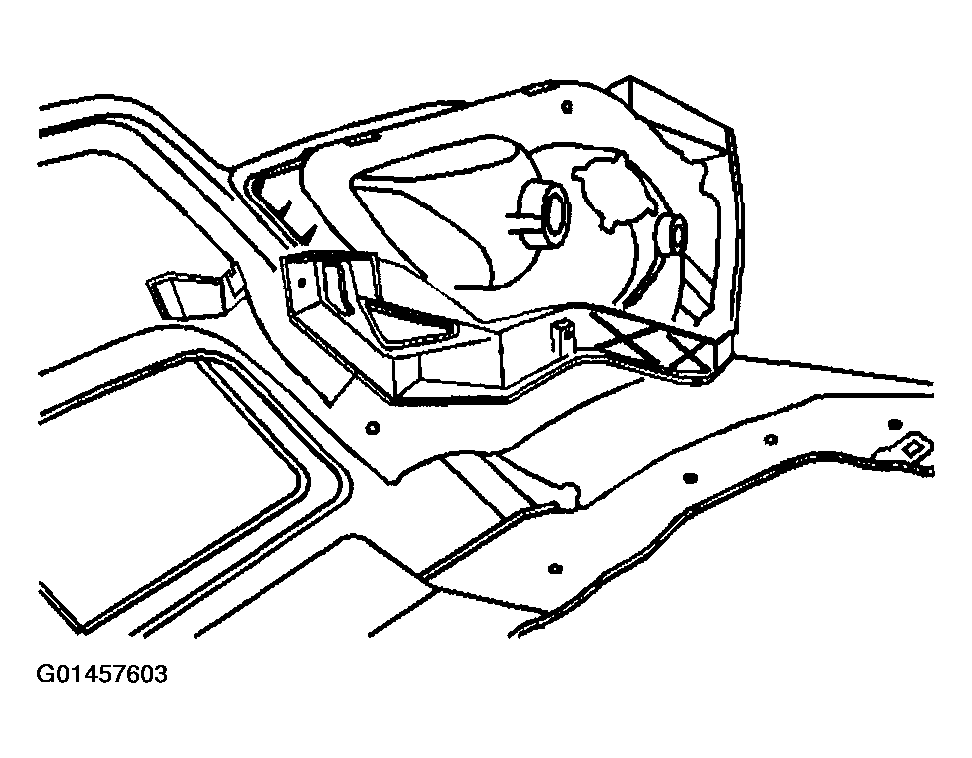

    3. Fig 1: Installing Procedure Daytime Running and Fog Lamp Assembly Replacement (Avalanche)
    G01457603Courtesy of GENERAL MOTORS CORP.
  3. Install the bulbs to the daytime running and fog lamp assembly by turning the bulb 1/4 turn clockwise.
  4. Connect the electrical harness connectors.
  5. Lower the vehicle.
  6. Re-aim the fog lamps. Refer to FOG LAMP AIMING PROCEDURE  .
