Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to pry off the exterior courtesy lamp assembly.
  2. Disconnect the electrical wires.

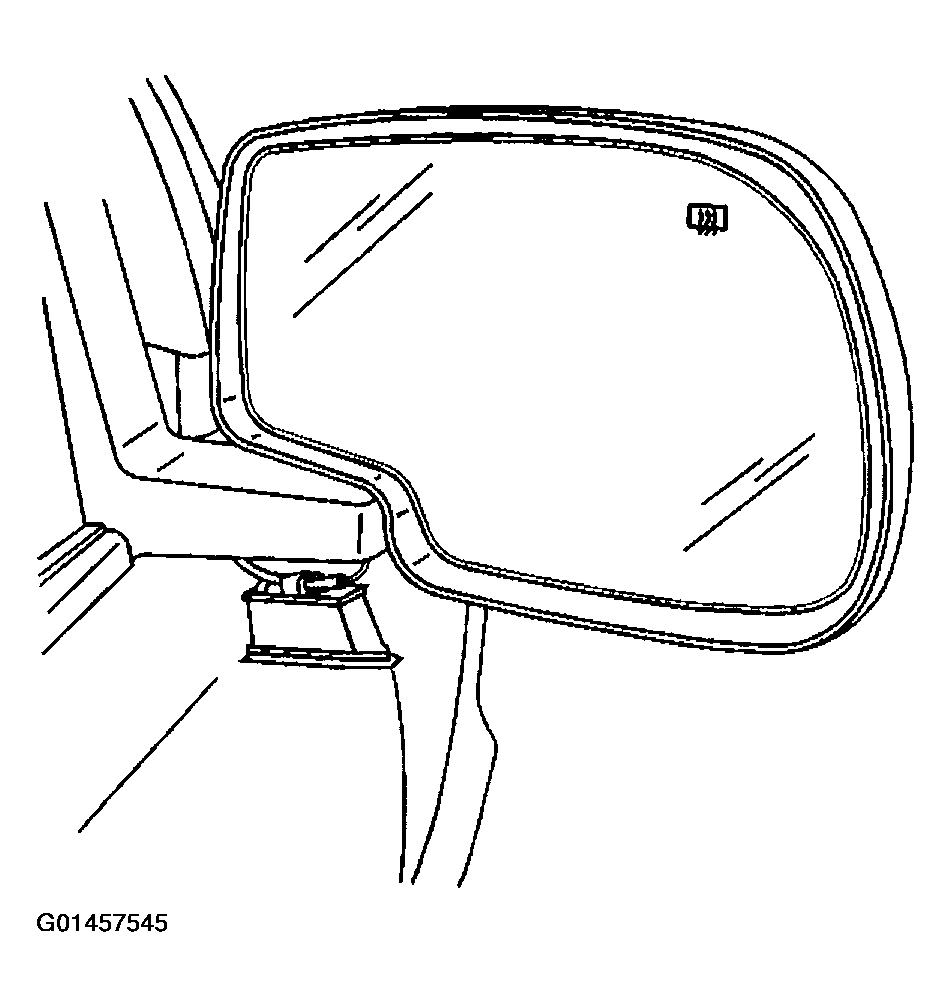

    3. Fig 1: Removing Exterior Courtesy Lamp Assembly
    G01457545Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 retaining screws.
    4. Fig 2: Removing 2 Retaining Screws
    G01457546Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb.
