Interior Backlighting Does Not Dim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

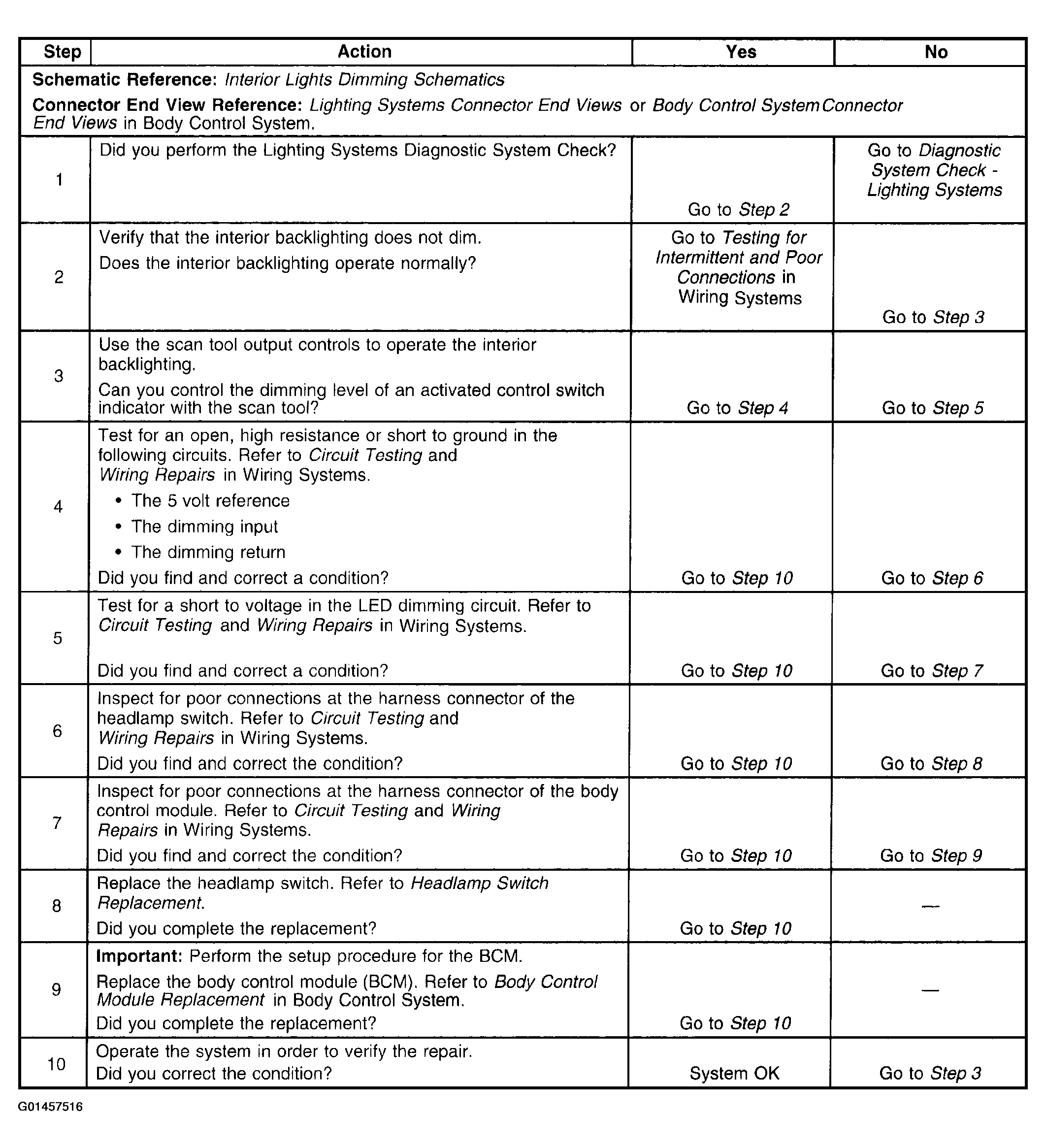

Fig 1: Diagnostic Procedure - Interior Backlighting Does Not Dim
G01457516Courtesy of GENERAL MOTORS CORP.
