Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 5.  This step test determines if the problem exists in the headlamp switch or the BCM.
  2. 10.  After replacement of the BCM you must calibrate the new module for proper operation.

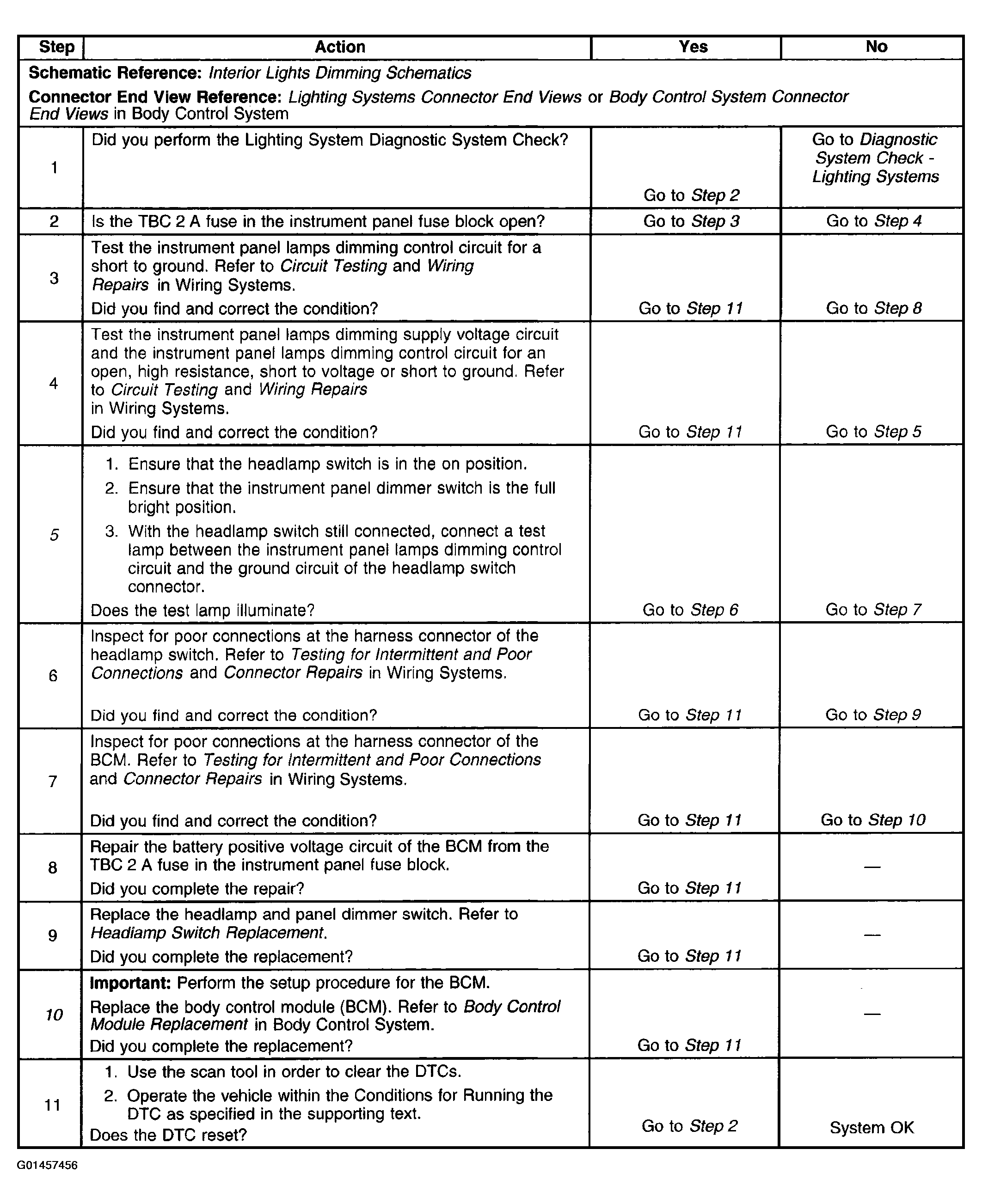

Fig 1: DTC B2610 Diagnostic Procedure
G01457456Courtesy of GENERAL MOTORS CORP.
