Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2.  Listen for an audible click when the high beam relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
  2. 3.  Tests for voltage at the coil side of the high beam relay.
  3. 4.  Verifies that the body control module (BCM) is providing ground to the high beam relay.
  4. 5.  Tests if ground is constantly being applied to the high beam relay.
  5. 6.  Tests if there is opposing voltage present or an open high beam relay control circuit.
  6. 12.  After replacement of the BCM you must calibrate the new module for proper operation.

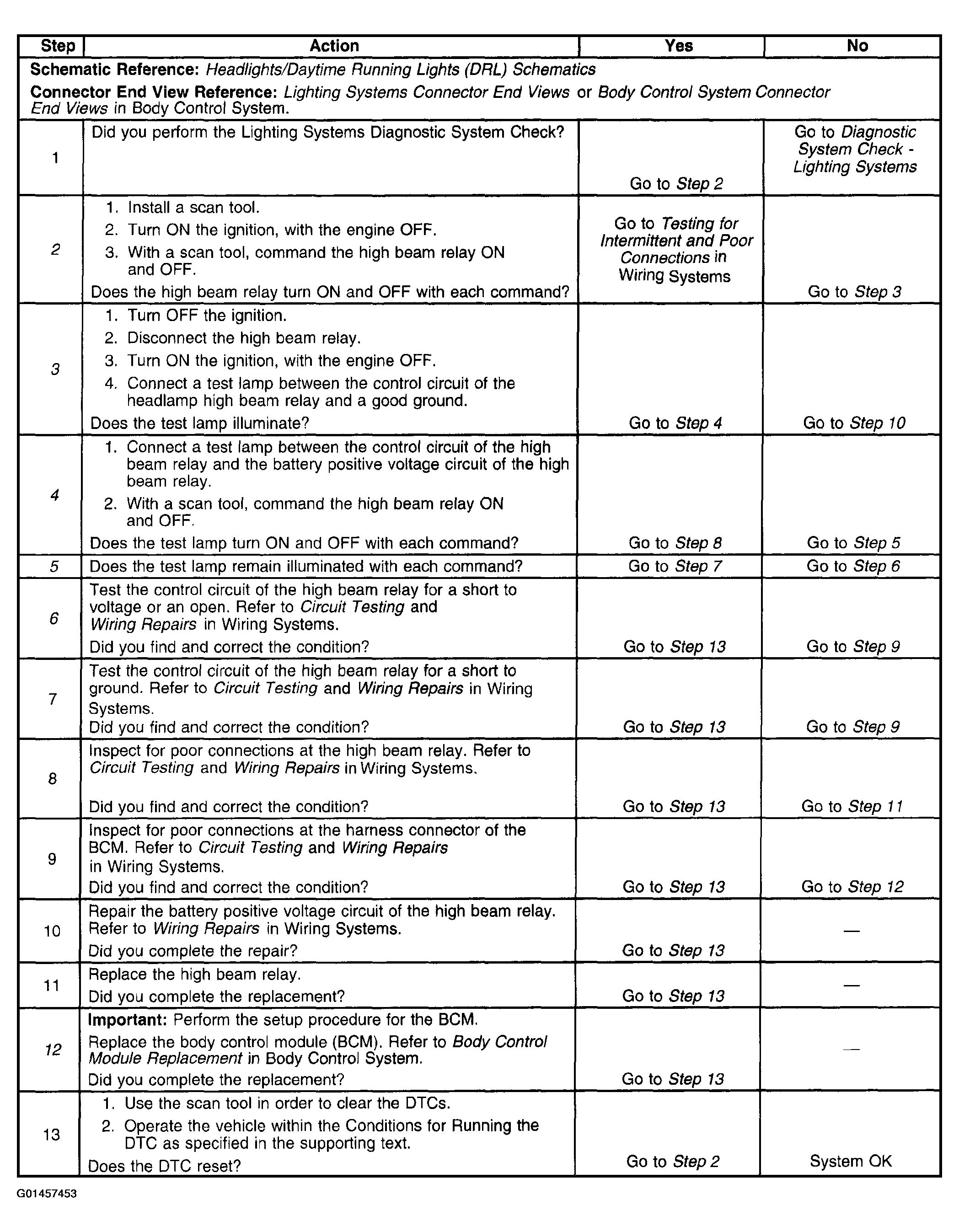

Fig 1: DTC B2580 Diagnostic Procedure
G01457453Courtesy of GENERAL MOTORS CORP.
