Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

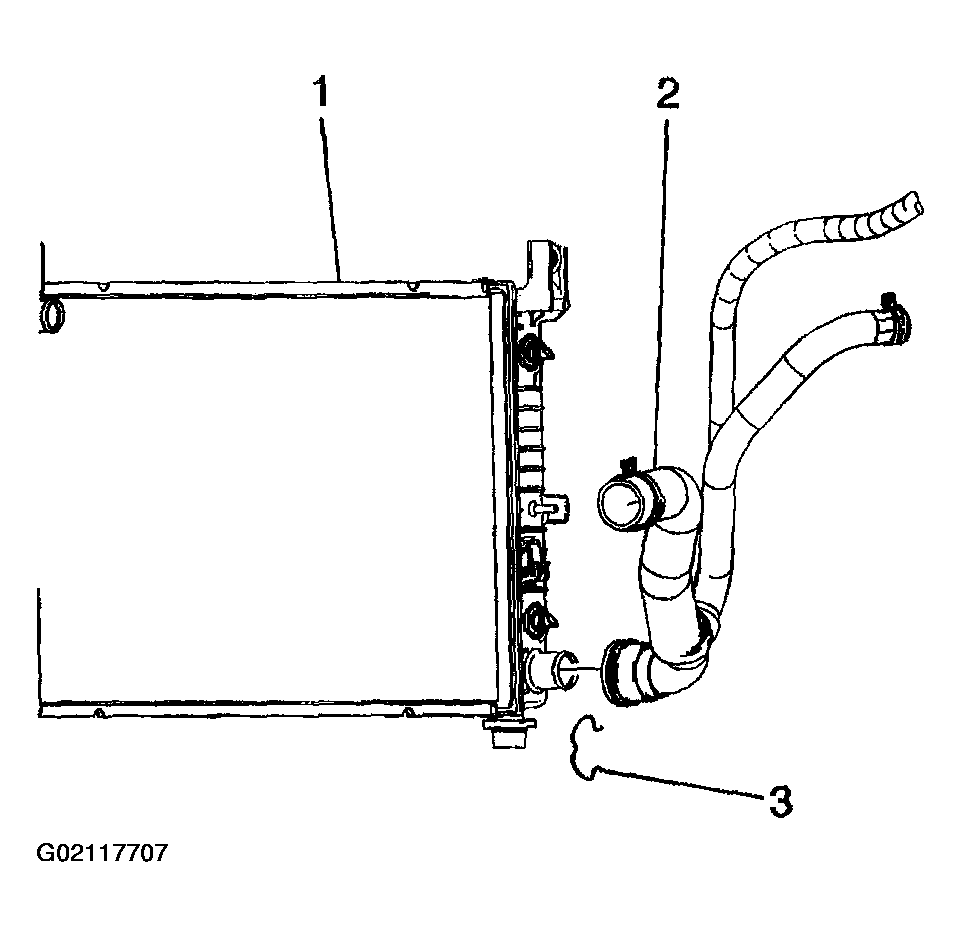

Remove the radiator outlet hose from the radiator. Refer to RADIATOR HOSE QUICK CONNECT FITTING .

Fig 1: Removing Radiator Outlet Hose From Radiator
Courtesy of GENERAL MOTORS CORP.

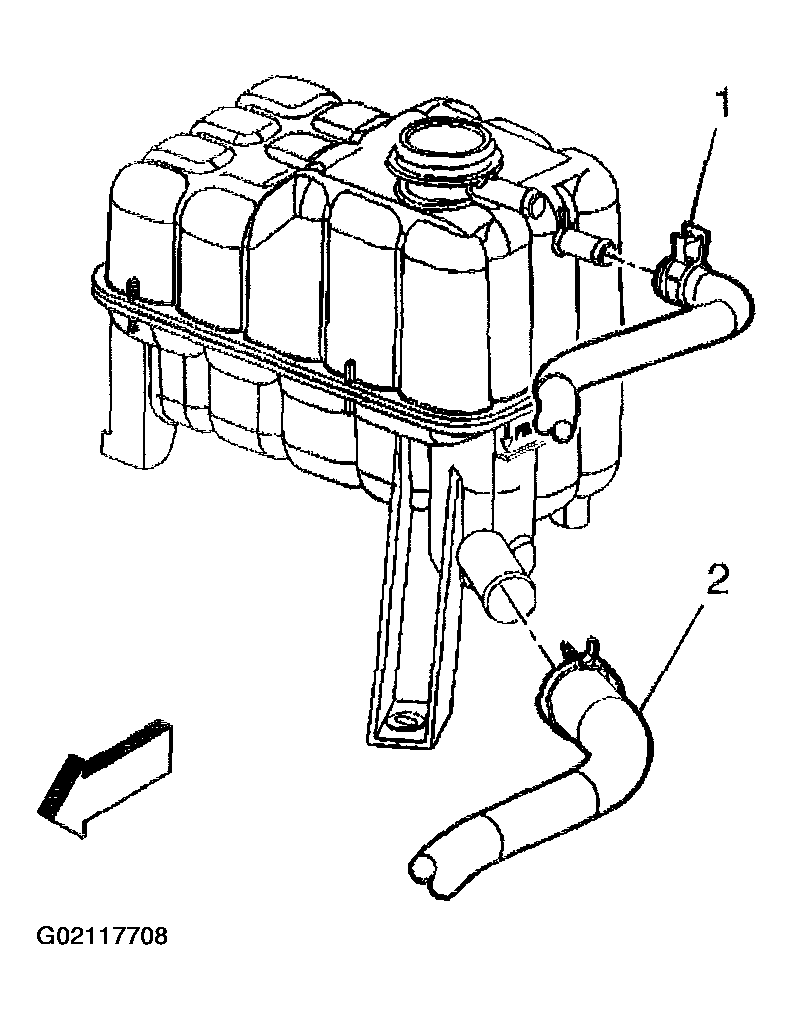

Reposition the surge tank outlet hose clamp from the surge tank.
Remove the surge tank outlet hose (2) from the surge tank.

Fig 2: Removing Surge Tank Outlet Hose From Surge Tank
Courtesy of GENERAL MOTORS CORP.

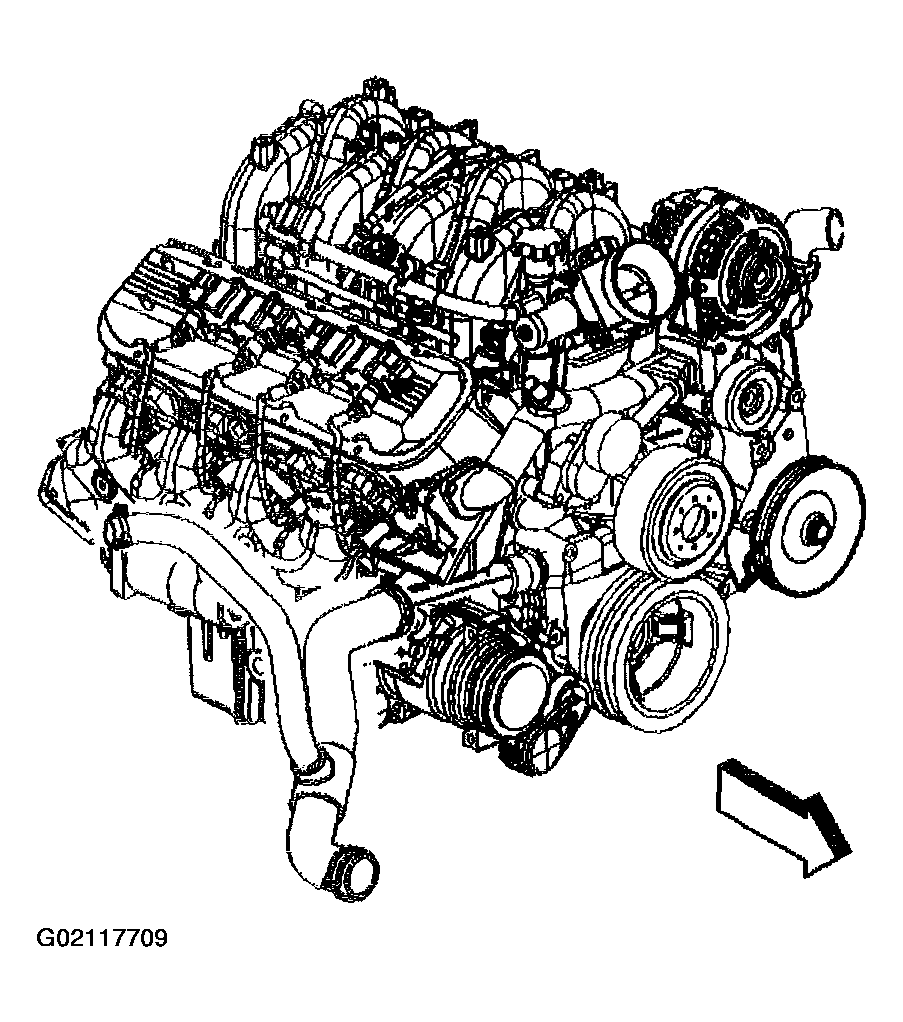

Reposition the outlet hose clamp from the water pump.
Remove the outlet hose from the water pump.

Fig 3: Removing Outlet Hose From Water Pump
Courtesy of GENERAL MOTORS CORP.
