Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Loosen the air cleaner outlet duct clamps at the following locations:
- Throttle body
- Mass airflow/intake air temperature (MAF/IAT) sensor
Remove the air cleaner outlet duct.

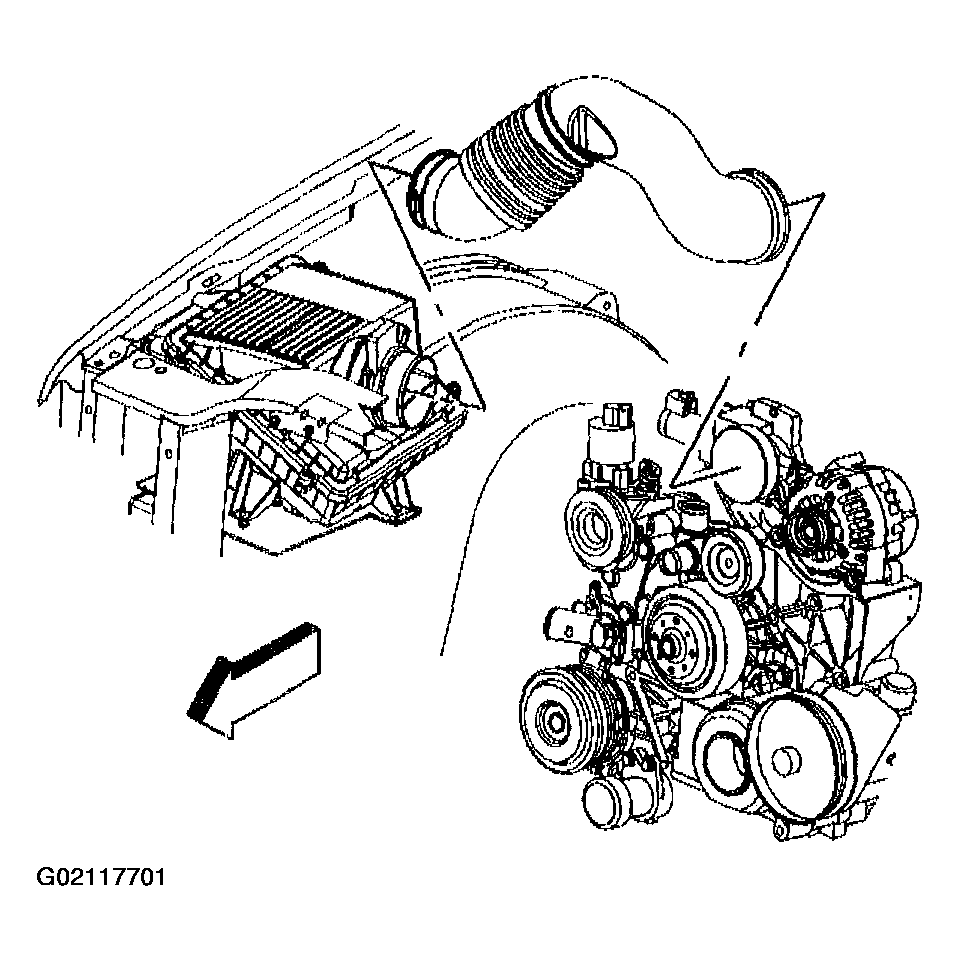

Fig 1: Removing Air Cleaner Outlet Duct
Courtesy of GENERAL MOTORS CORP.
Reposition the outlet hose clamp from the water pump.
Remove the outlet hose from the water pump.

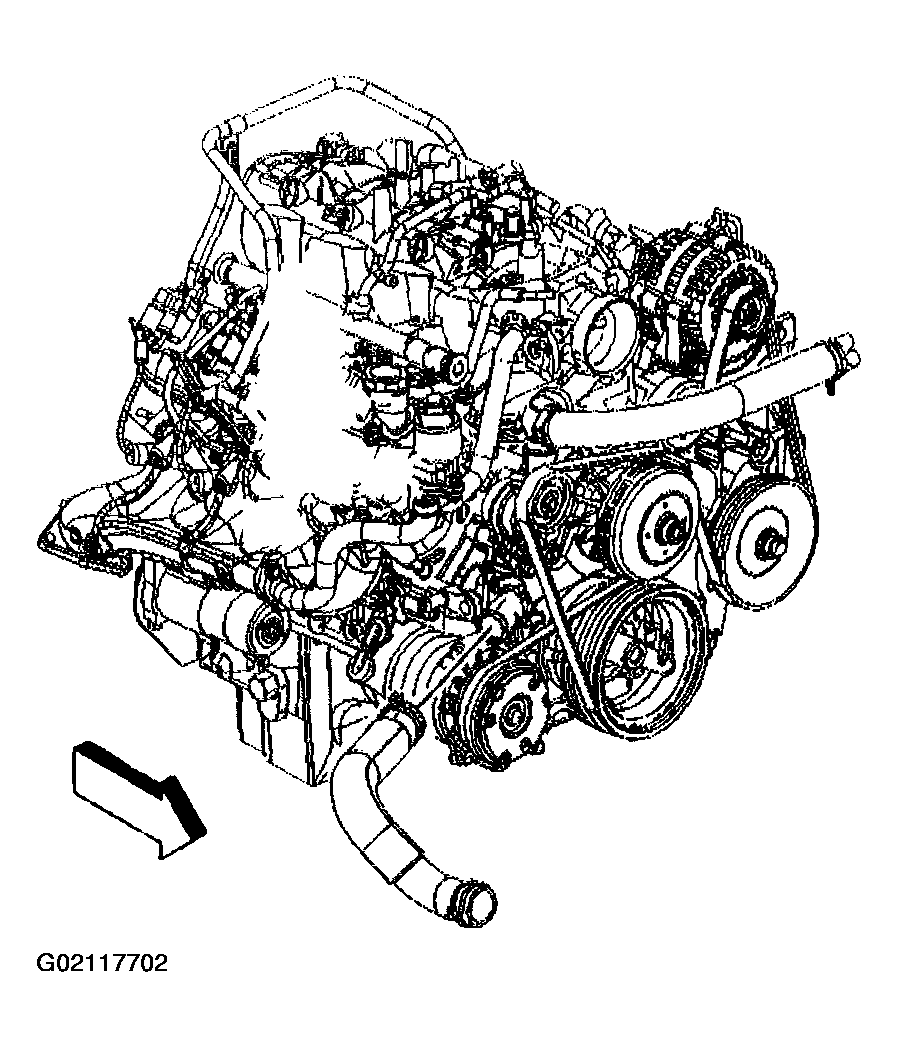

Fig 2: Removing Outlet Hose From Water Pump
Courtesy of GENERAL MOTORS CORP.
Reposition the outlet hose clamp from the radiator.
Remove the outlet hose from the radiator.

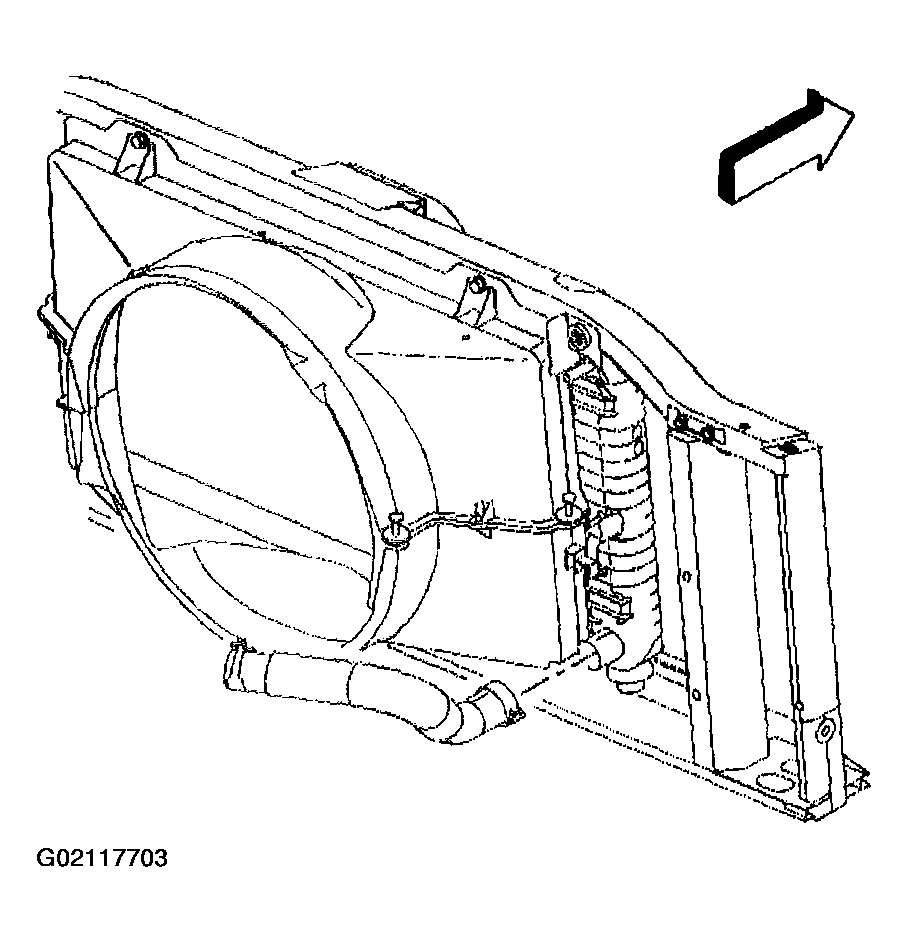

Fig 3: Removing Outlet Hose From Radiator
Courtesy of GENERAL MOTORS CORP.
