Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator air upper baffle retainers.
  2. Remove the radiator air upper baffle.

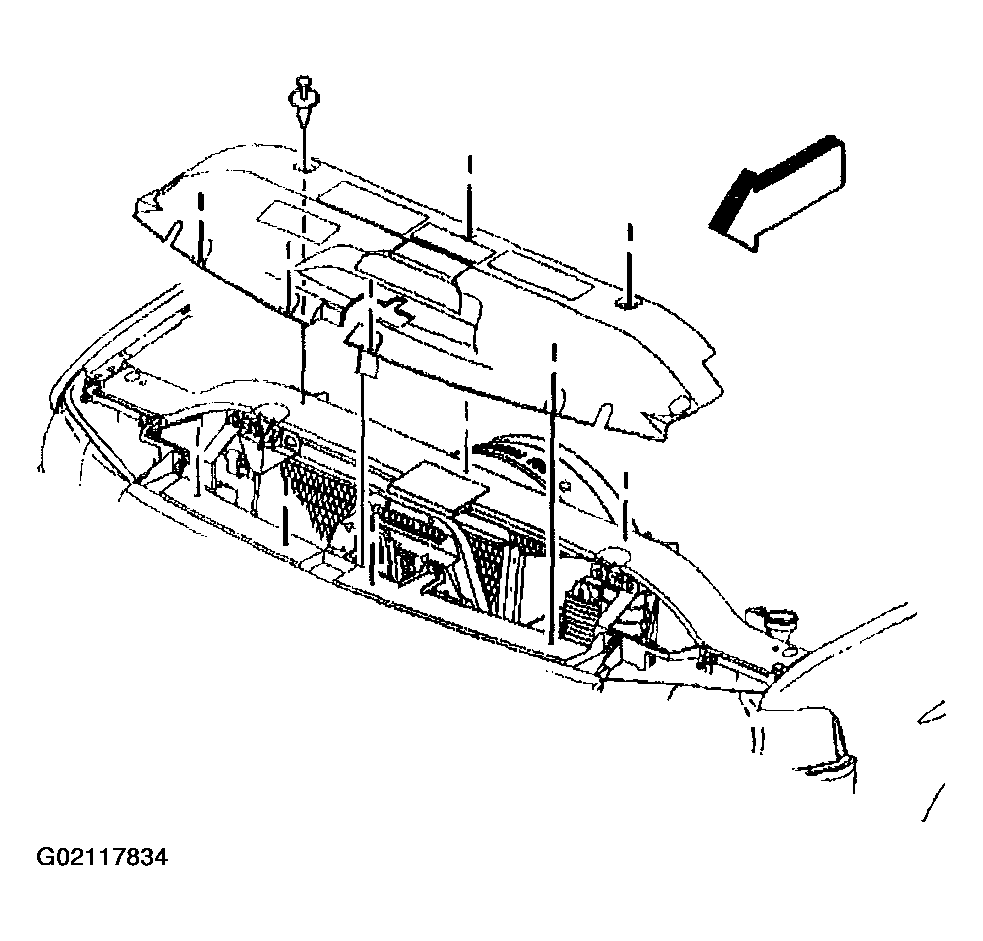

    Fig 1: Removing Radiator Air Upper Baffle
    G02117834Courtesy of GENERAL MOTORS CORP.
