Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper fan shroud.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the fan shroud bolts.
Tighten

Tighten the bolts to 9 N.m (80 lb in).

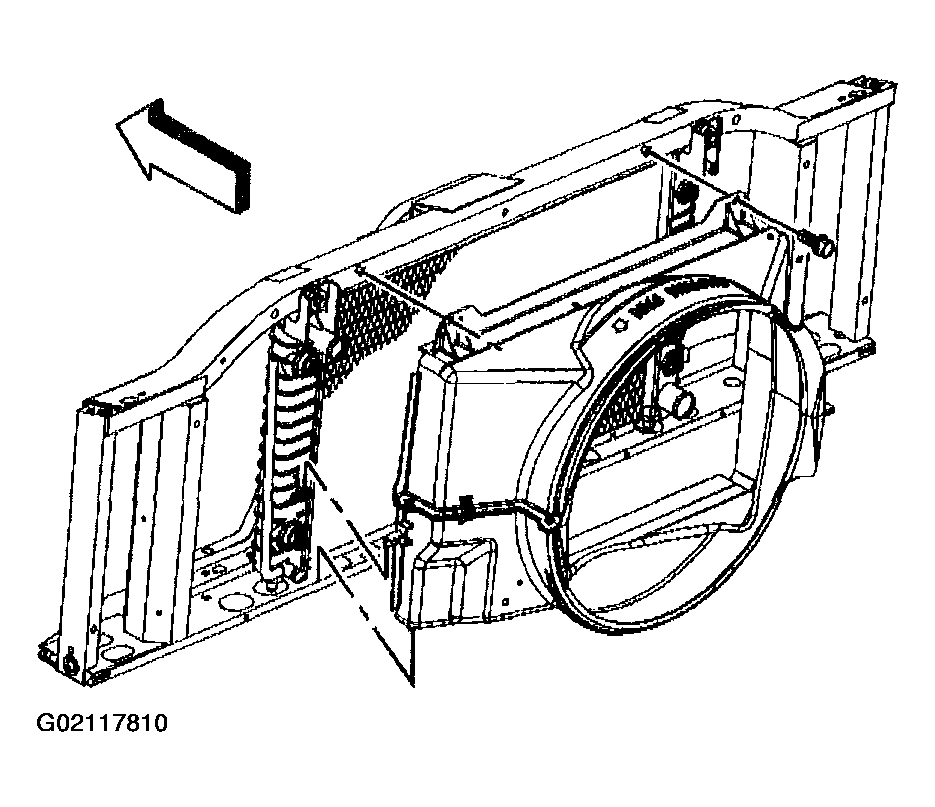

Fig 1: Installing Upper Fan Shroud
Courtesy of GENERAL MOTORS CORP.
Install the fan shroud retainers.
If equipped install the inlet radiator hose retainer to the fan shroud
If equipped install the throttle body heater hose retainer to the fan shroud.

Fig 2: Installing Fan Shroud Retainers
Courtesy of GENERAL MOTORS CORP.
Install the air cleaner outlet duct.
Tighten the air cleaner outlet duct clamp at the throttle body.
Tighten

Tighten the clamp screw to 7 N.m (62 lb in).
Tighten the air cleaner outlet duct clamp at the mass airflow sensor.
Tighten

Tighten the clamp screw to 7 N.m (62 lb in).

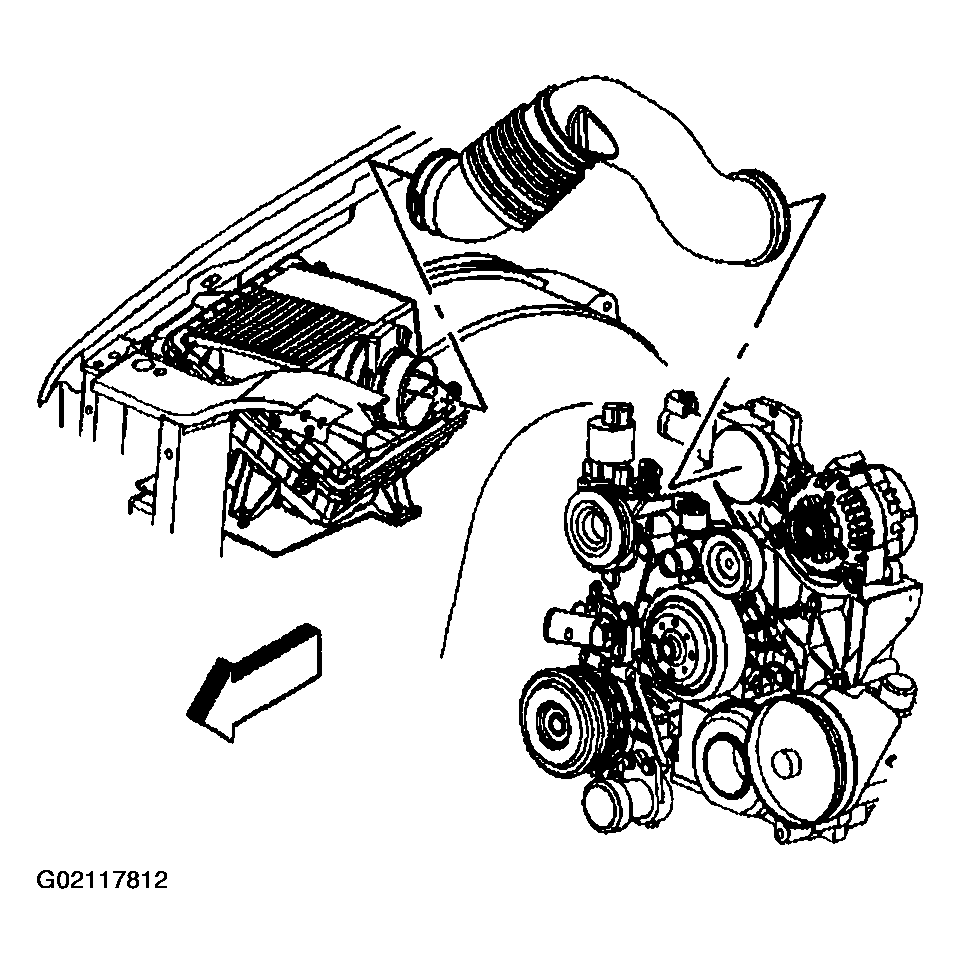

Fig 3: Installing Air Cleaner Outlet Duct
Courtesy of GENERAL MOTORS CORP.
