Connector Identification

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Output Speed Sensor Connector Terminals

G00080100

Courtesy of GENERAL MOTORS CORP.

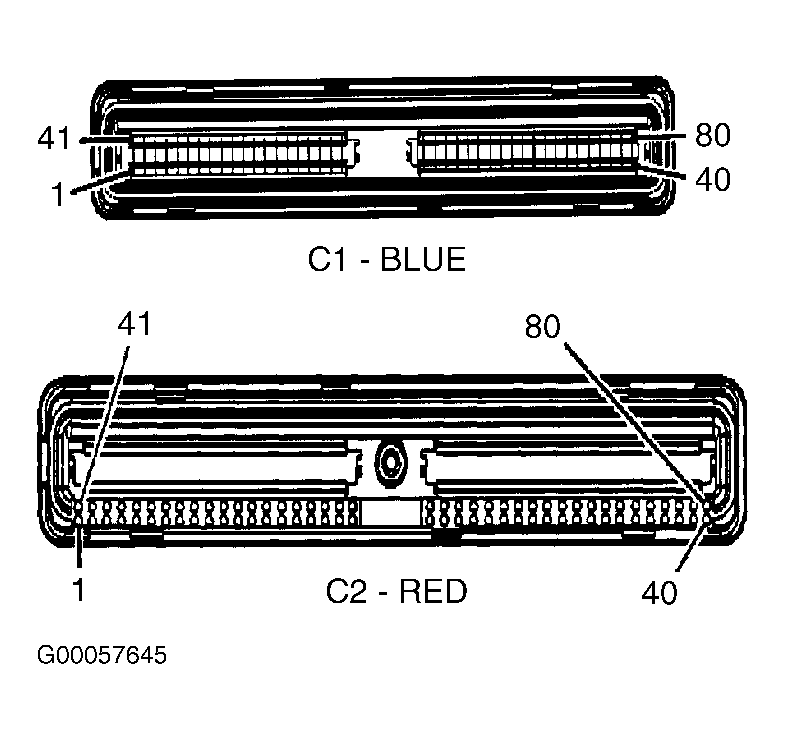

Fig 2: PCM Harness Connector Terminal Identification

G00057645

Courtesy of GENERAL MOTORS CORP.

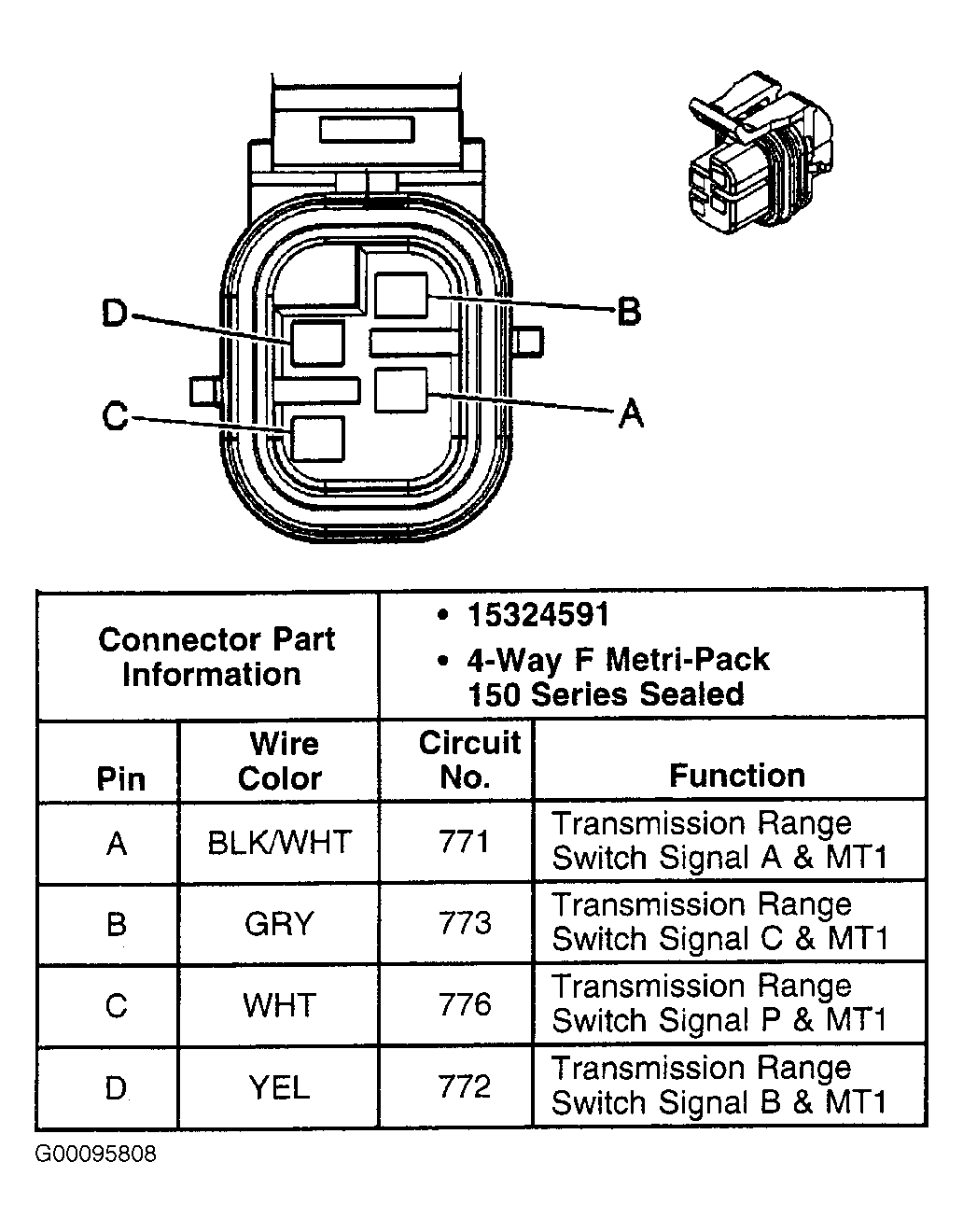

Fig 3: Identifying PNP Switch Connector "C1" Terminals (8.1L)

G00095808

Courtesy of GENERAL MOTORS CORP.

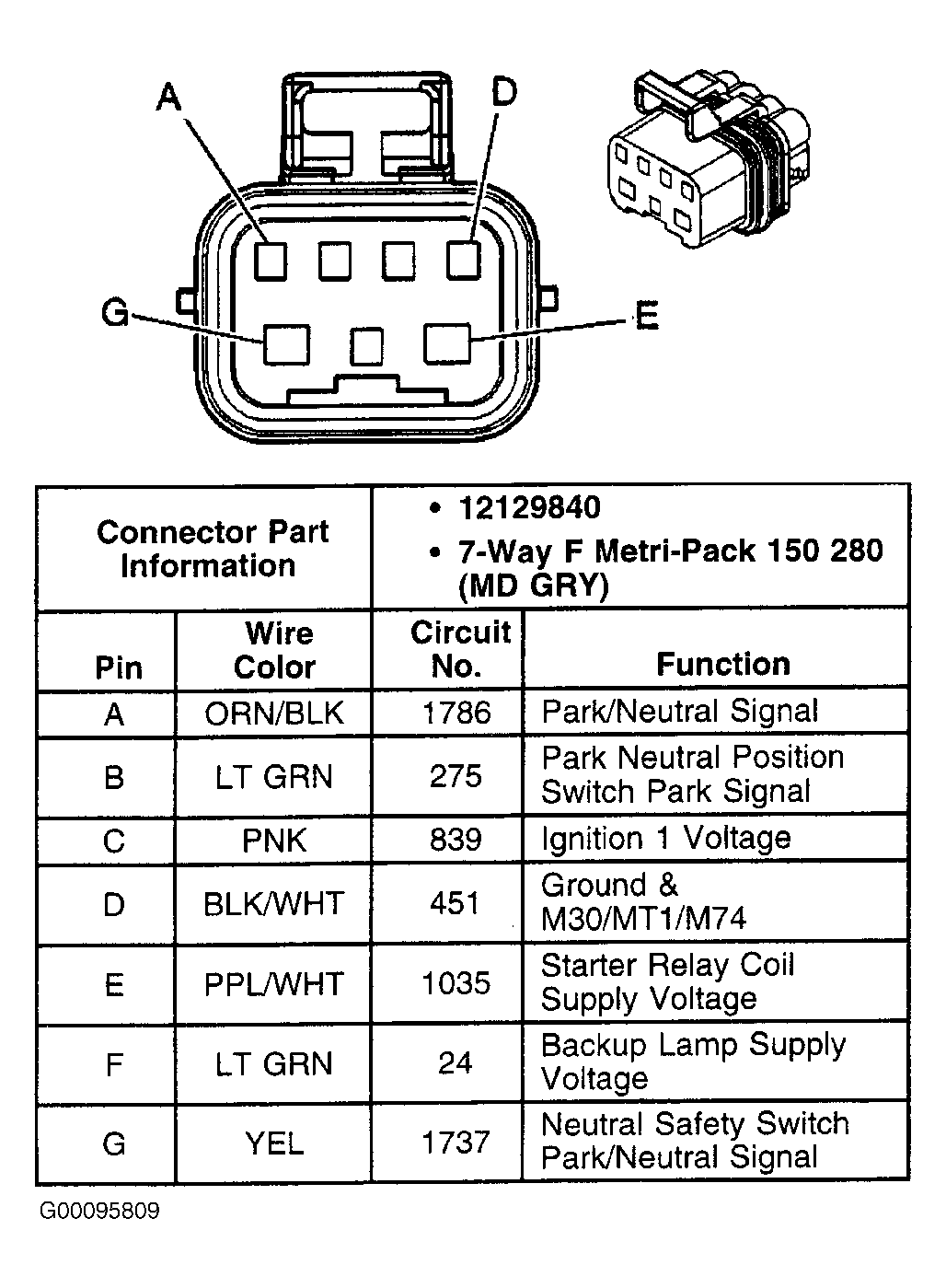

Fig 4: Identifying PNP Switch Connector "C2" Terminals (8.1L)

G00095809

Courtesy of GENERAL MOTORS CORP.

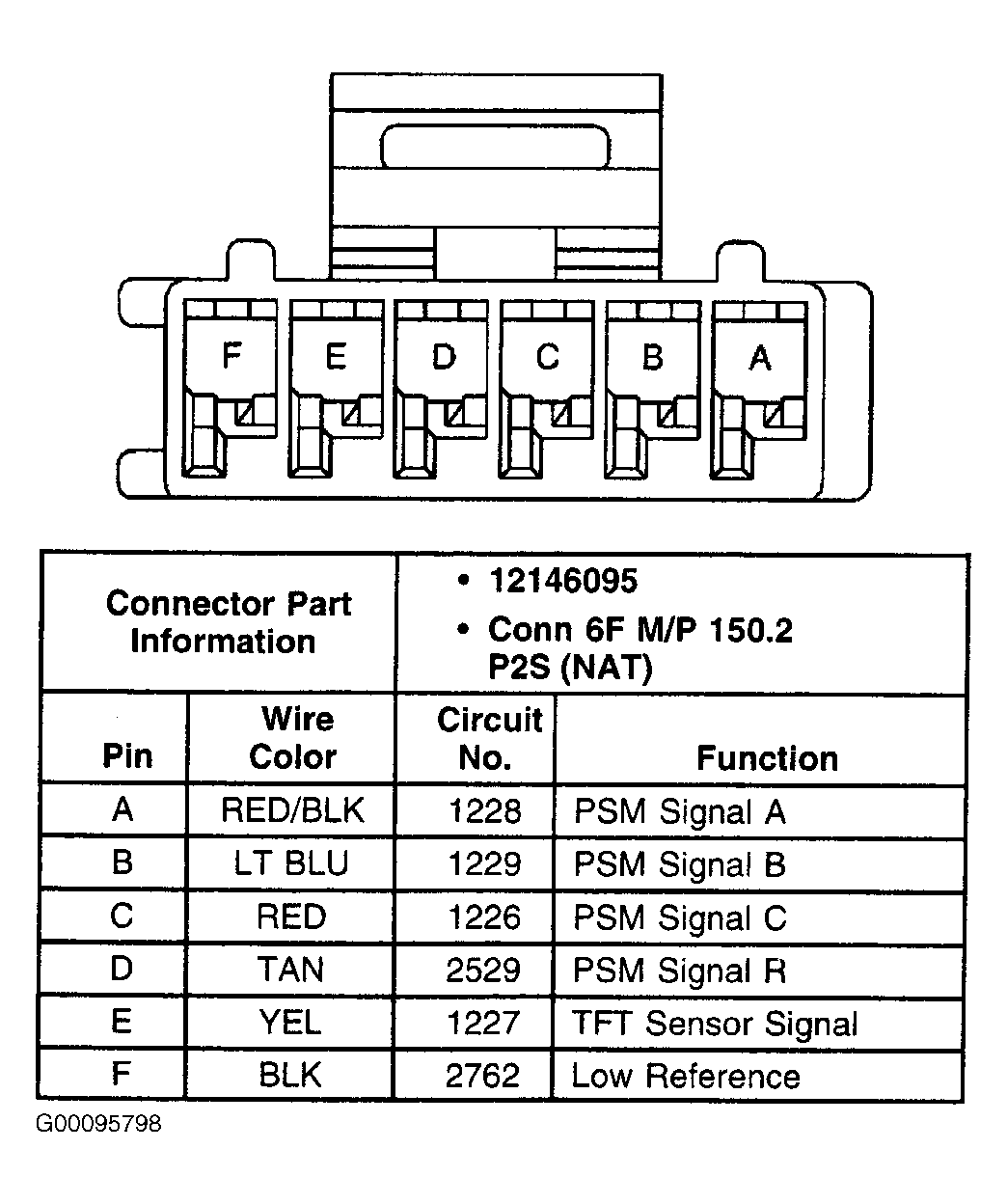

Fig 5: Identifying Pressure Switch Manifold Connector Terminals (2001)

G00095798

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Pressure Switch Manifold Connector Terminals (2002)

G00178468

Courtesy of GENERAL MOTORS CORP.

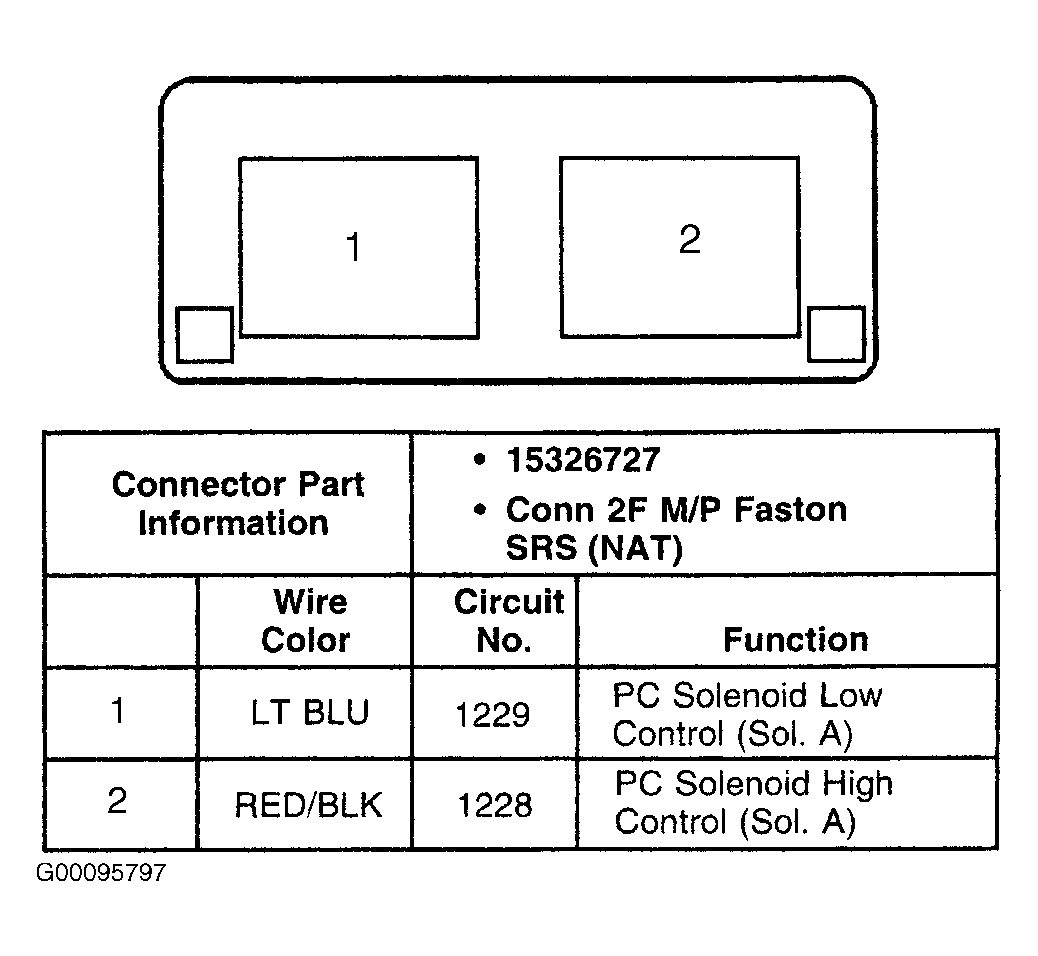

Fig 7: Identifying Solenoid "A" Connector Terminals

G00095797

Courtesy of GENERAL MOTORS CORP.

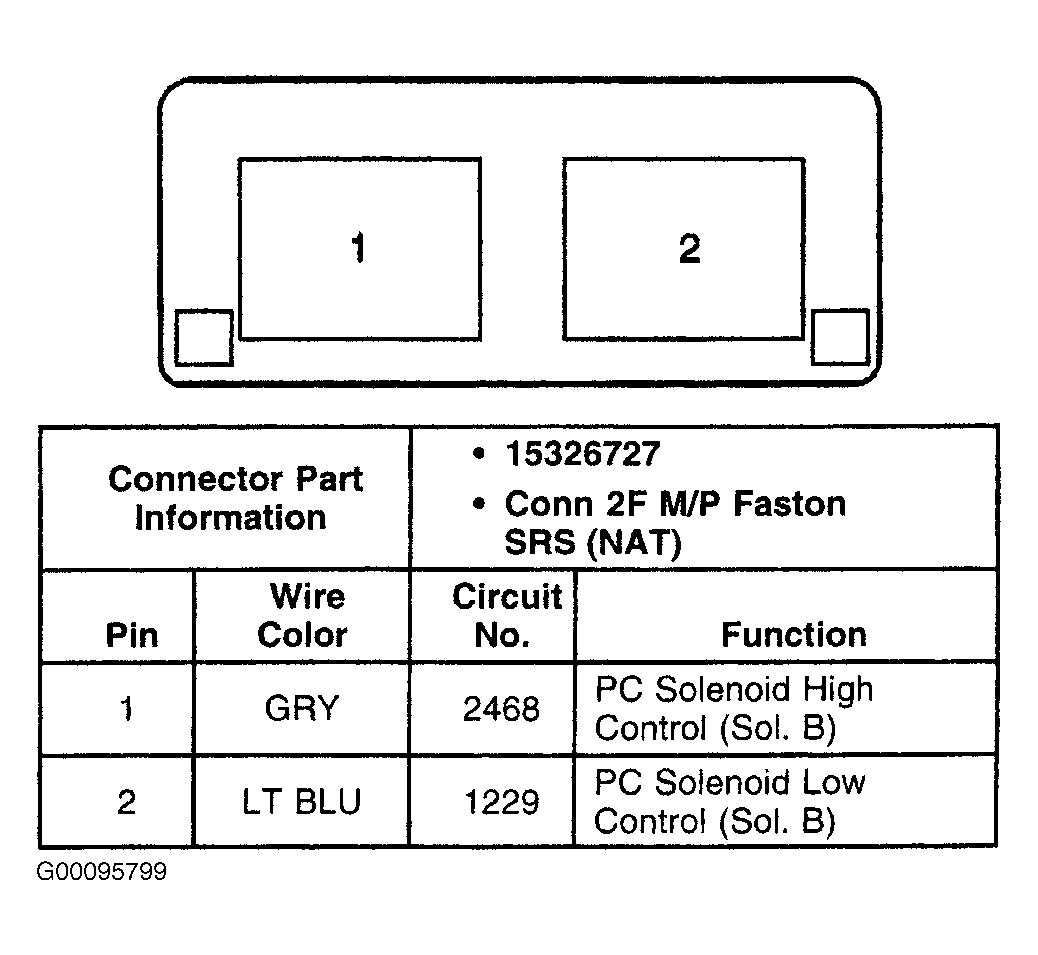

Fig 8: Identifying Solenoid "B" Connector Terminals (2001)

G00095799

Courtesy of GENERAL MOTORS CORP.

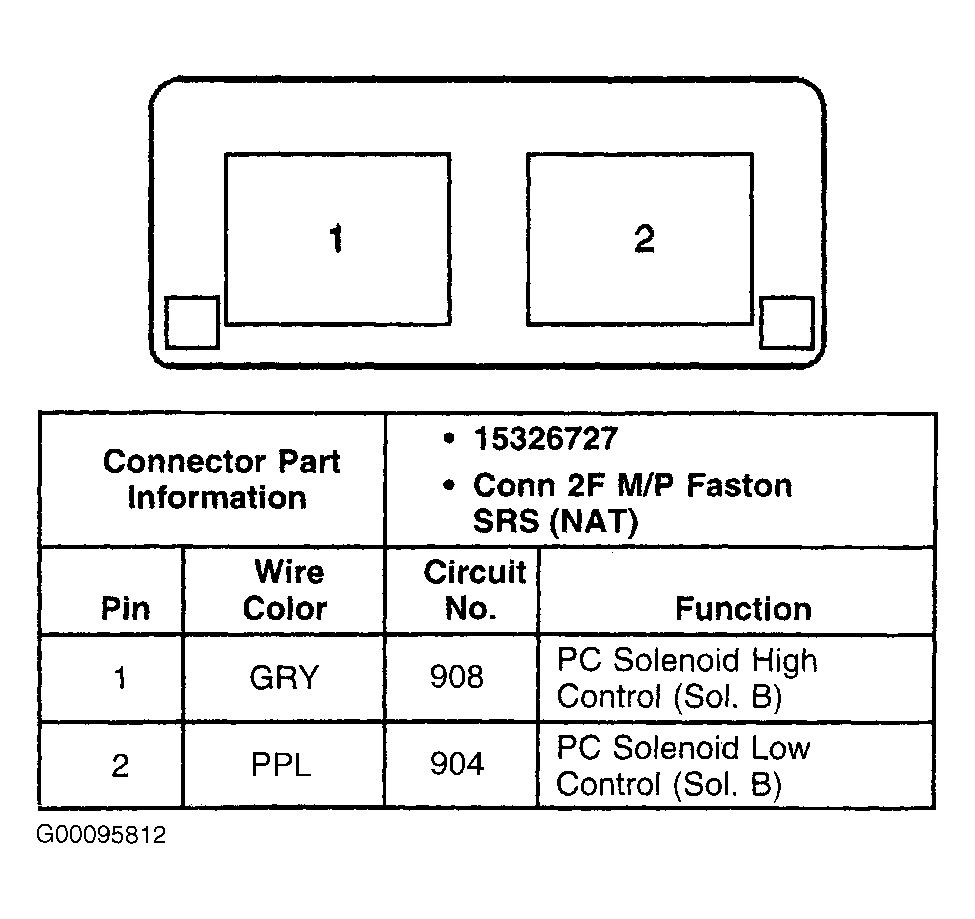

Fig 9: Identifying Solenoid "B" Connector Terminals (2002)

G00095812

Courtesy of GENERAL MOTORS CORP.

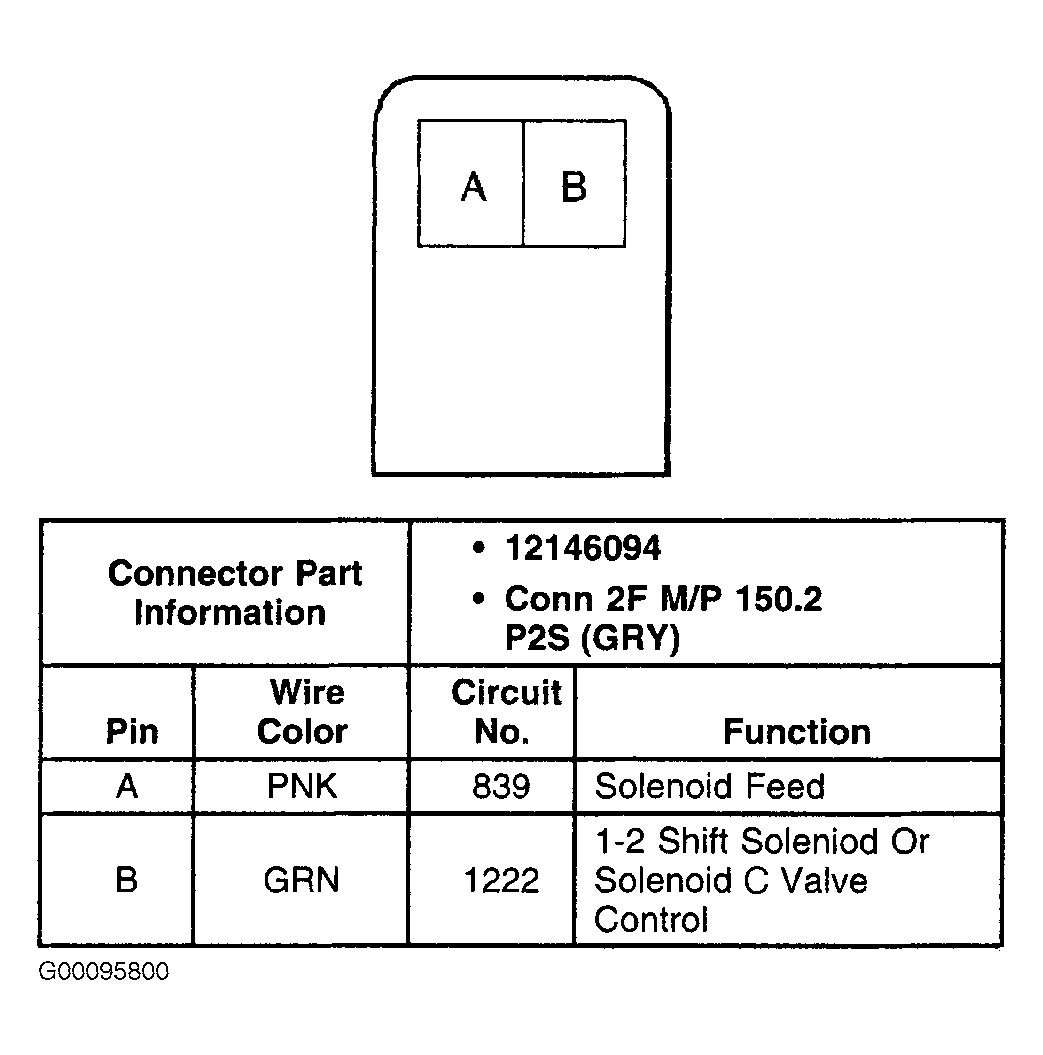

Fig 10: Identifying Solenoid "C" Connector Terminals

G00095800

Courtesy of GENERAL MOTORS CORP.

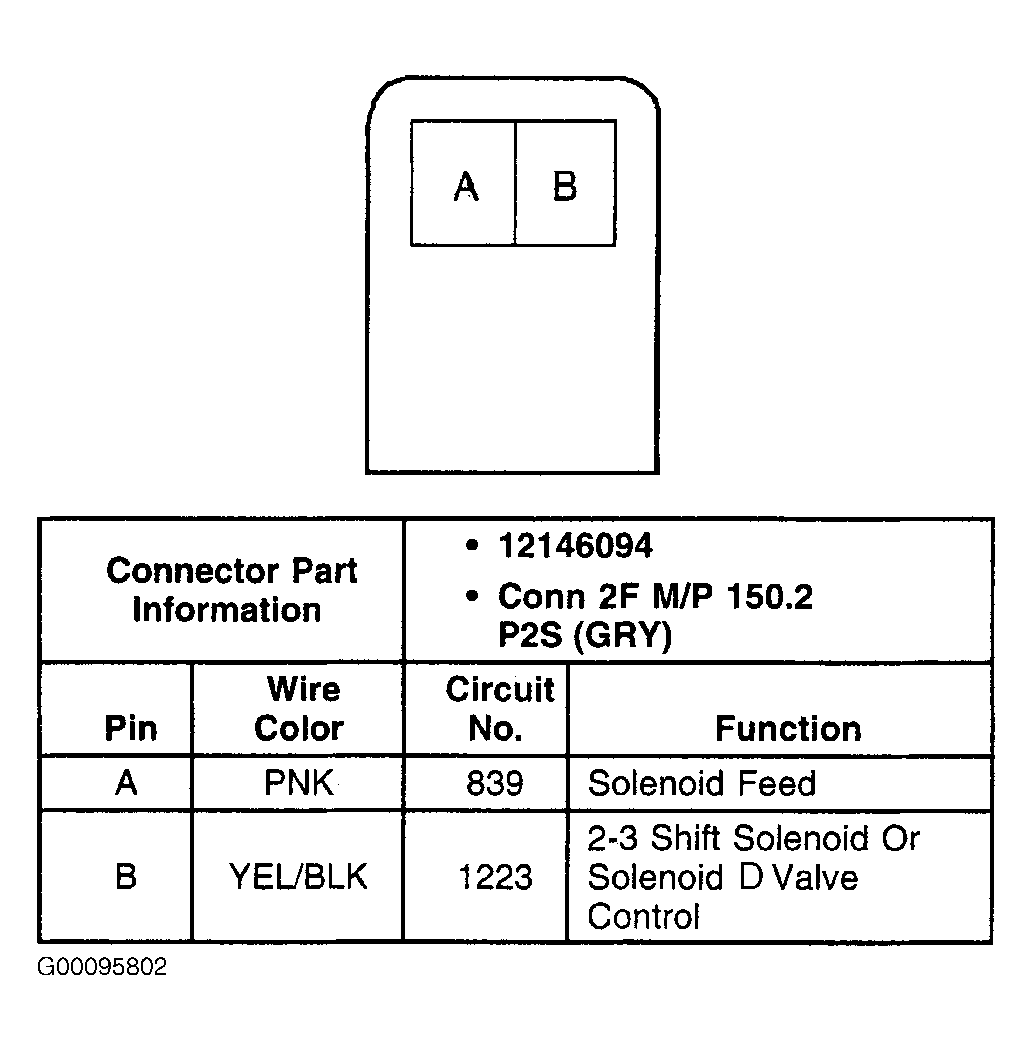

Fig 11: Identifying Solenoid "D" Connector Terminals

G00095802

Courtesy of GENERAL MOTORS CORP.

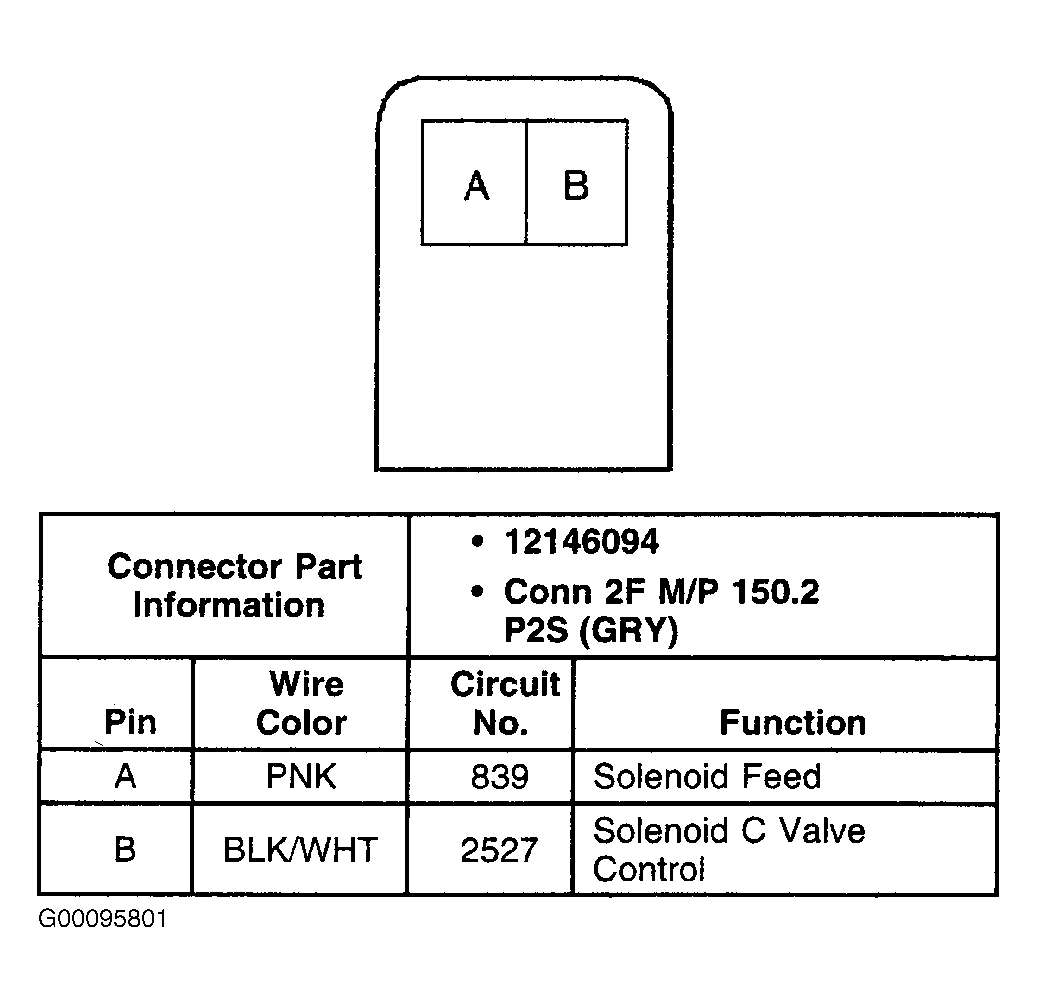

Fig 12: Identifying Solenoid "E" Connector Terminals (2001)

G00095801

Courtesy of GENERAL MOTORS CORP.

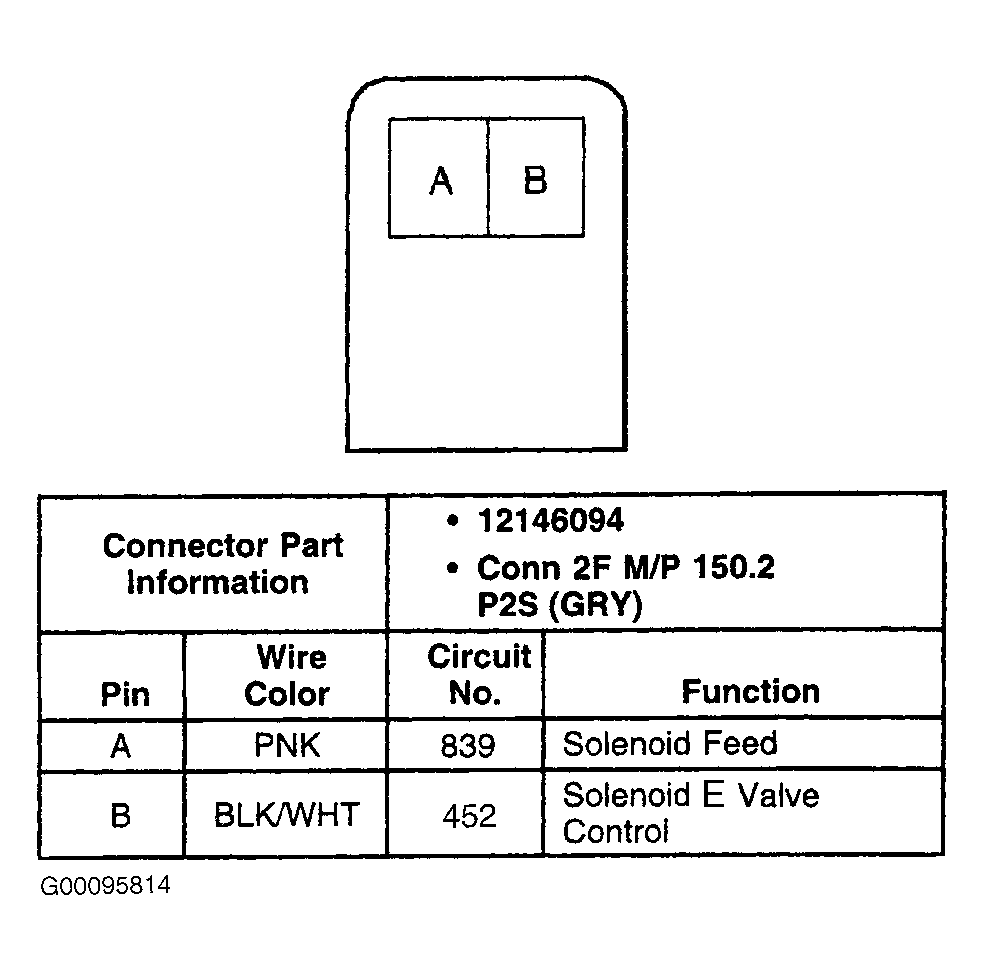

Fig 13: Identifying Solenoid "E" Connector Terminals (2002)

G00095814

Courtesy of GENERAL MOTORS CORP.

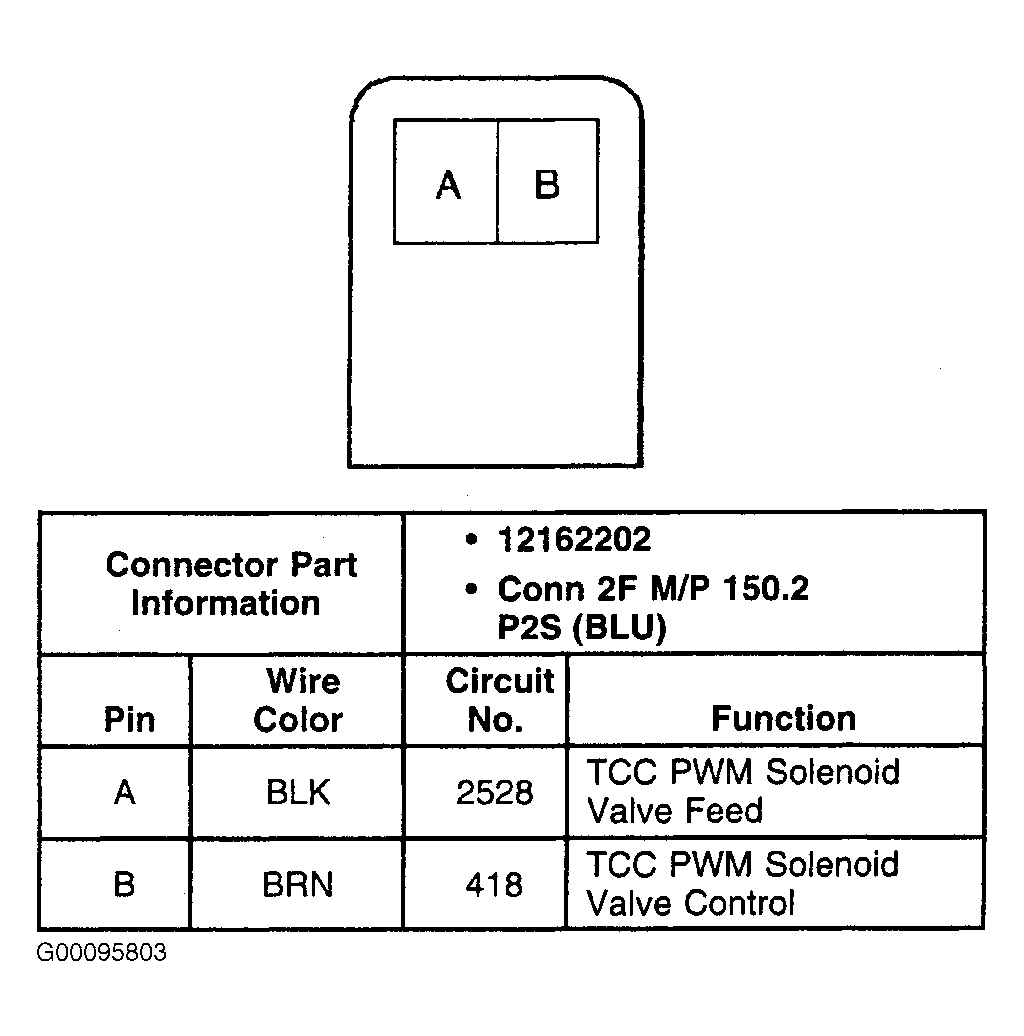

Fig 14: Identifying Solenoid "F" Connector Terminals (2001)

G00095803

Courtesy of GENERAL MOTORS CORP.

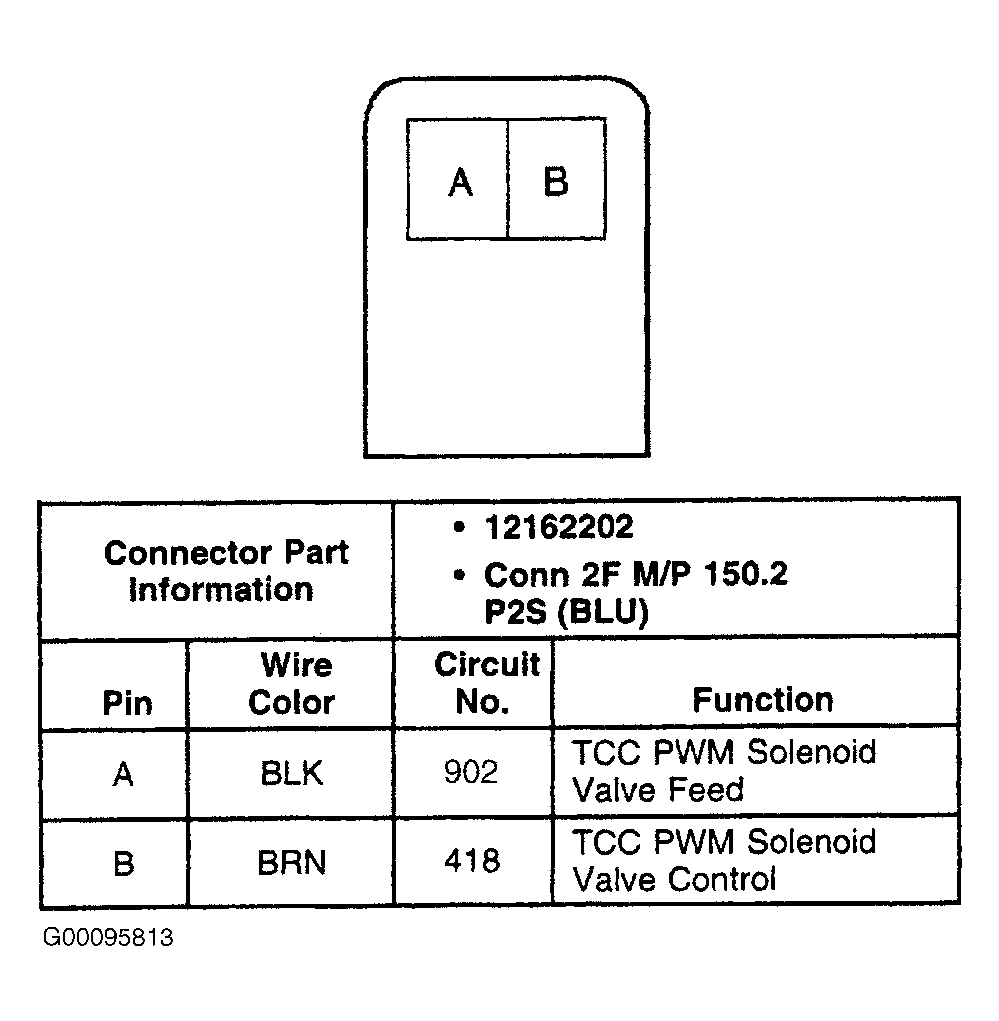

Fig 15: Identifying Solenoid "F" Connector Terminals (2002)

G00095813

Courtesy of GENERAL MOTORS CORP.

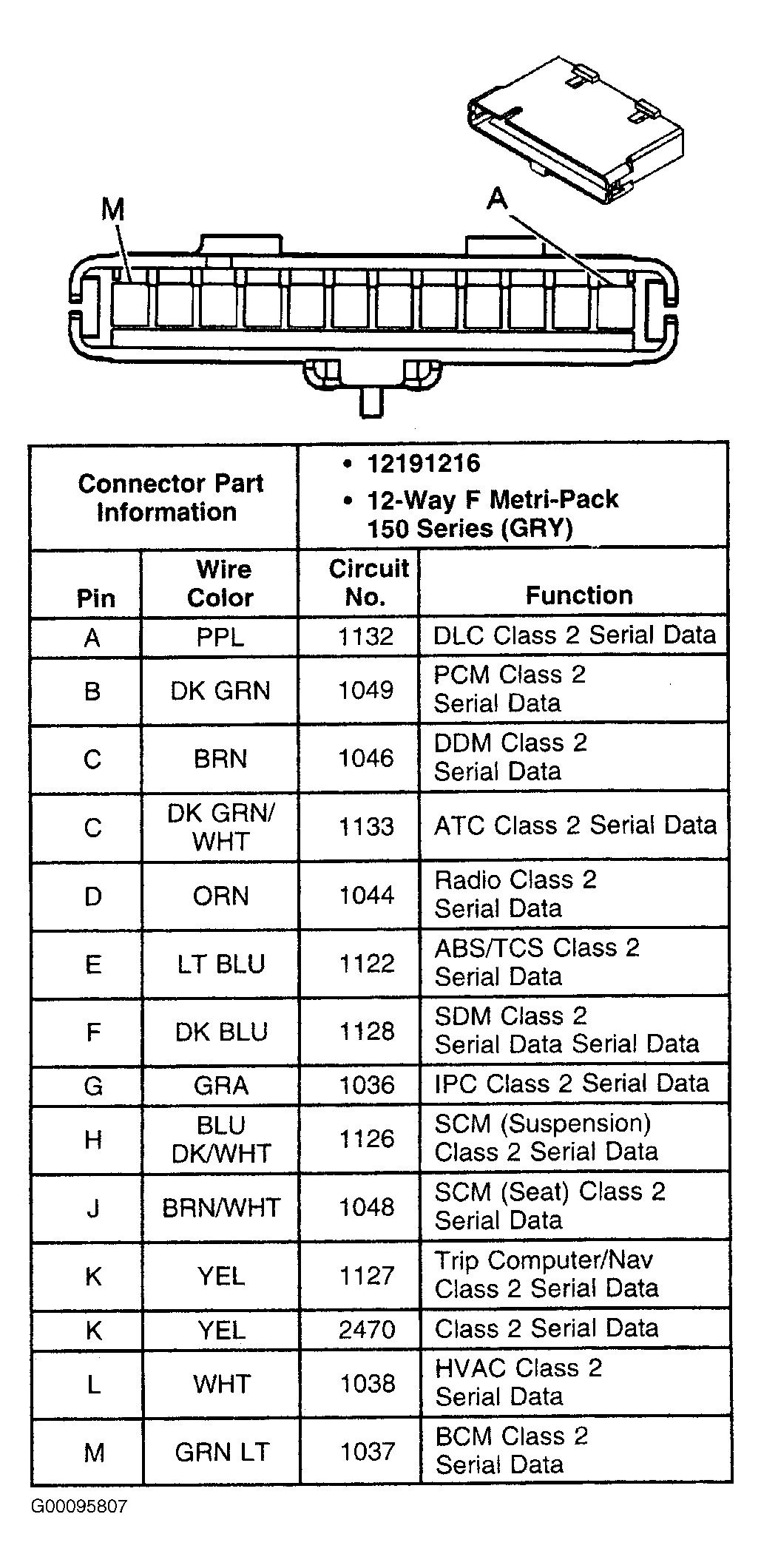

Fig 16: Identifying Splice Pack (SP205) Terminals

G00095807

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying TCM Connector C1 (Gray) Terminals

G00095804

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying TCM Connector C2 (Red) Terminals

G00186708

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Transmission In-Line 20-Way Connector Terminals - Harness Side

G00178467

Courtesy of GENERAL MOTORS CORP.

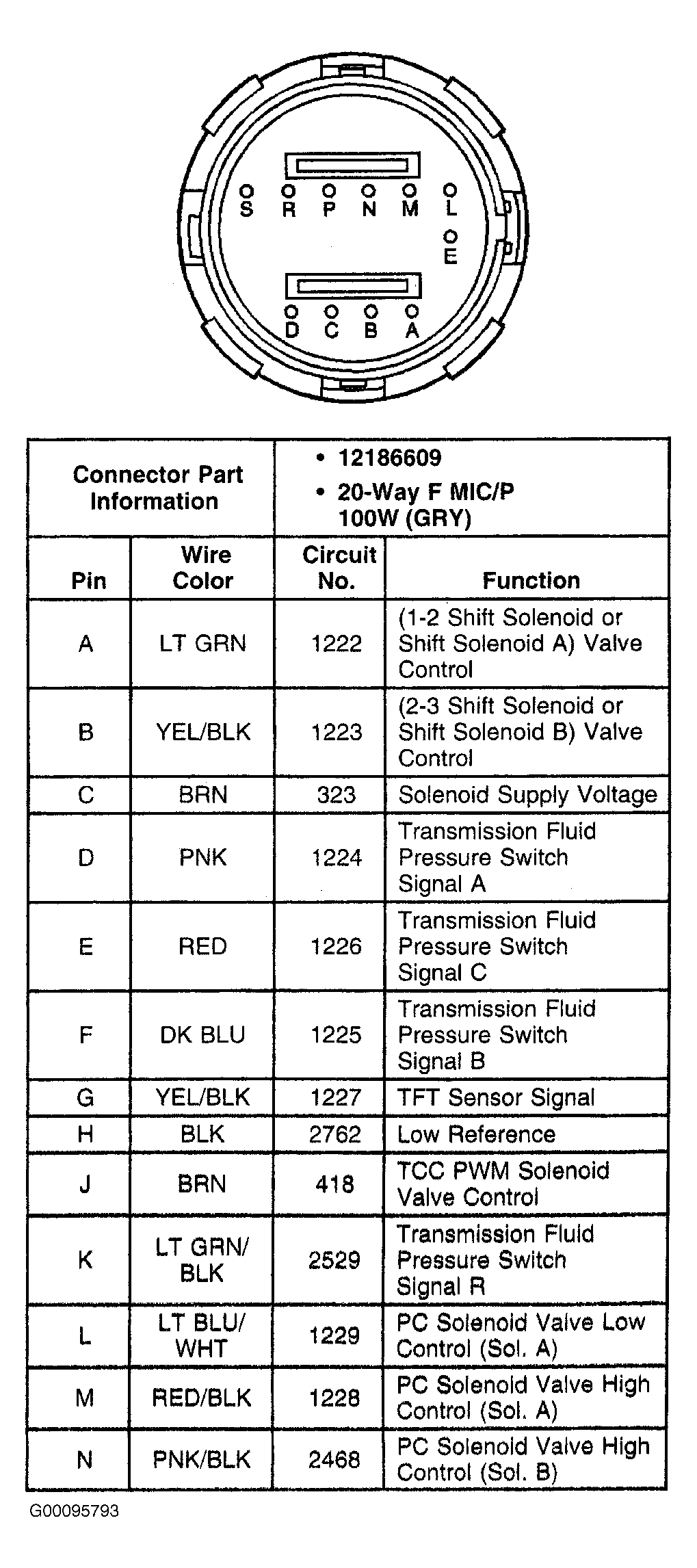

Fig 20: Identifying Transmission In-Line 20-Way Connector Terminals - Transmission Side (2001 - 1 Of 2)

G00095793

Courtesy of GENERAL MOTORS CORP.

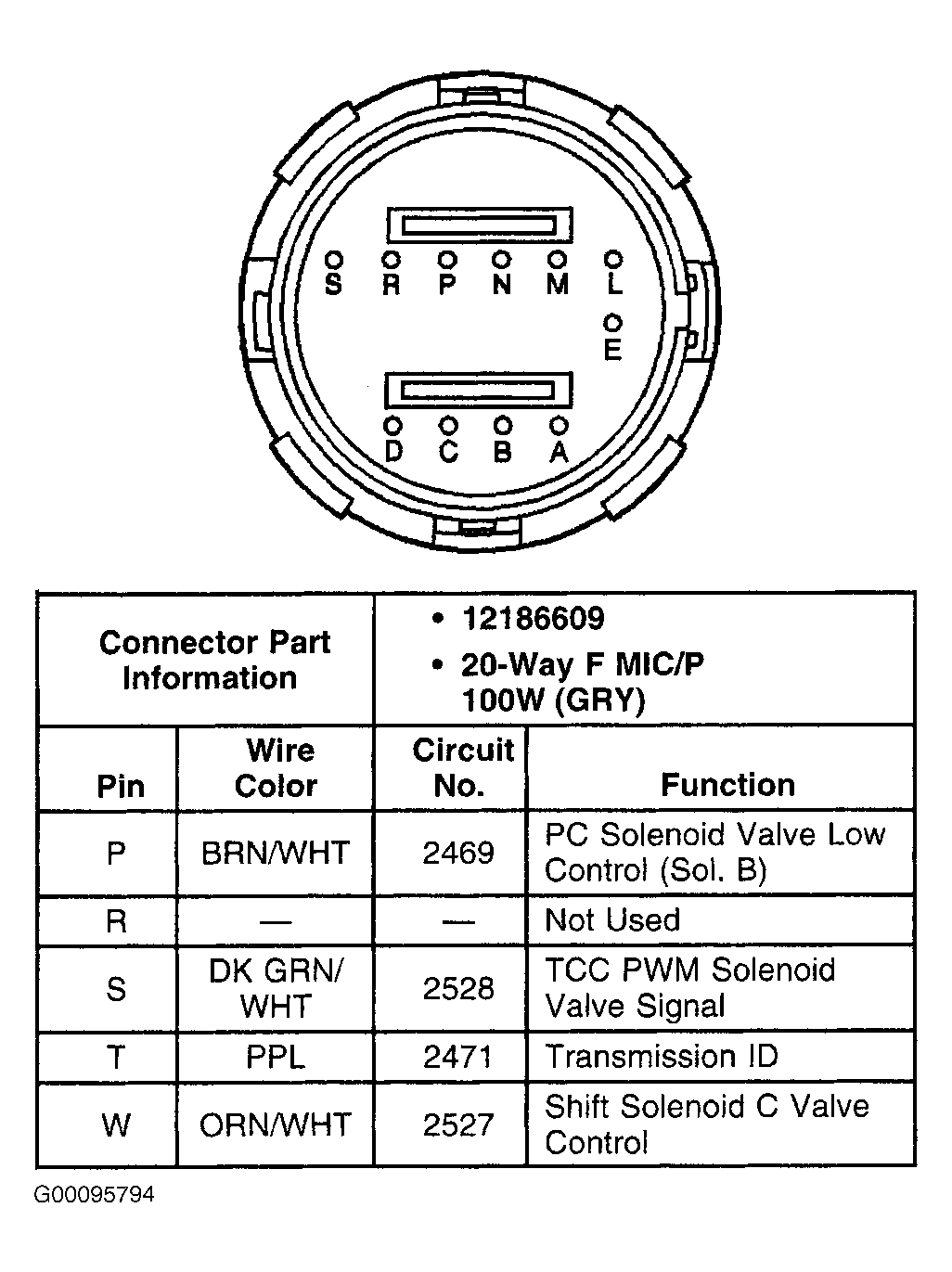

Fig 21: Identifying Transmission In-Line 20-Way Connector Terminals - Transmission Side (2001 - 2 Of 2)

G00095794

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying Transmission In-Line 20-Way Connector Terminals - Transmission Side (2002)

G00178466

Courtesy of GENERAL MOTORS CORP.

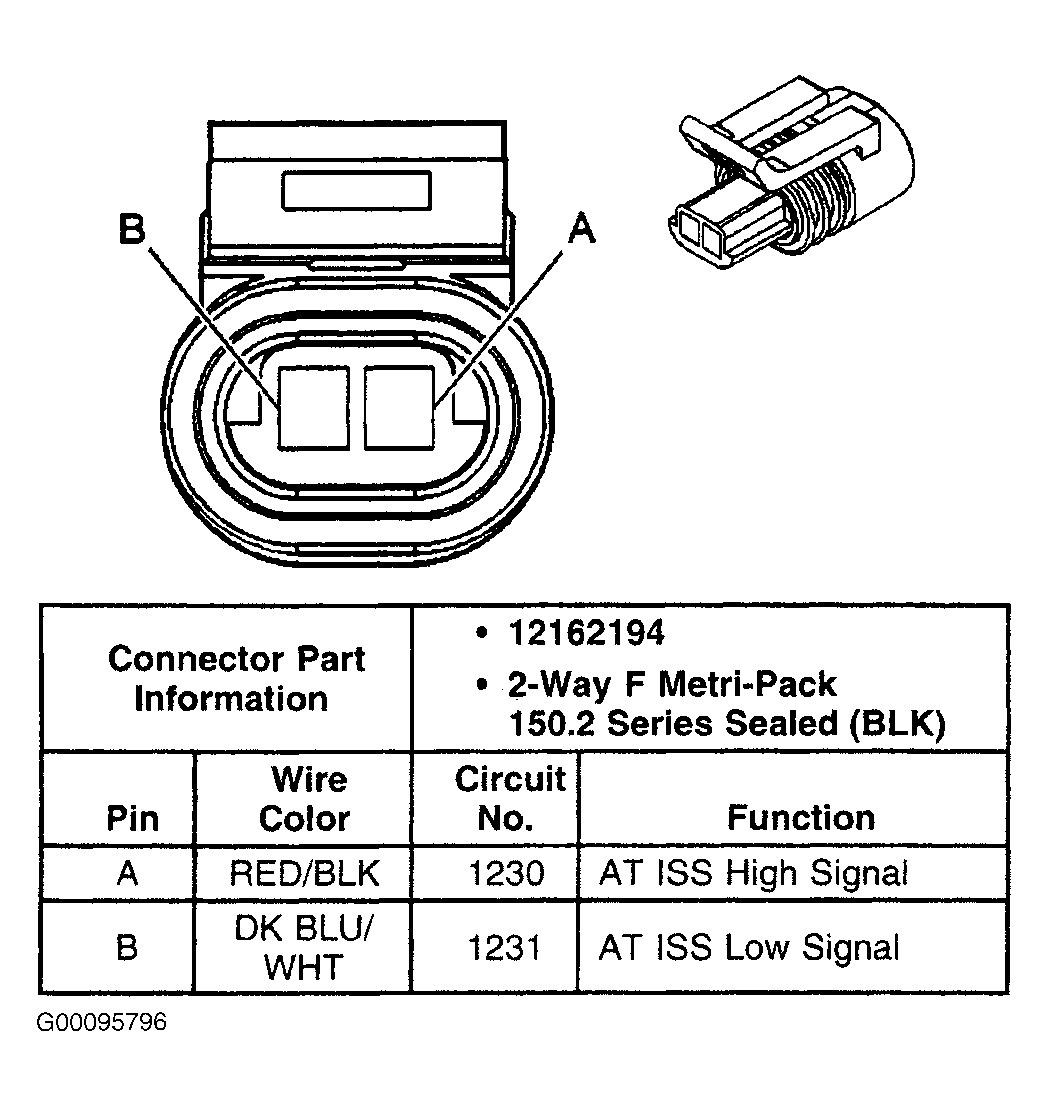

Fig 23: Identifying Turbine Speed Sensor Connector Terminals (2001)

G00095796

Courtesy of GENERAL MOTORS CORP.

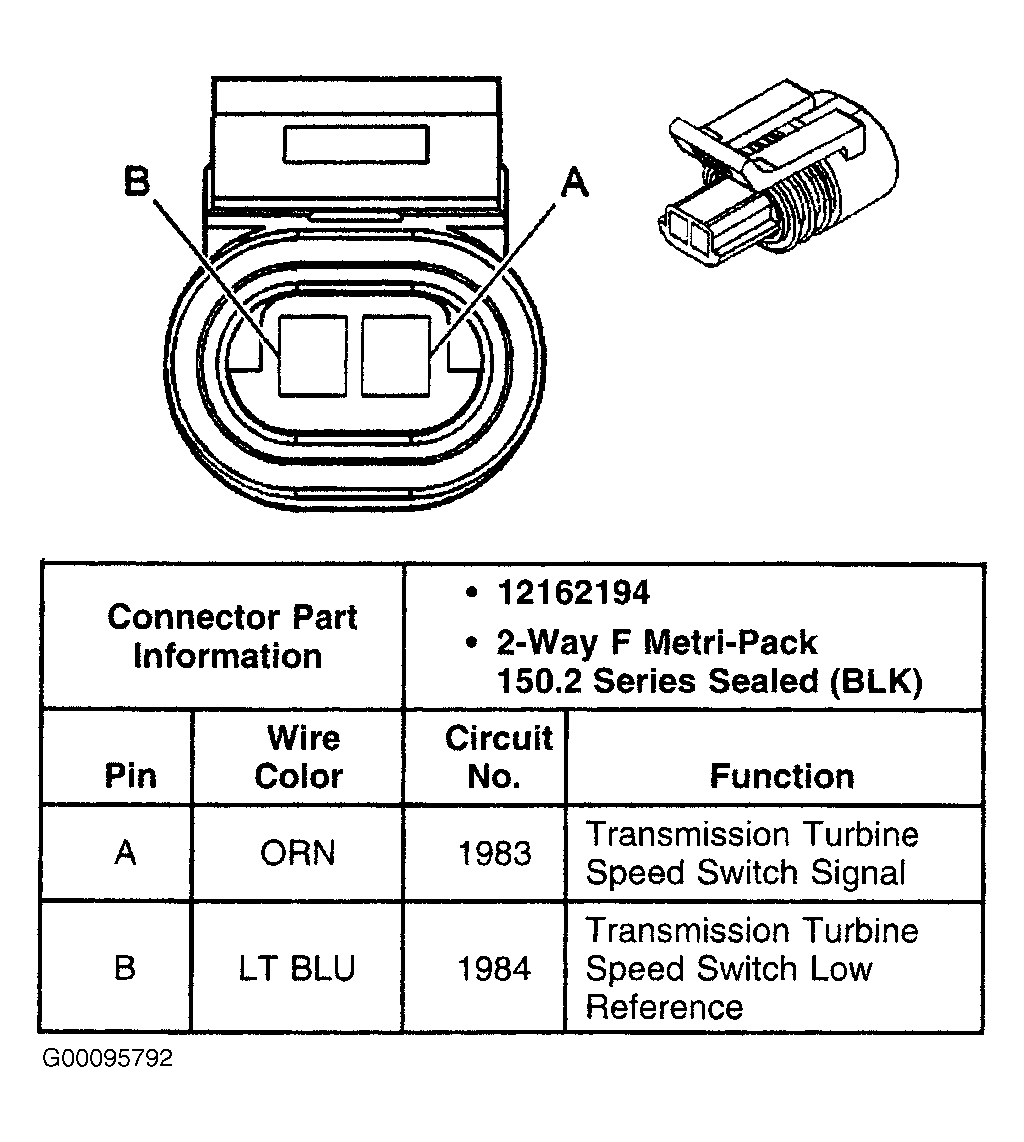

Fig 24: Identifying Turbine Speed Sensor Connector Terminals (2002)

G00095792

Courtesy of GENERAL MOTORS CORP.
