Theft Deterrent System Schematics (Passlock Sensor Inputs and Class 2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

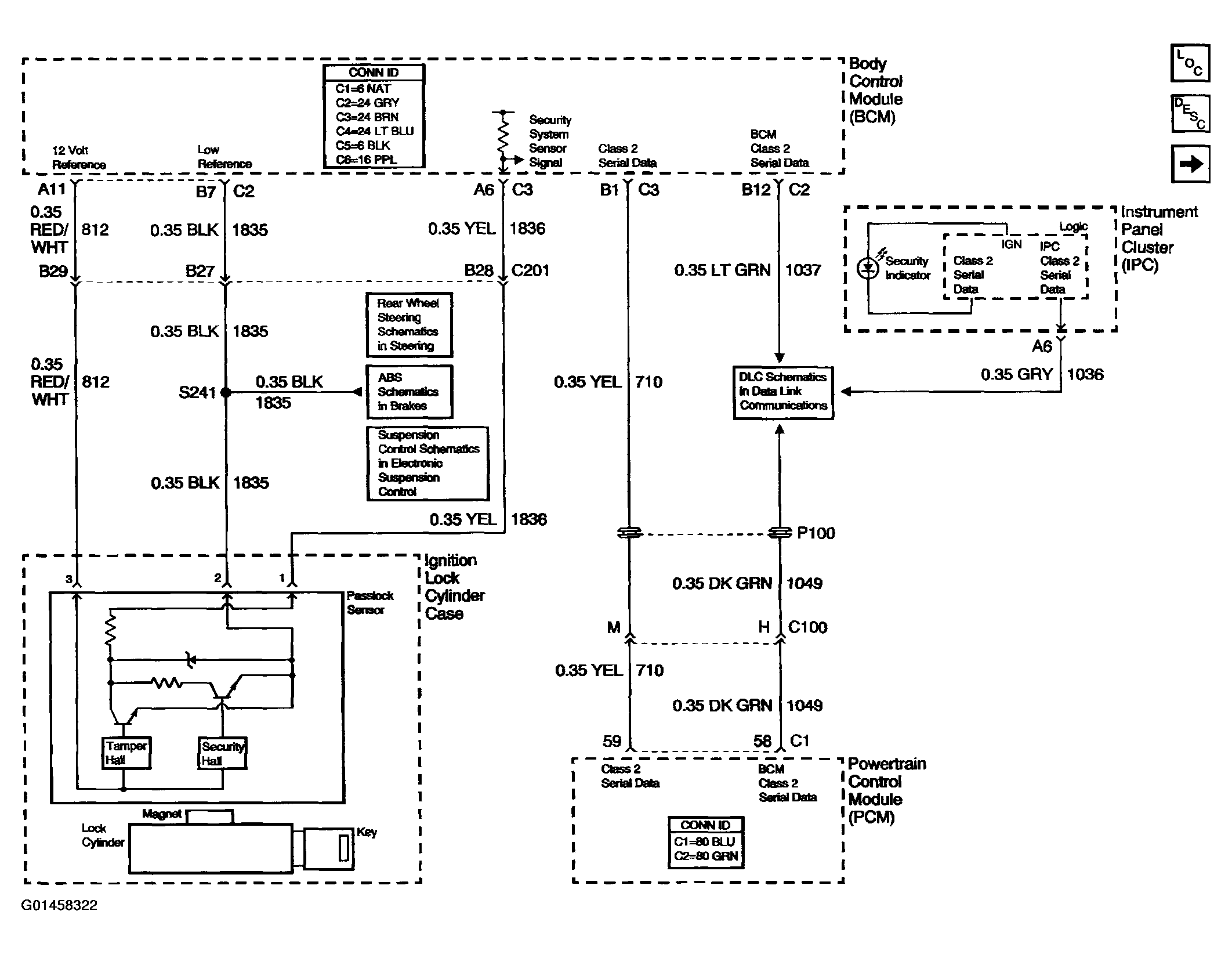

Fig 1: Theft Deterrent System Schematics (Passlock Sensor Inputs And Class 2)

Courtesy of GENERAL MOTORS CORP.

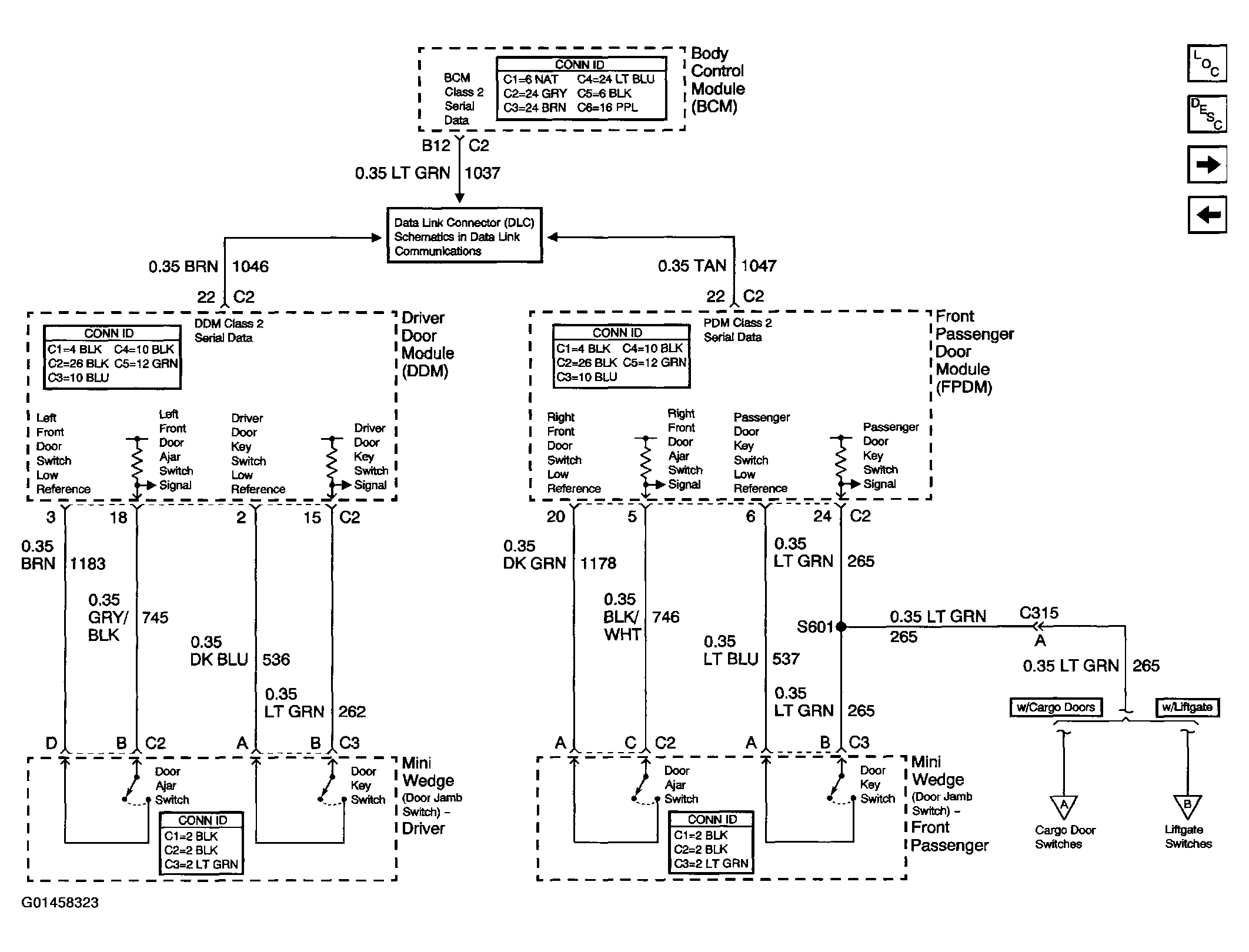

Fig 2: Theft Deterrent System Schematics (Front Door Switches)

Courtesy of GENERAL MOTORS CORP.

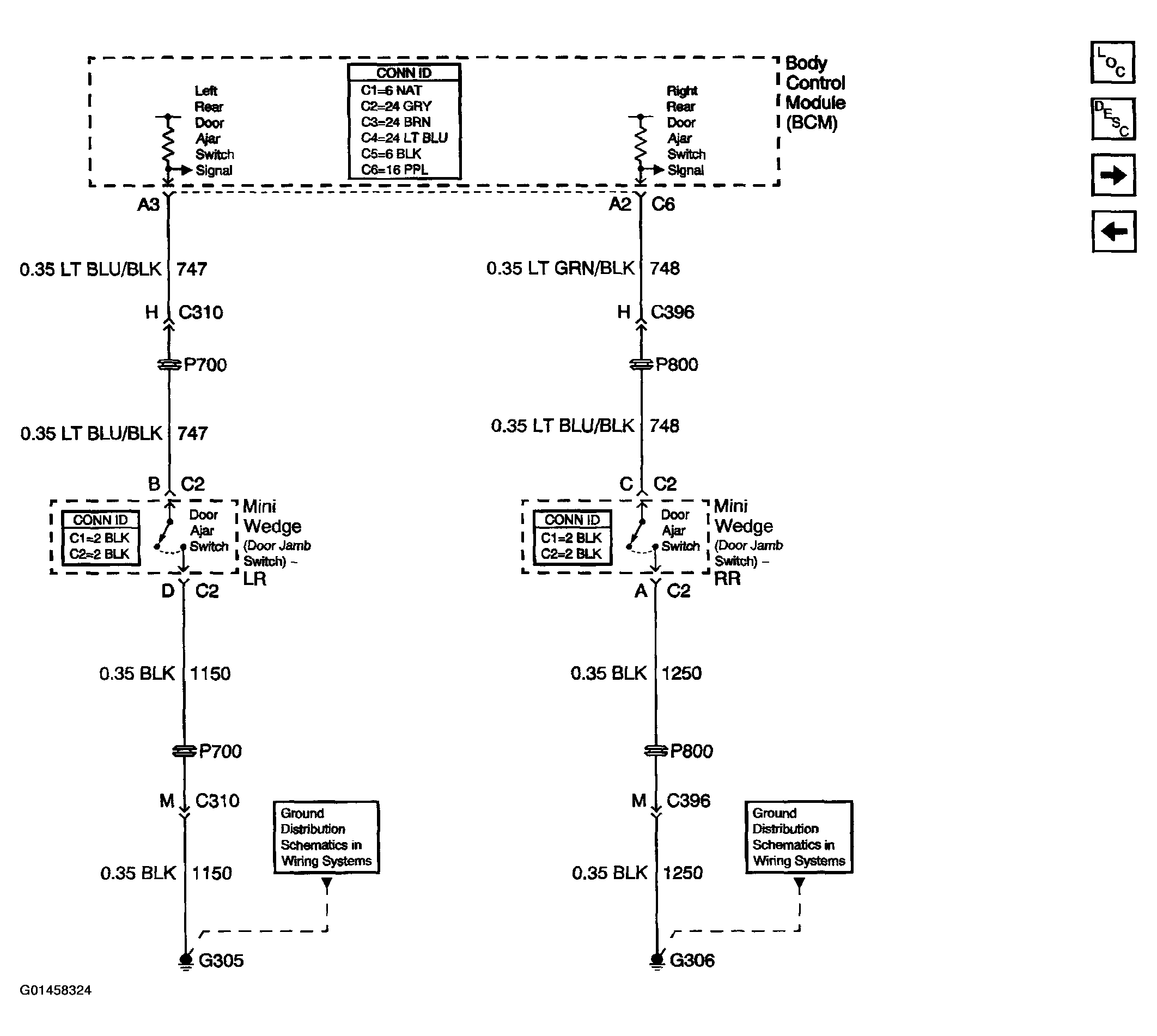

Fig 3: Theft Deterrent System Schematics (Rear Door Switches)

Courtesy of GENERAL MOTORS CORP.

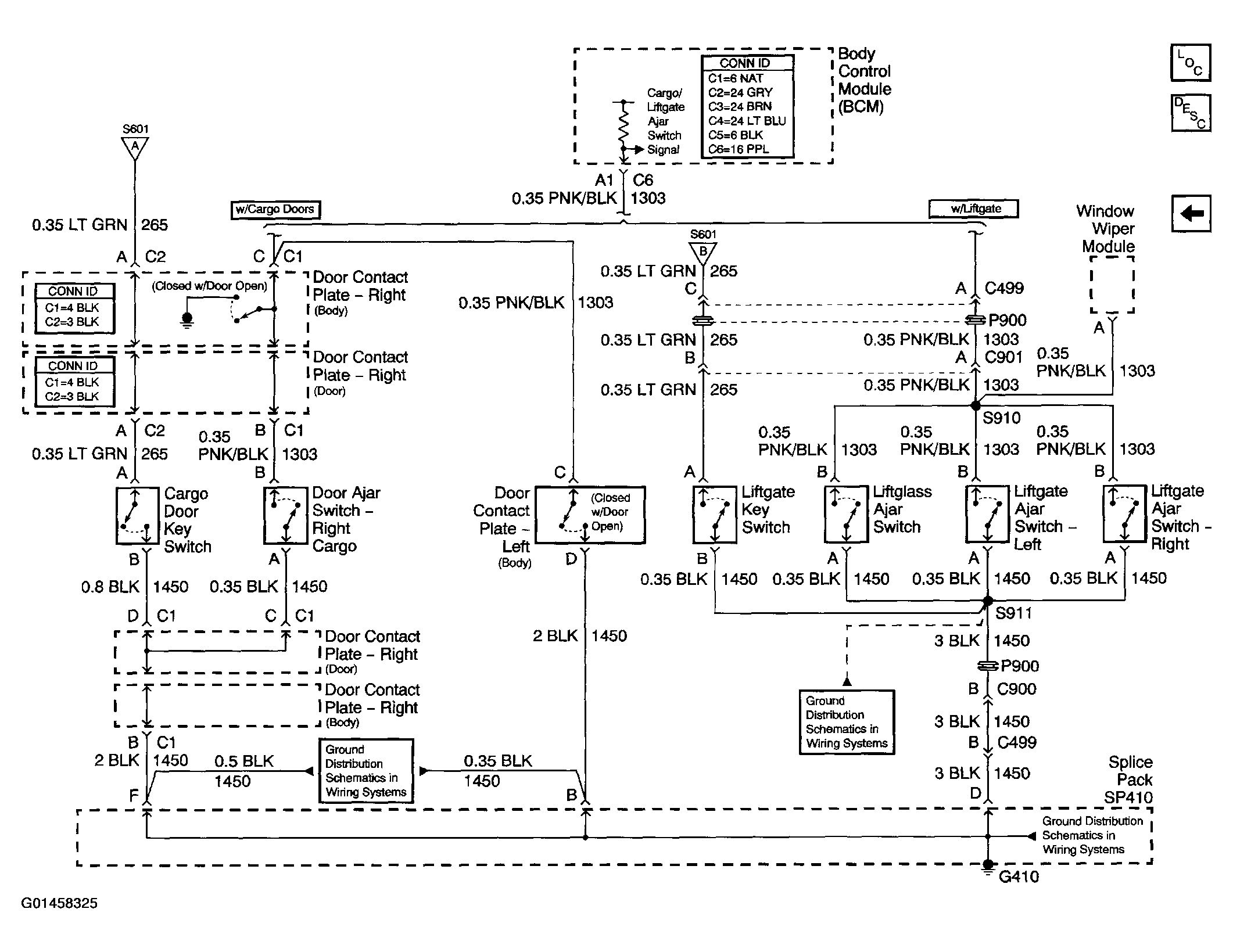

Fig 4: Theft Deterrent System Schematics (Cargo Door and Liftgate Switches)

Courtesy of GENERAL MOTORS CORP.
