Scan Tool Data List

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

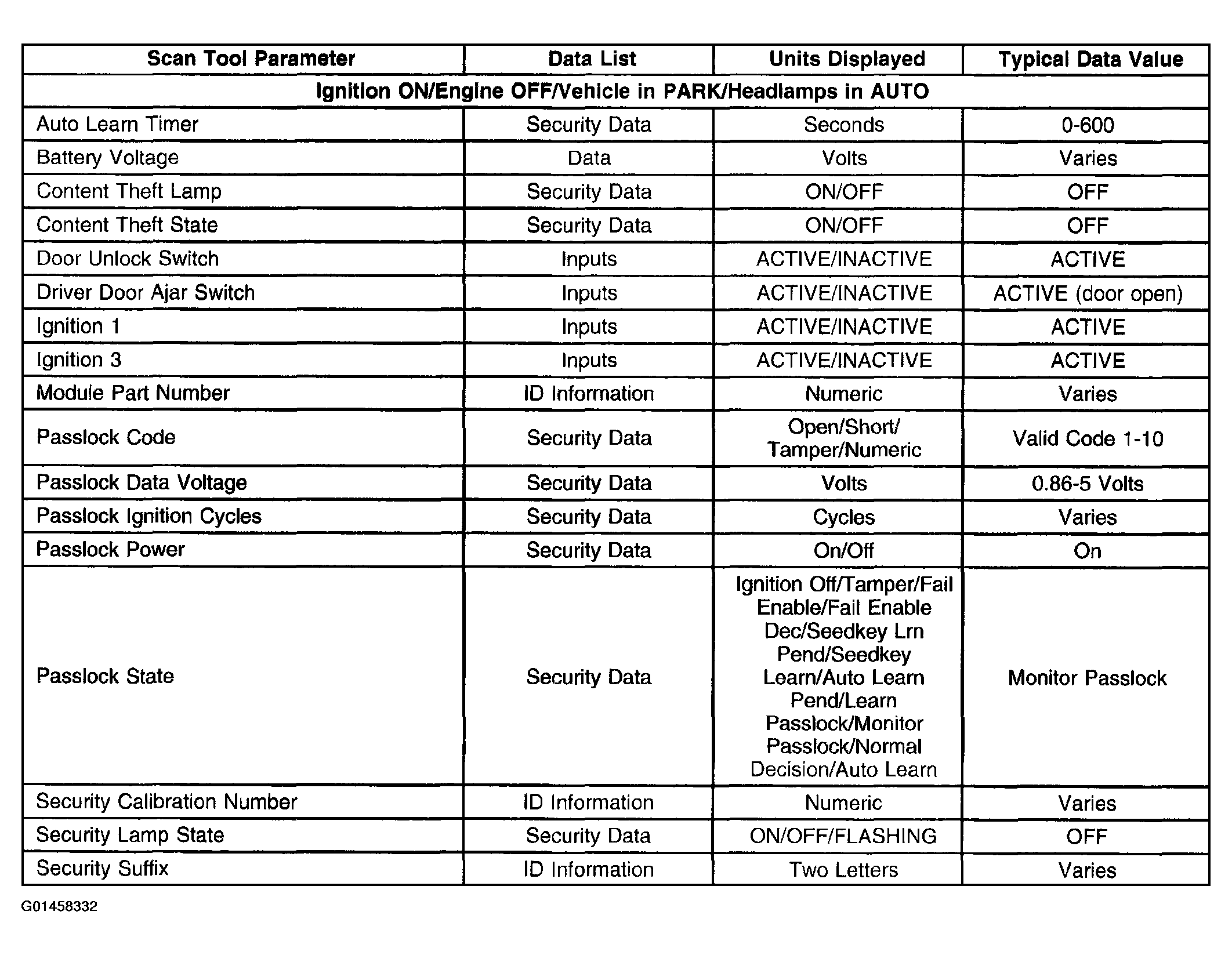

Fig 1: Scan Tool Data List - Body Control Module (BCM - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

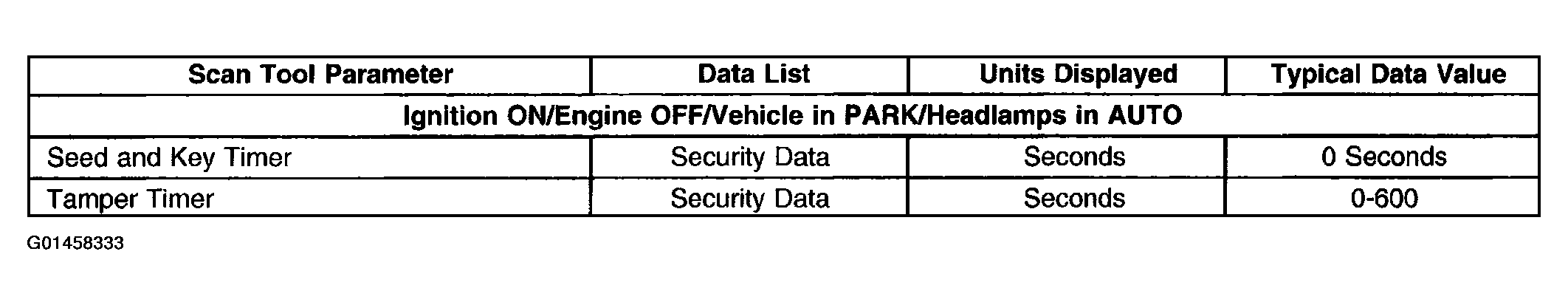

Fig 2: Scan Tool Data List - Body Control Module (BCM - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

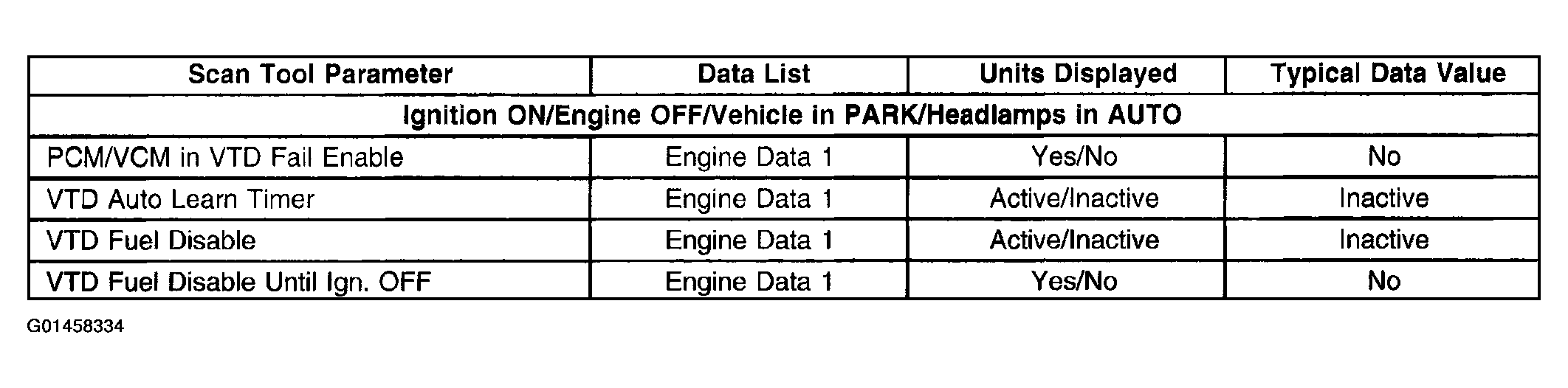

Fig 3: Scan Tool Data List - Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
