Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
  2. 5. Tests for an open in the passlock sensor signal circuit which may not set a DTC B2958 under certain conditions.
  3. 6. The presence of DTCs which begin with "U" indicate some other module is not communicating. The specified procedure will compile all the available information before tests are performed.
  4. 7. The presence of DTC P0601, P0602, P0604, or P0606 indicates an internal fault in the PCM.
  5. 8. The presence of DTC B1000 indicates an internal module fault.
  6. 9. The Presence of DTC B1982 or B1983 indicates a low or high voltage condition.

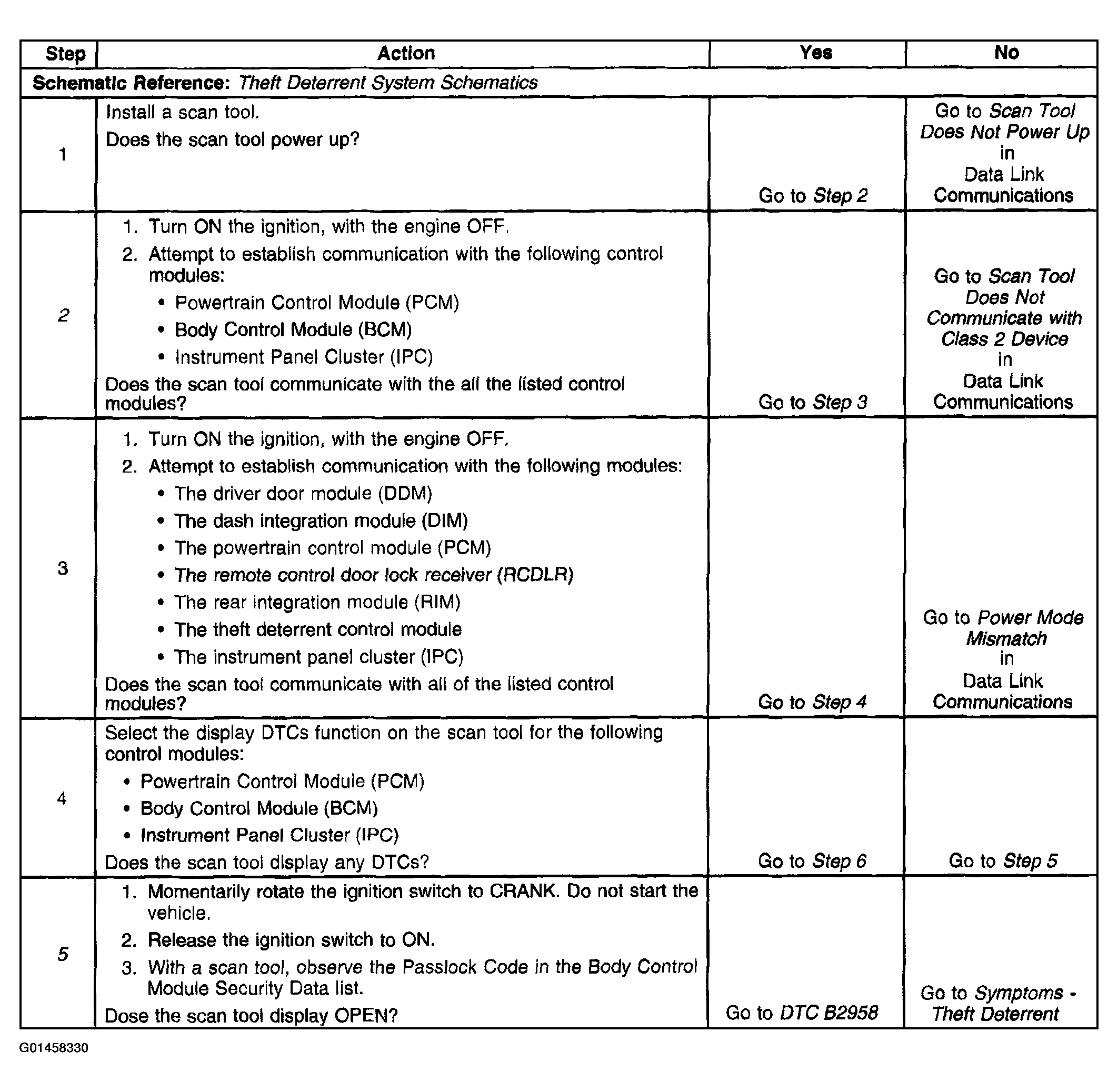

Fig 1: Diagnostic System Check - Theft Deterrent (1 Of 2)
G01458330Courtesy of GENERAL MOTORS CORP.

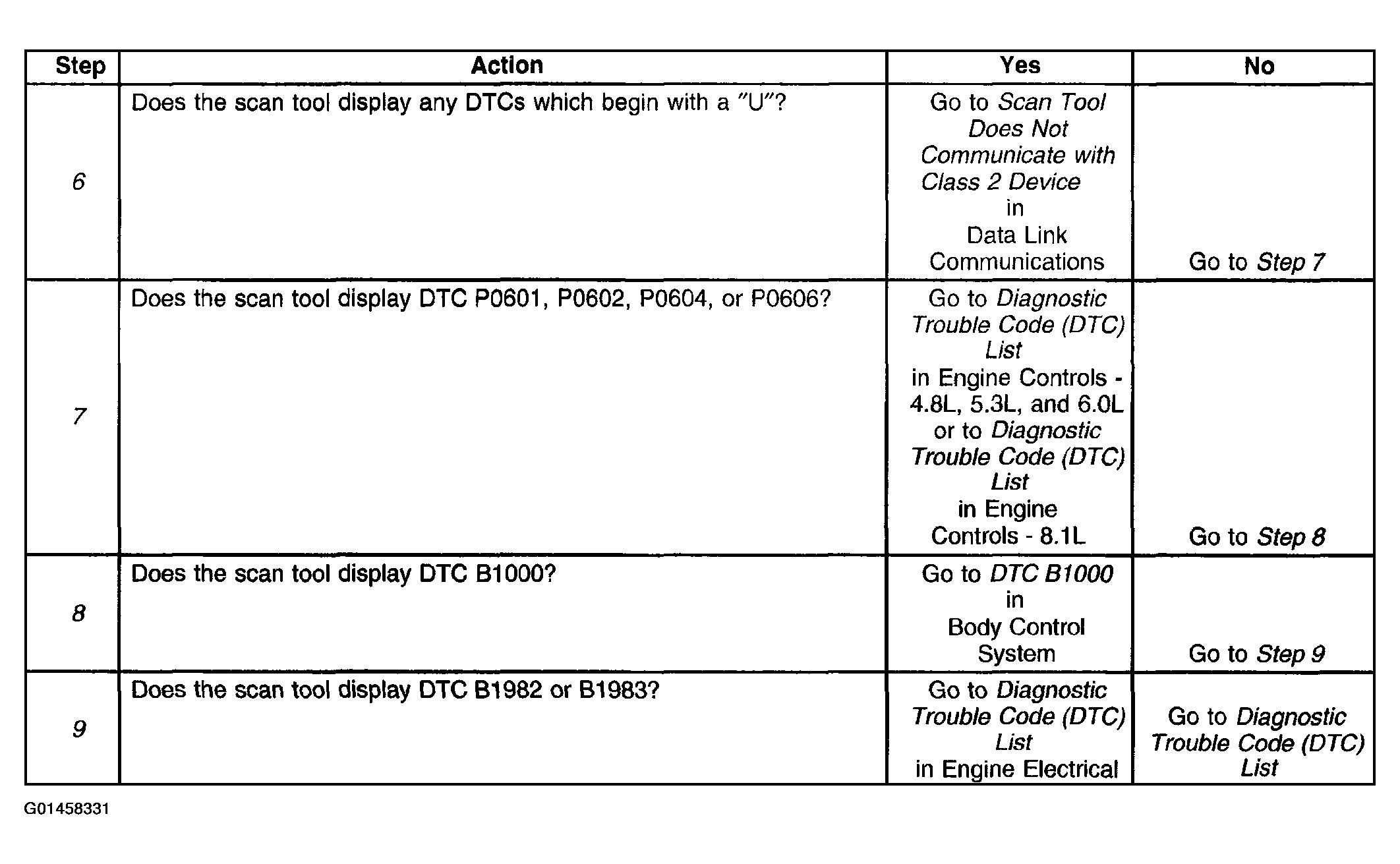

Fig 2: Diagnostic System Check - Theft Deterrent (2 Of 2)
G01458331Courtesy of GENERAL MOTORS CORP.
