Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for the proper operation of the 12-volt reference Security Sensor Power circuit, sensor ground circuit, and Passlock™ sensor signal (data) circuit. Troubleshoot the appropriate DTC prior to diagnosing DTC B3031.

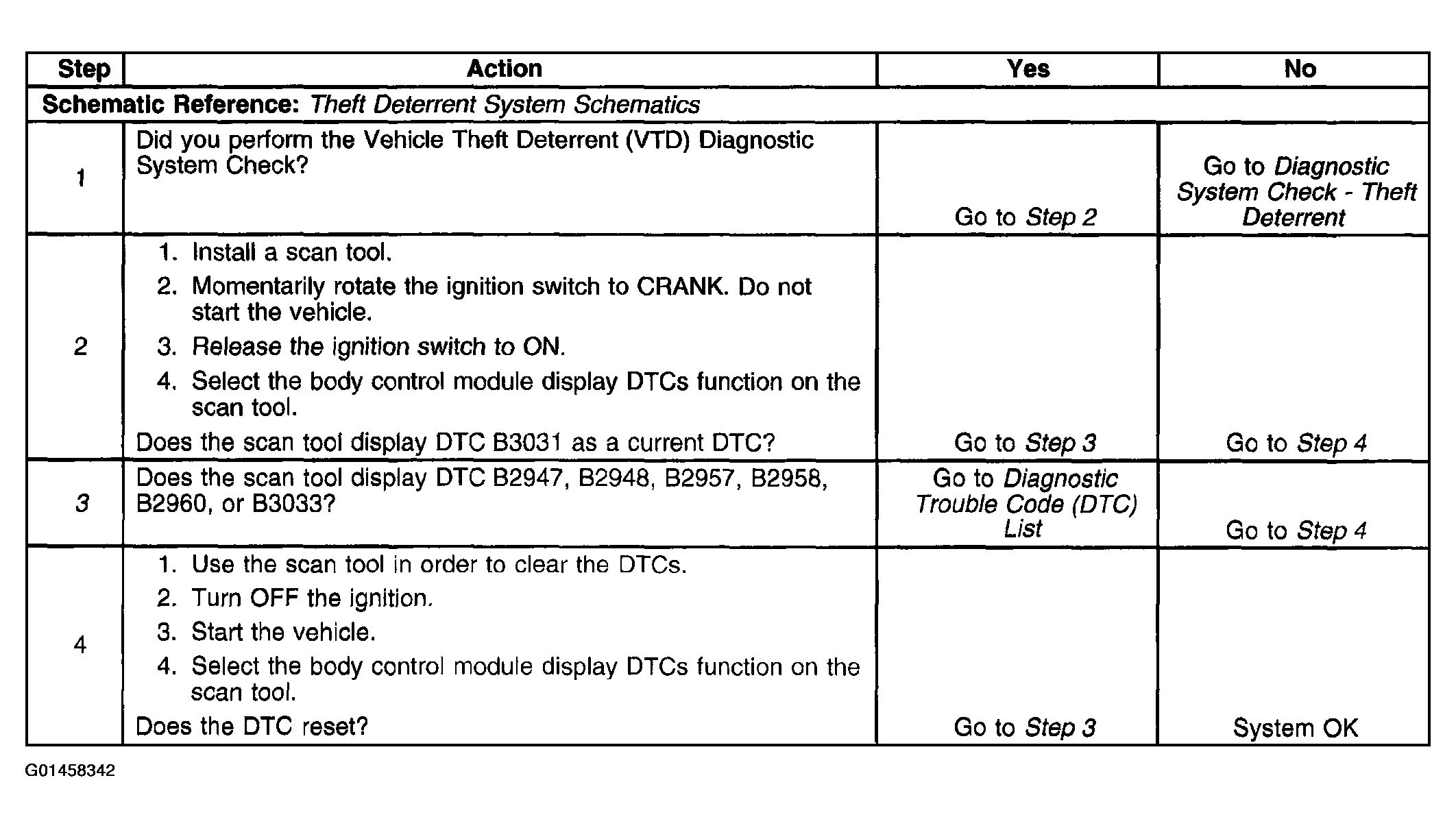

Fig 1: Diagnostic System Check - DTC B3031
G01458342Courtesy of GENERAL MOTORS CORP.
