Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. Tests for proper operation of the circuit in the high voltage range.
  2. Tests for proper operation of the circuit in the low voltage range.
  3. Tests for high resistance or an open in the 12V reference circuit.
  4. Tests for a short to voltage, a high resistance, or an open in the signal circuit.
  5. Tests for high resistance or an open in the ground circuit.

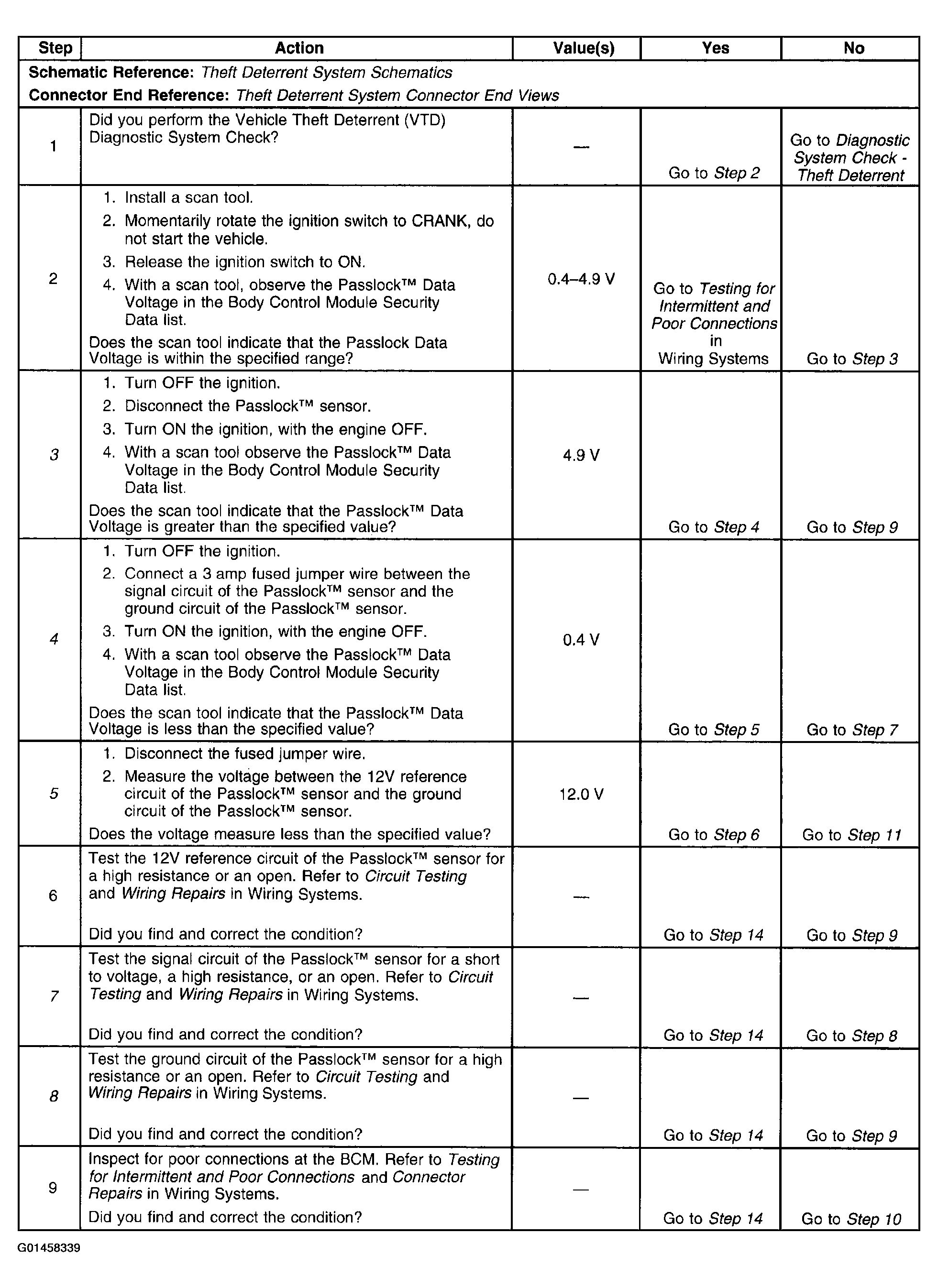

Fig 1: Diagnostic System Check - DTC B2958 (1 Of 2)
G01458339Courtesy of GENERAL MOTORS CORP.

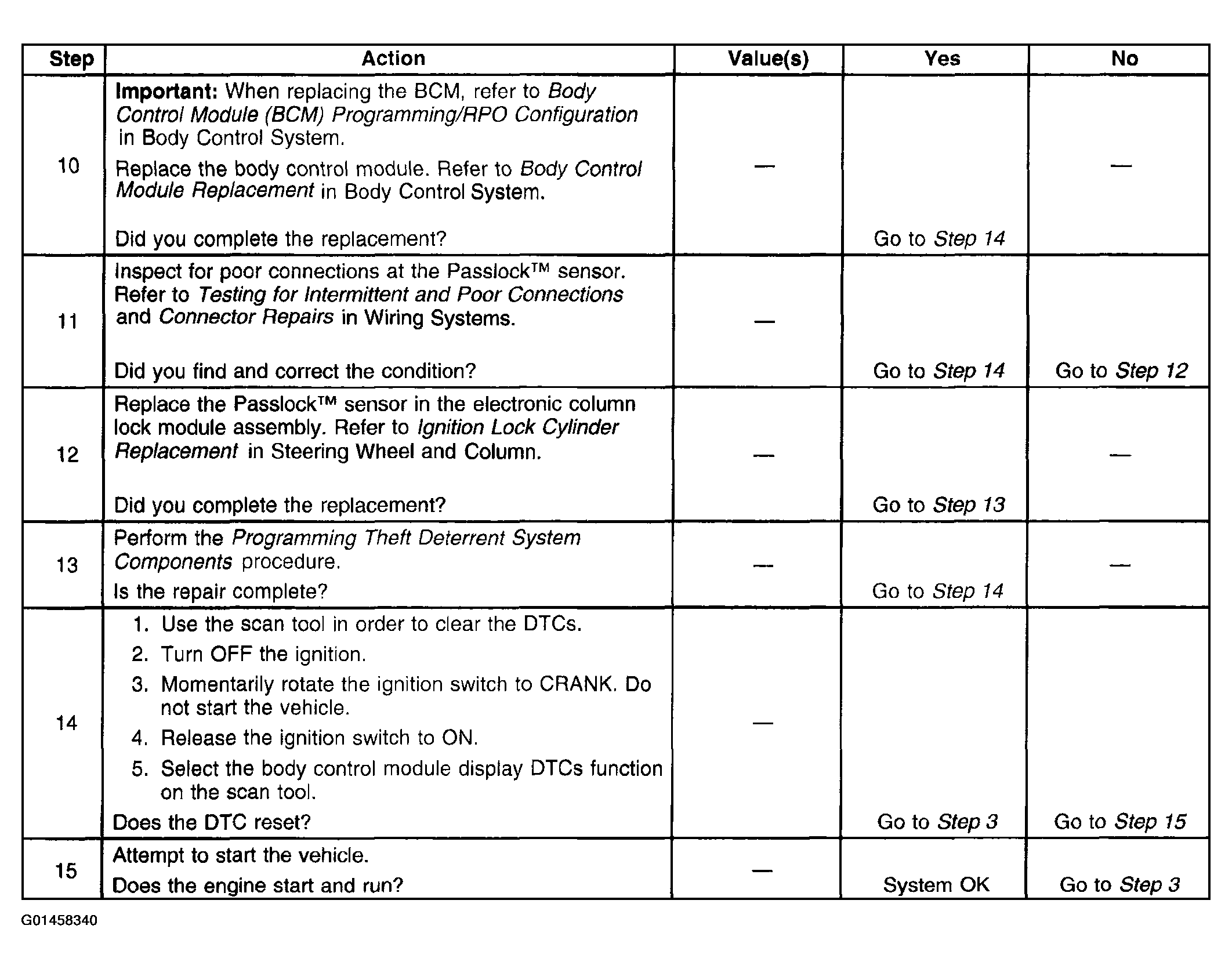

Fig 2: Diagnostic System Check - DTC B2958 (2 Of 2)
G01458340Courtesy of GENERAL MOTORS CORP.
