Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Disconnect the horn electrical connector.
  3. Remove the horn bolt. Reposition the park/turn signal lamp wiring harness for additional clearance.
  4. Remove the horn (2) from the radiator support (1).

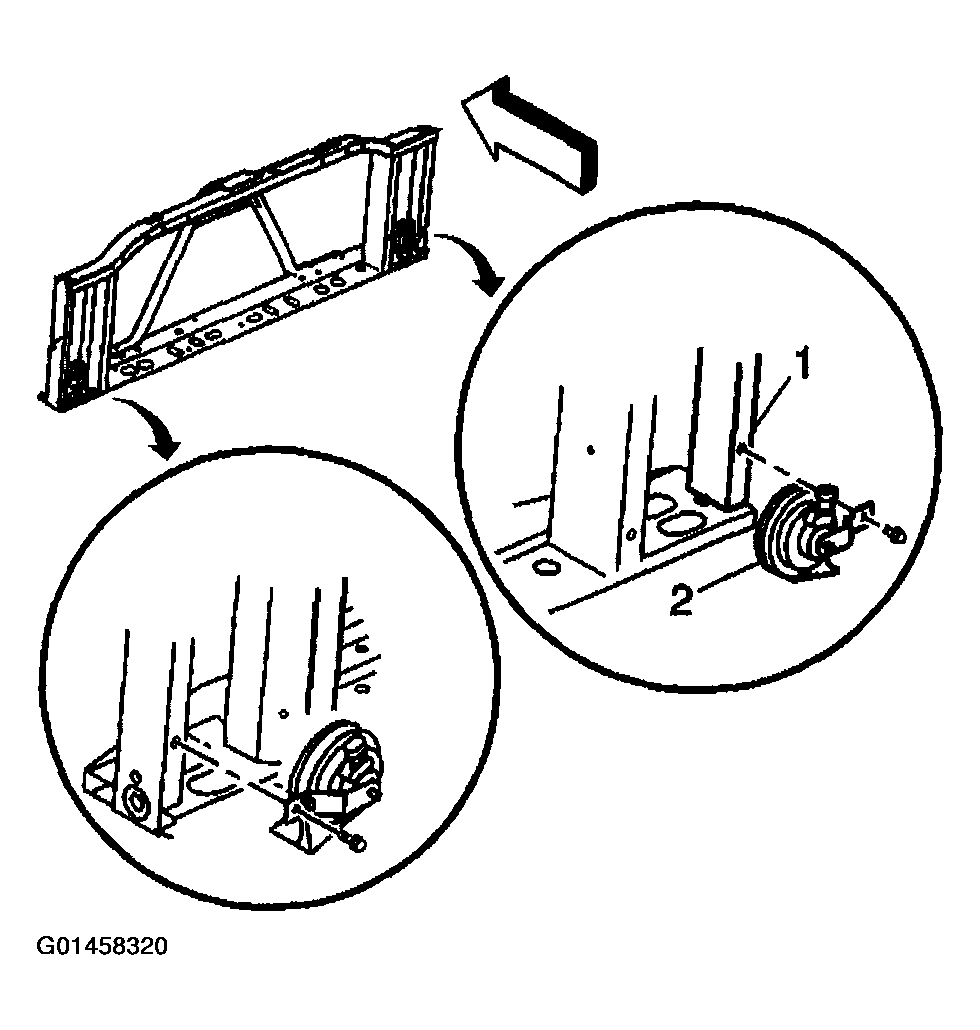

    5. Fig 1: Removing Horn From Radiator Support
    G01458320Courtesy of GENERAL MOTORS CORP.
