Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Remove the battery. Refer to BATTERY REPLACEMENT in Engine Electrical.
  3. Remove the battery tray. Refer to BATTERY TRAY REPLACEMENT in Engine Electrical.
  4. Remove the washer reservoir. Refer to WASHER PUMP/RESERVOIR REPLACEMENT in Wipers/Washer Systems.

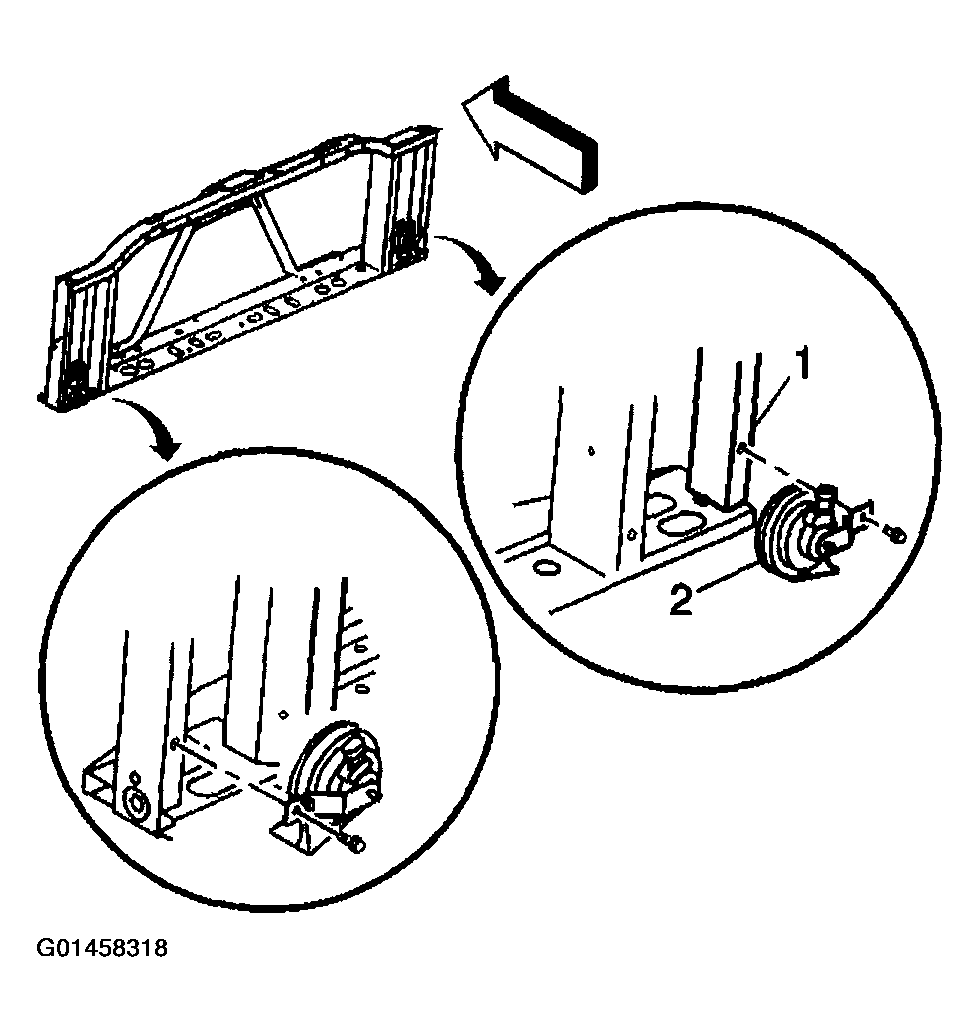

    5. Fig 1: Removing Horn From Radiator Support
    G01458318Courtesy of GENERAL MOTORS CORP.
  5. Raise and suitably support the vehicle.
  6. Disconnect the horn electrical connector.
  7. Remove the horn bolt. Reposition the park/turn signal lamp wiring harness for additional clearance.
  8. Remove the horn (2) from the radiator support (1).
