Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Ensure that the black side of the horn is facing forward on the vehicle.

Install the horn (2) to the radiator support (1).
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the horn bolt.
Tighten
1. Tighten the horn bolts to 9 N.m (80 lb in).

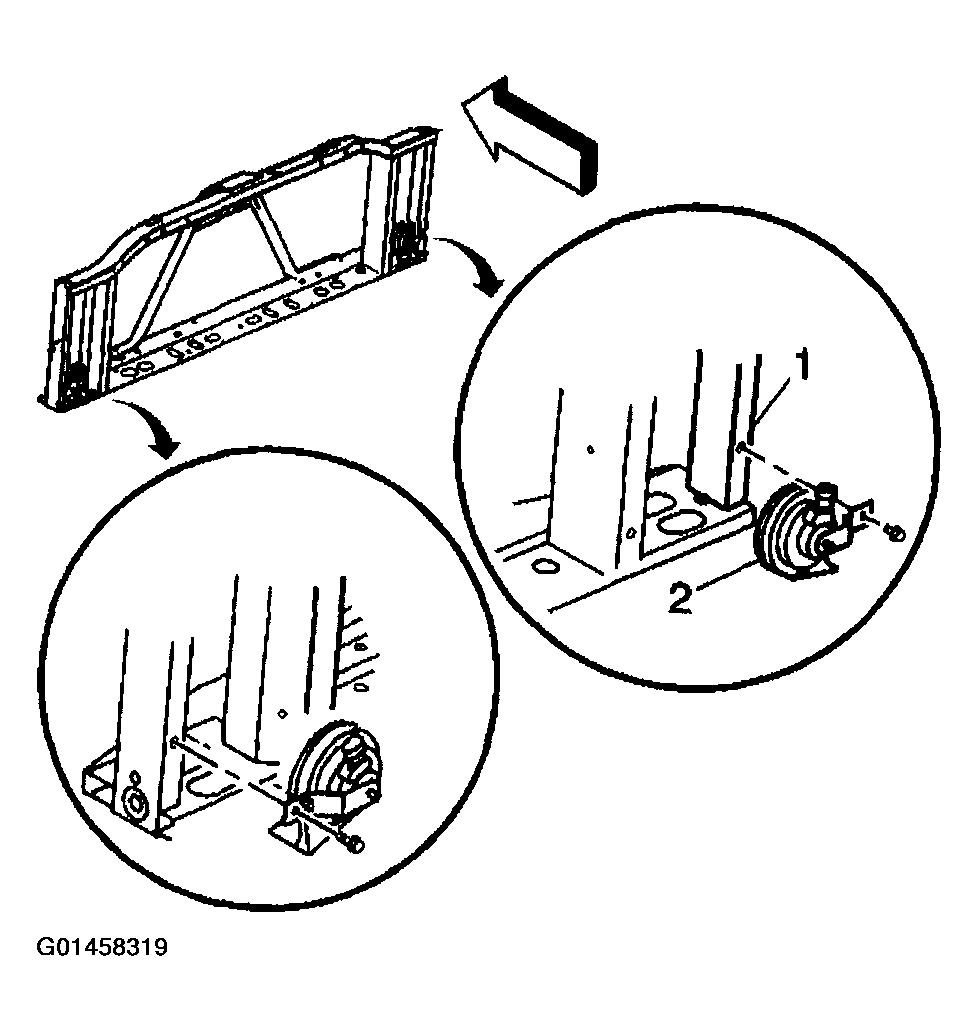

Fig 1: Installing Horn To Radiator Support

Courtesy of GENERAL MOTORS CORP.

Connect the horn electrical connector.
Lower the vehicle.
Install the washer reservoir. Refer to WASHER PUMP/RESERVOIR REPLACEMENT in Wipers/Washer Systems.
Install the battery tray. Refer to BATTERY TRAY REPLACEMENT in Engine Electrical.
Install the battery. Refer to BATTERY REPLACEMENT in Engine Electrical.
Close the hood.
