Scan Tool Data List

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The Horns Scan Tool Data List contains all horn related parameters that are available on the scan tool. The parameters in the list are arranged in alphabetical order. The column, "Data List," indicates the location of the parameter within the scan tool menu selections. Use the Horns Scan Tool Data List as directed by a diagnostic table or in order to supplement the diagnostic procedures. Begin all of the diagnostic procedures with DIAGNOSTIC SYSTEM CHECK-HORNS .

Use the Scan Tool Data List only after the following is determined:

There is no published DTC procedure nor published symptom procedure for the customer concern.
The DTC or symptom diagnostic procedure indicated by the diagnostic system check does not resolve the customer concern.

The Typical Data Values are obtained from a properly operating vehicle under the conditions specified in the first row of the Scan Tool Data List table.

Comparison of the parameter values from the suspect vehicle with the Typical Data Values may reveal the source of the customer concern.

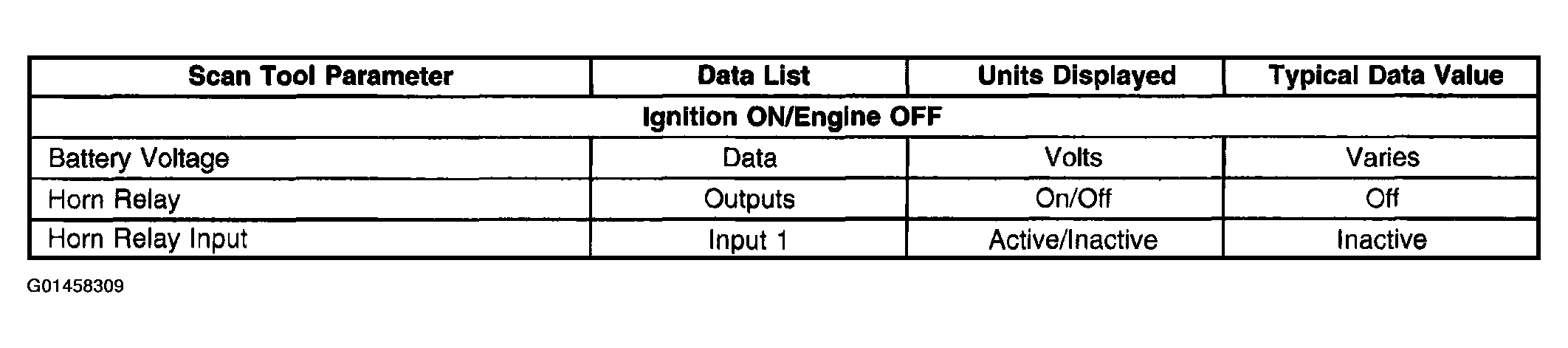

Fig 1: Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.
